RH Side

Install in the reverse order of removal.

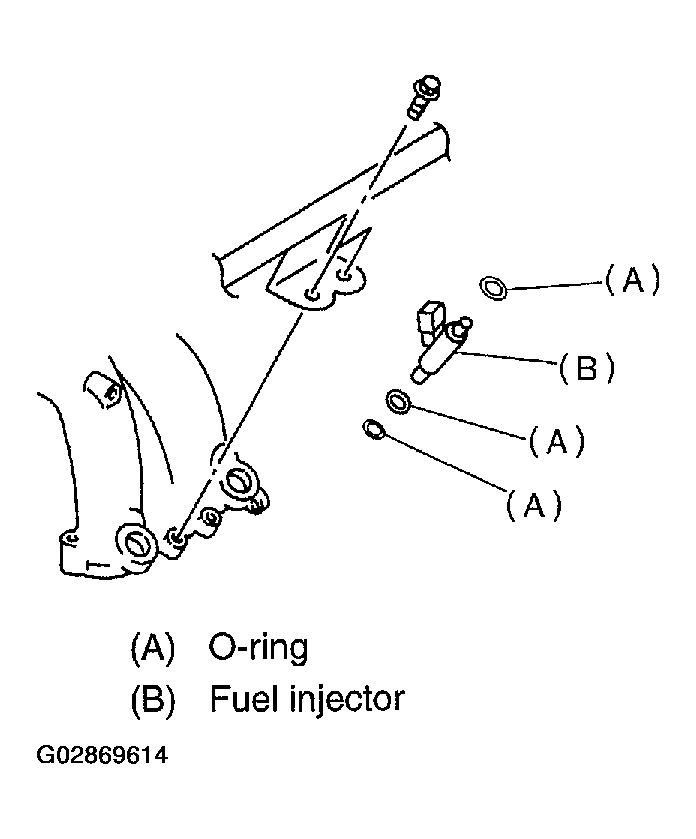

Fig 1: Replacing O-Rings

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:  4.9 N.m (0.5 kgf-m, 3.6 ft-lb)

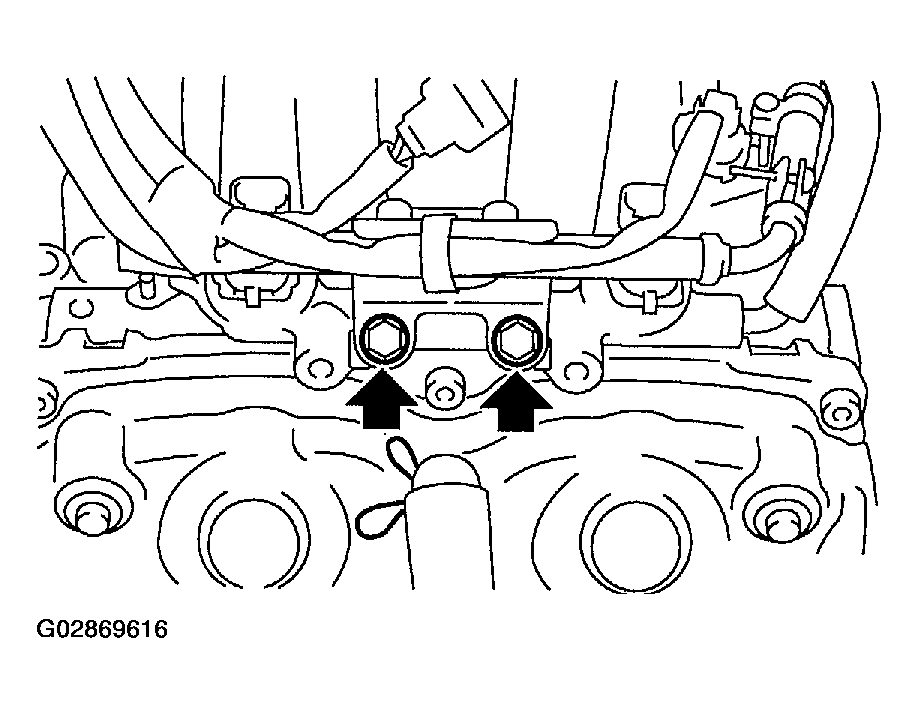

Fig 2: Installing The Bolt Which Holds The Injector Pipe To The Intake Manifold (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:  19 N.m (1.9 kgf-m, 13.7 ft-lb)

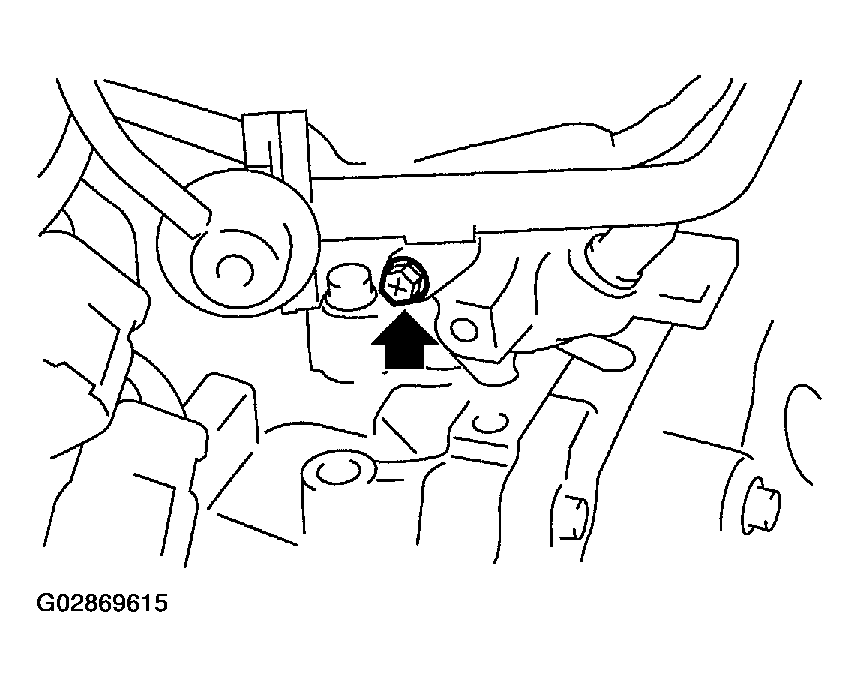

Fig 3: Installing The Bolt Which Holds The Injector Pipe To The Intake Manifold (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:  19 N.m (1.9 kgf-m, 13.7 ft-lb)

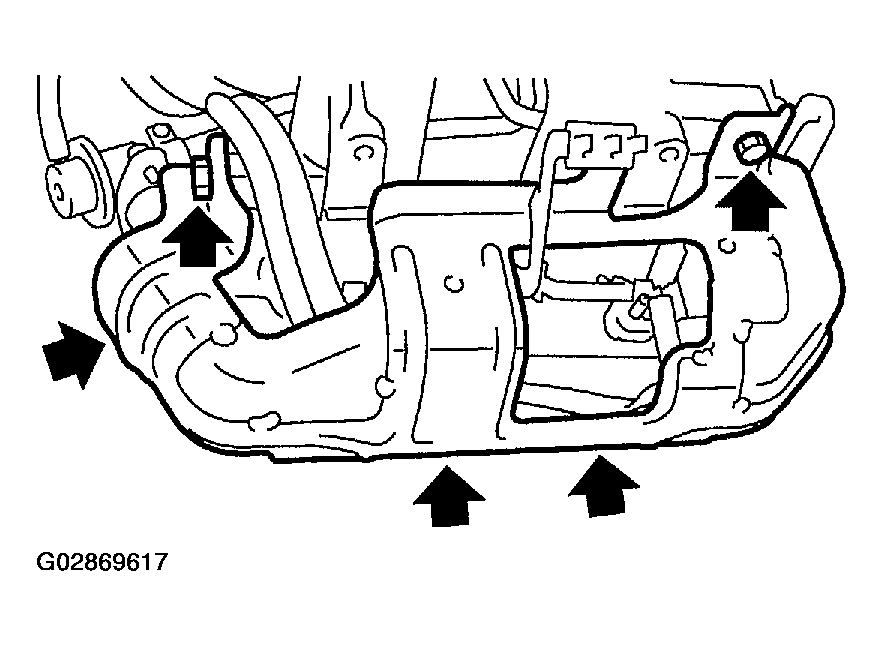

Fig 4: Installing The Fuel Pipe Protector RH

Courtesy of SUBARU OF AMERICA, INC.
