Engine Coolant Temperature Sensor: Removal

  1. Disconnect the battery ground cable.

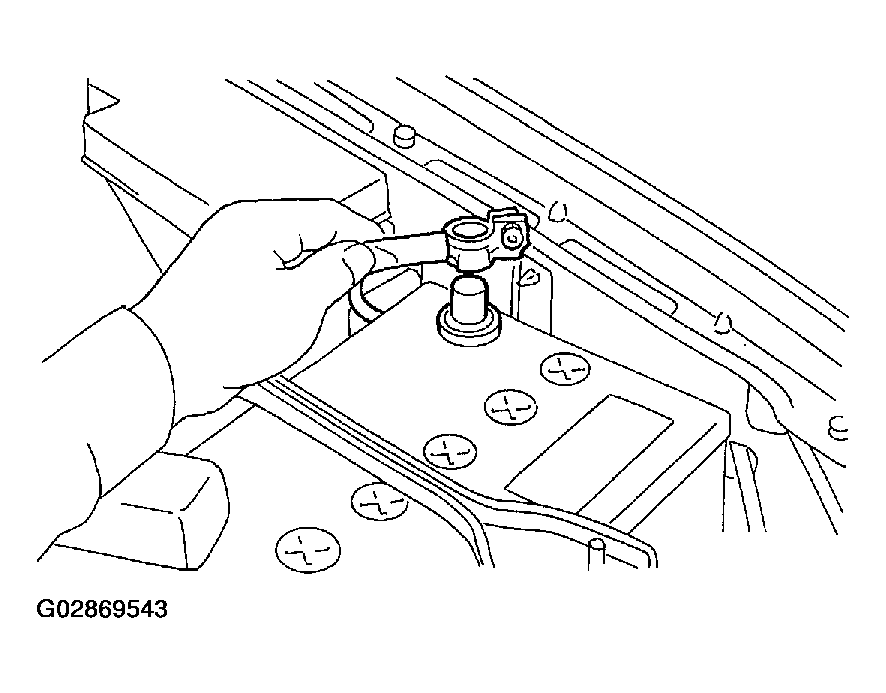

    Fig 1: Disconnecting The Battery Ground Cable
    G02869543Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the air intake duct and air cleaner assembly. Refer to AIR CLEANER CASE .
  3. Disconnect the connector from the engine coolant temperature sensor.

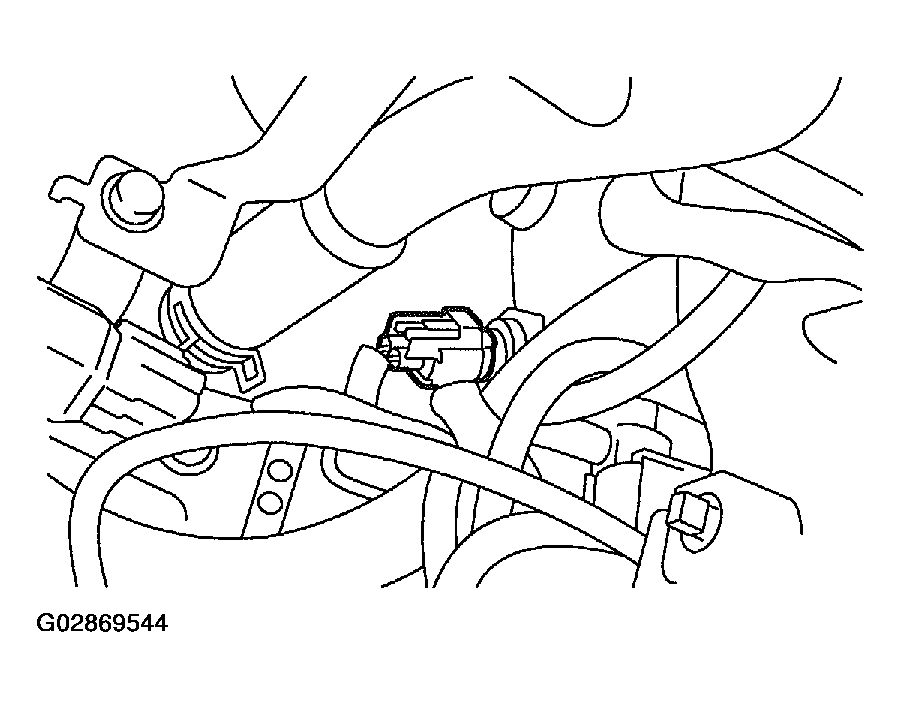

    Fig 2: Disconnecting The Connector From The Engine Coolant Temperature Sensor
    G02869544Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the engine coolant temperature sensor.
