Atmospheric Pressure Sensor: Removal

  1. Disconnect the battery ground cable.

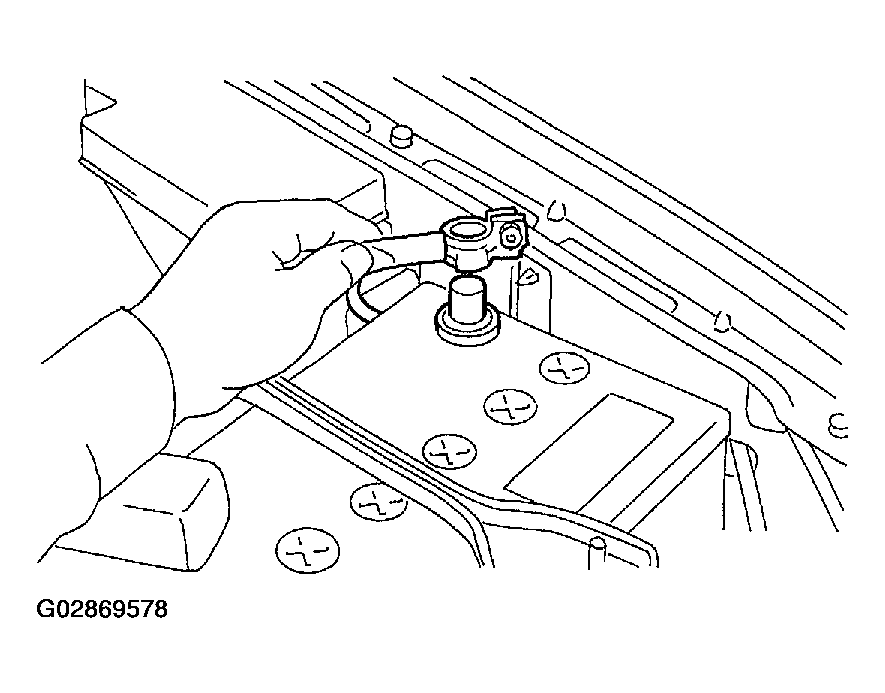

    Fig 1: Disconnecting The Battery Ground Cable
    G02869578Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the connector from the atmospheric pressure sensor.
  3. Remove the atmospheric pressure sensor from the bracket.

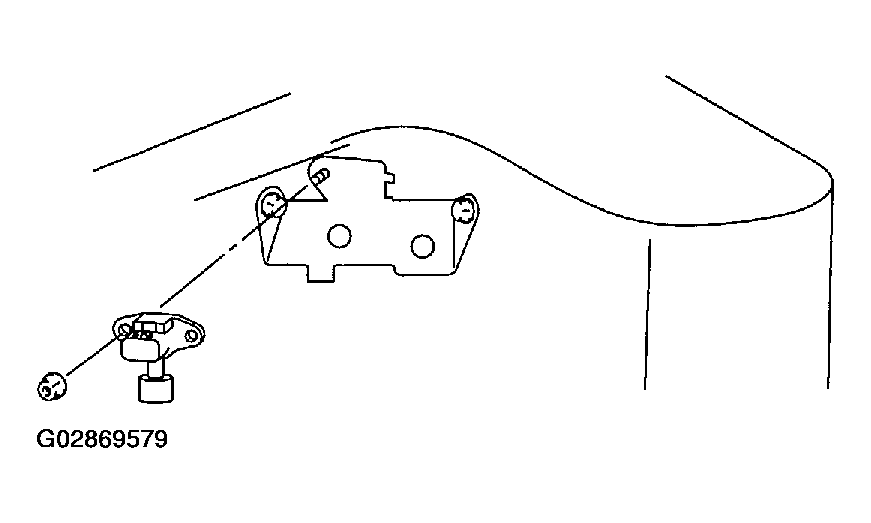

    Fig 2: Removing The Atmospheric Pressure Sensor
    G02869579Courtesy of SUBARU OF AMERICA, INC.
