Console Box: Removal

  1. Disconnect the ground terminal from battery.
  2. Remove the console cover.
    Fig 1: Removing Console Cover
    G02868474Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the shift knob (MT model) and front cover.

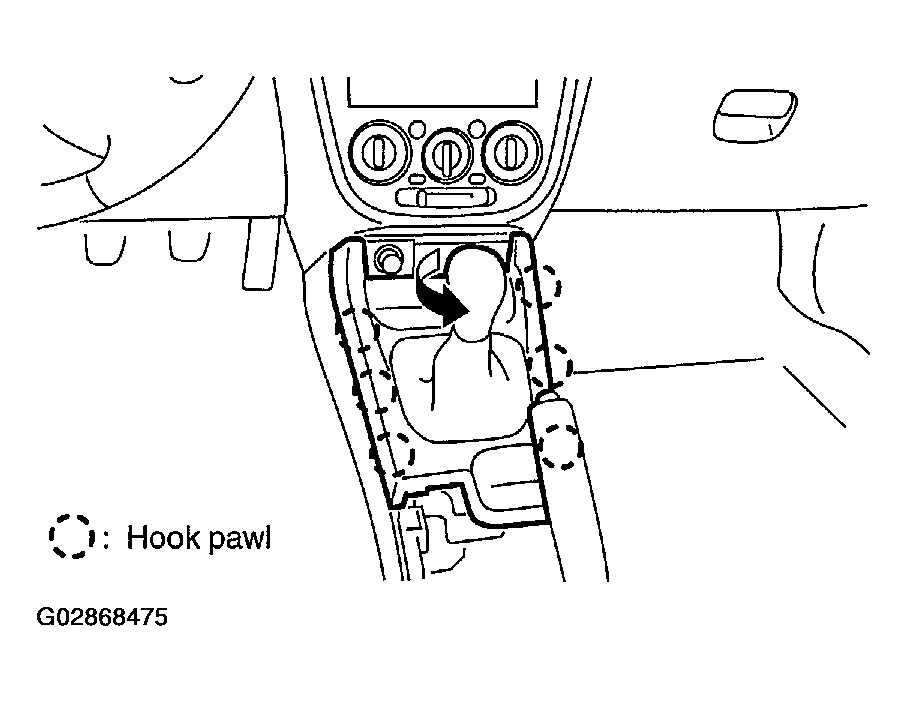

    Fig 2: Removing Shift Knob And Front Cover
    G02868475Courtesy of SUBARU OF AMERICA, INC.
  4. Loosen the screws to remove the console box.

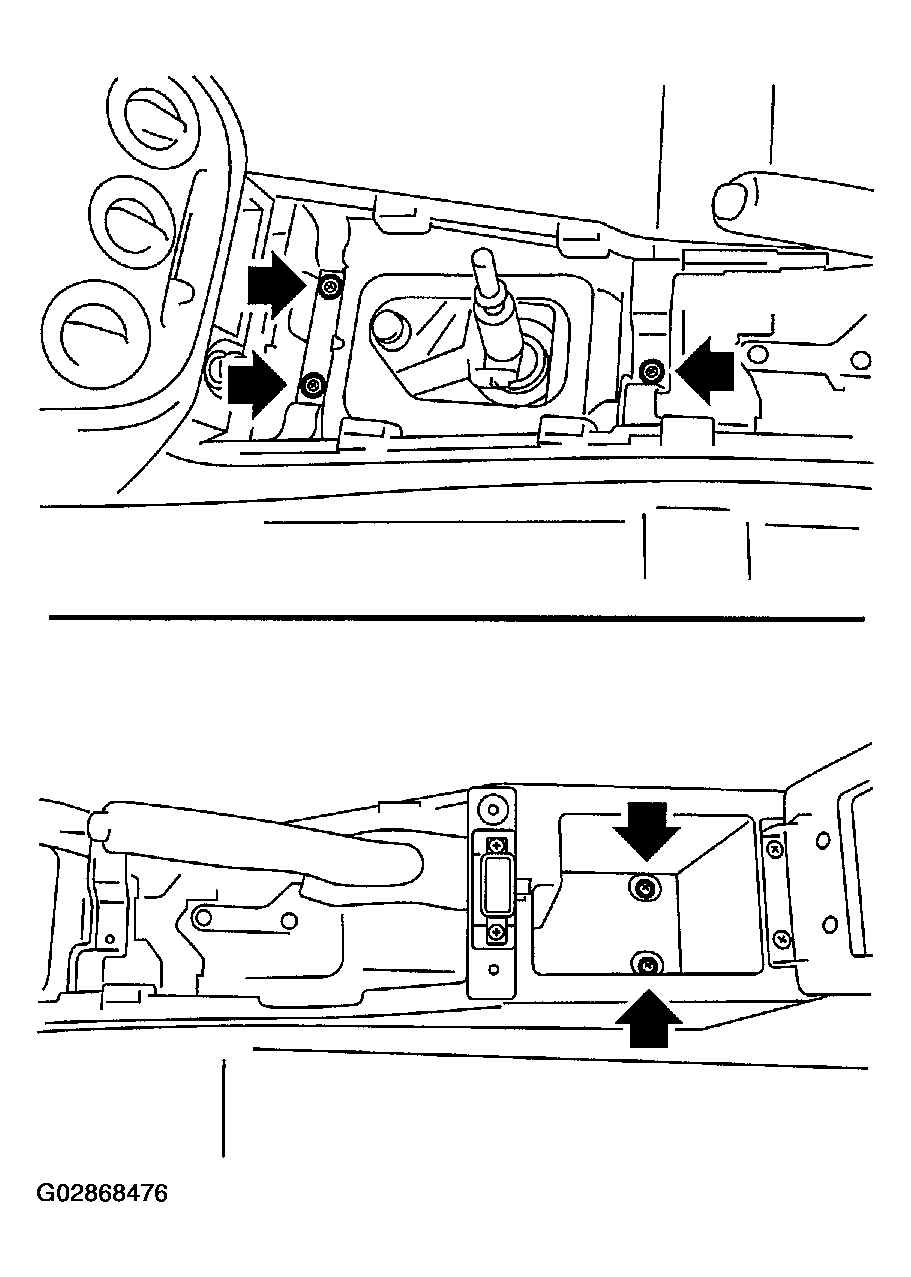

    Fig 3: Loosening Screws
    G02868476Courtesy of SUBARU OF AMERICA, INC.
