MT Gear Shift Lever: Removal

Set the vehicle on the lift.
Remove the gear shift knob.
Disconnect the ground terminal from battery.
Remove the console box. < Ref. to REMOVAL , Console Box. >
Remove the boot plate from body.

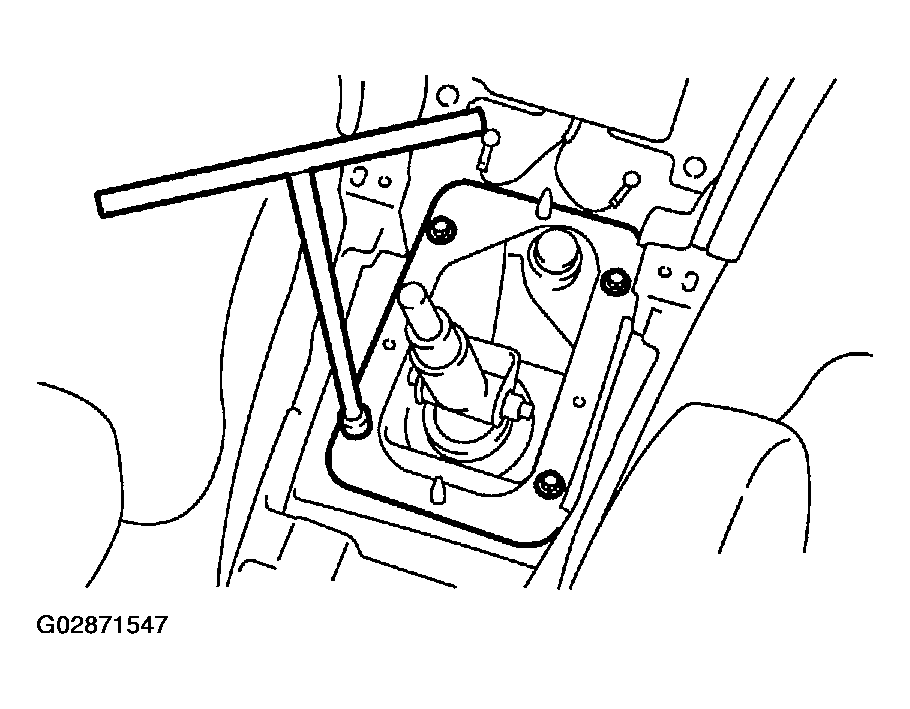

Fig 1: Removing Boot Plate From Body
Courtesy of SUBARU OF AMERICA, INC.
Lift-up the vehicle.
Remove the rear exhaust pipe and muffler.
Remove the heat shield cover. (If equipped)
Remove the stay from transmission bracket.

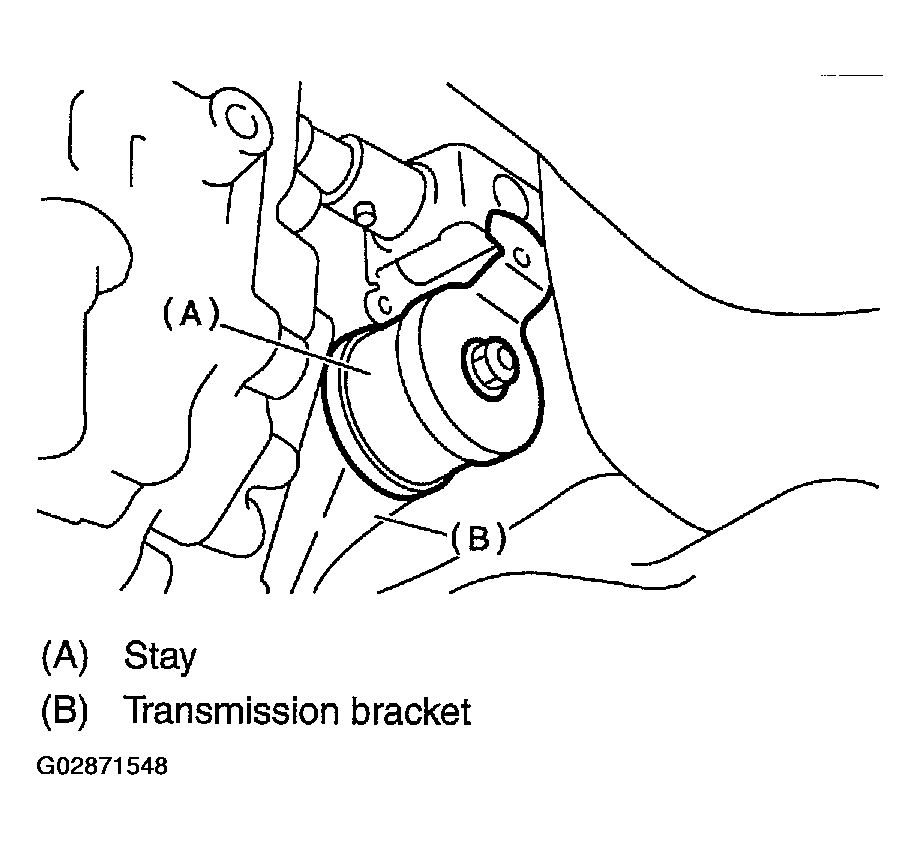

Fig 2: Removing Stay From Transmission Bracket
Courtesy of SUBARU OF AMERICA, INC.
Remove the rod from joint.

Fig 3: Removing Rod From Joint
Courtesy of SUBARU OF AMERICA, INC.
Remove the cushion rubber from body.

Fig 4: Removing Cushion Rubber From Body
Courtesy of SUBARU OF AMERICA, INC.
Remove the joint and then extract the spring pin.

Fig 5: Removing Joint And Extracting Spring Pin
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Remove the gear shift lever.

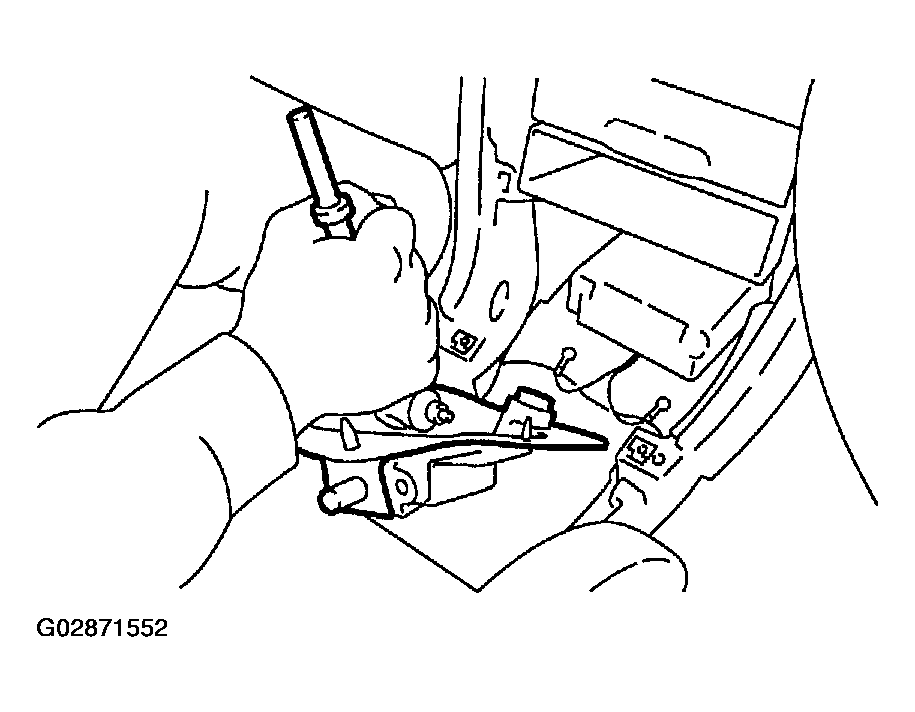

Fig 6: Removing Gear Shift Lever
Courtesy of SUBARU OF AMERICA, INC.
