MT Gear Shift Lever: Disassembly

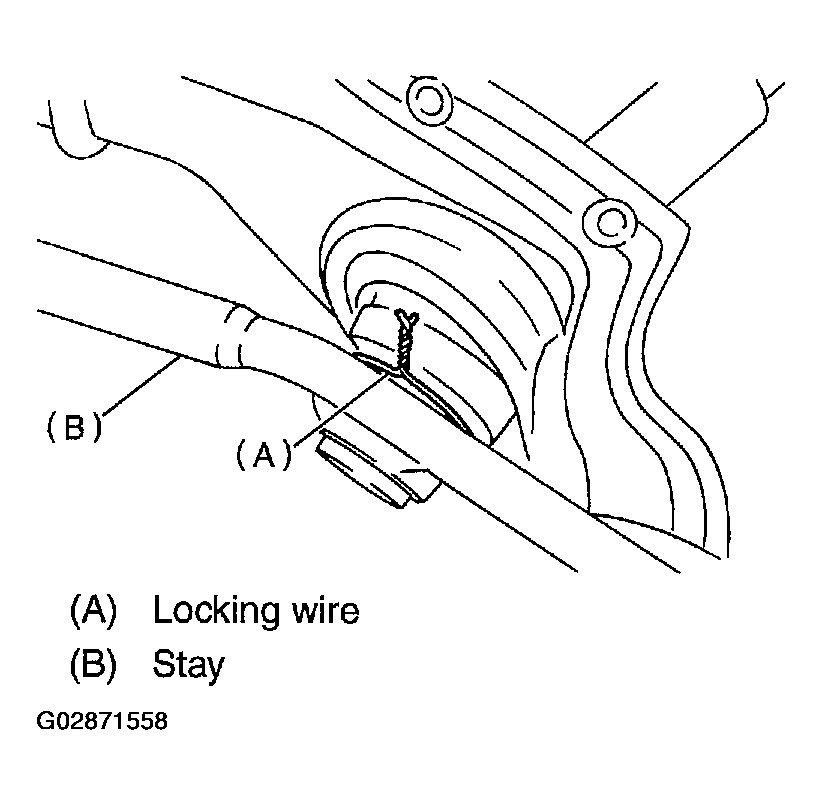

Disassemble the locking wire.

Fig 1: Disassembling Locking Wire
Courtesy of SUBARU OF AMERICA, INC.
Remove the rod from gear shift lever.

Fig 2: Removing Rod From Gear Shift Lever
Courtesy of SUBARU OF AMERICA, INC.

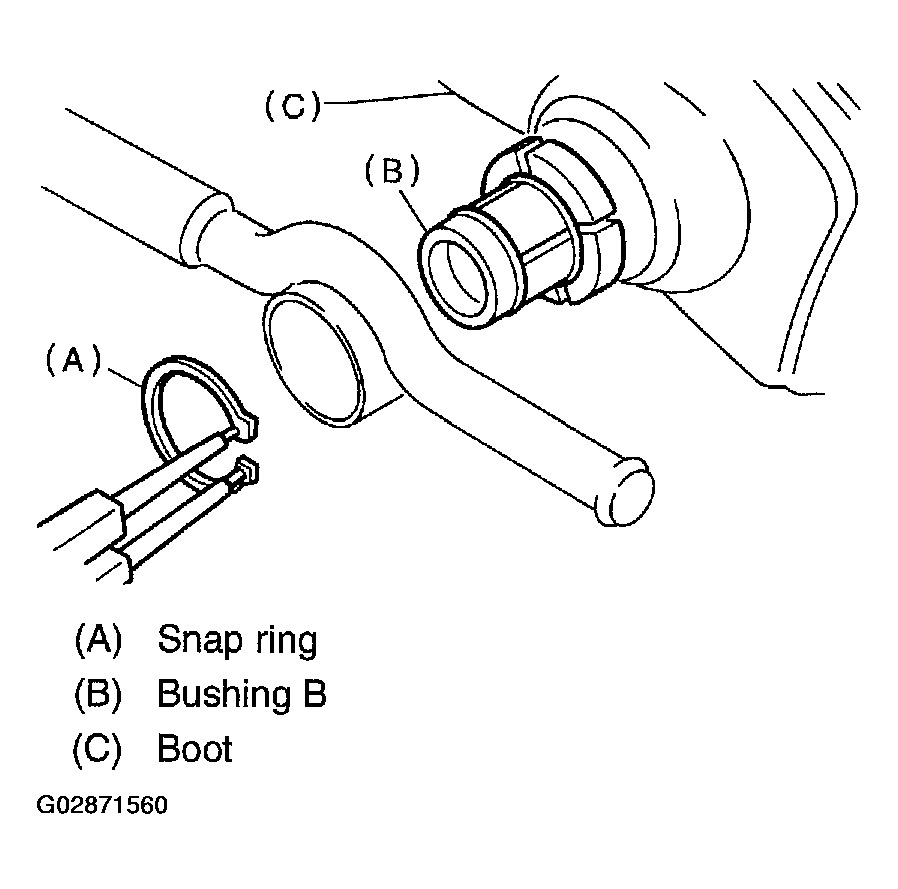

Remove the snap ring from bush B, then disconnect the stay.

Fig 3: Removing Snap Ring From Bush B, Disconnecting Stay
Courtesy of SUBARU OF AMERICA, INC.
Remove the boot from gear shift lever.
Remove the bush and cushion rubber from stay.

Fig 4: Removing Bush And Cushion Rubber From Stay
Courtesy of SUBARU OF AMERICA, INC.
Remove the O-ring, then disconnect the bush D.

Fig 5: Removing O-Ring, And Disconnecting Bush D
Courtesy of SUBARU OF AMERICA, INC.
Draw out the spring pin, then remove the bush C from gear shift lever.

Fig 6: Removing Bush C From Gear Shift Lever
Courtesy of SUBARU OF AMERICA, INC.
