Select Lever Cannot Be Shift Locked Wiring Diagram:

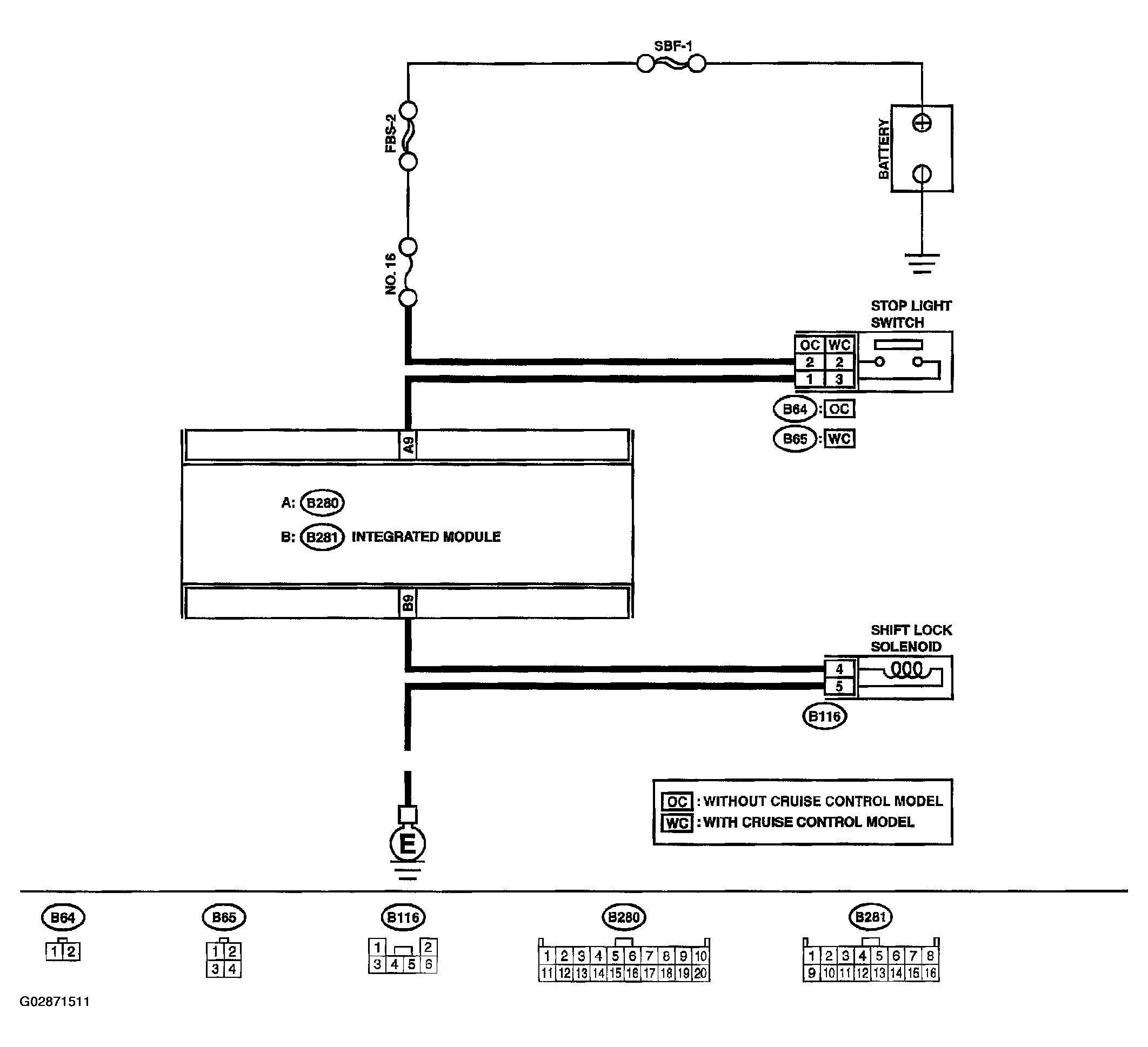

Fig 1: Select Lever Cannot Be Shift Locked Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

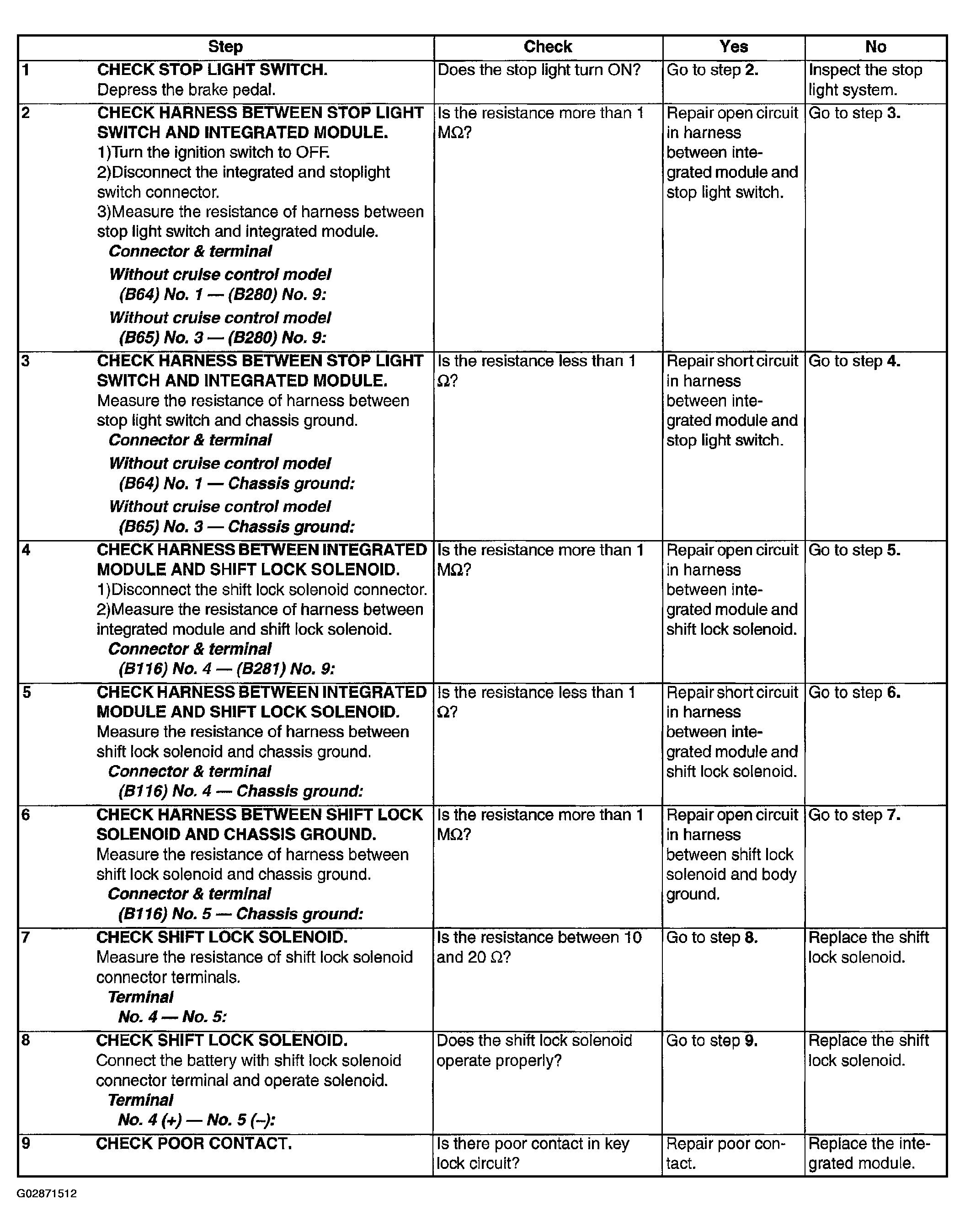

Fig 2: Inspection Table - Select Lever Cannot Be Shift Locked

Courtesy of SUBARU OF AMERICA, INC.
