Key Interlock Does Not Lock Or Release Wiring Diagram:

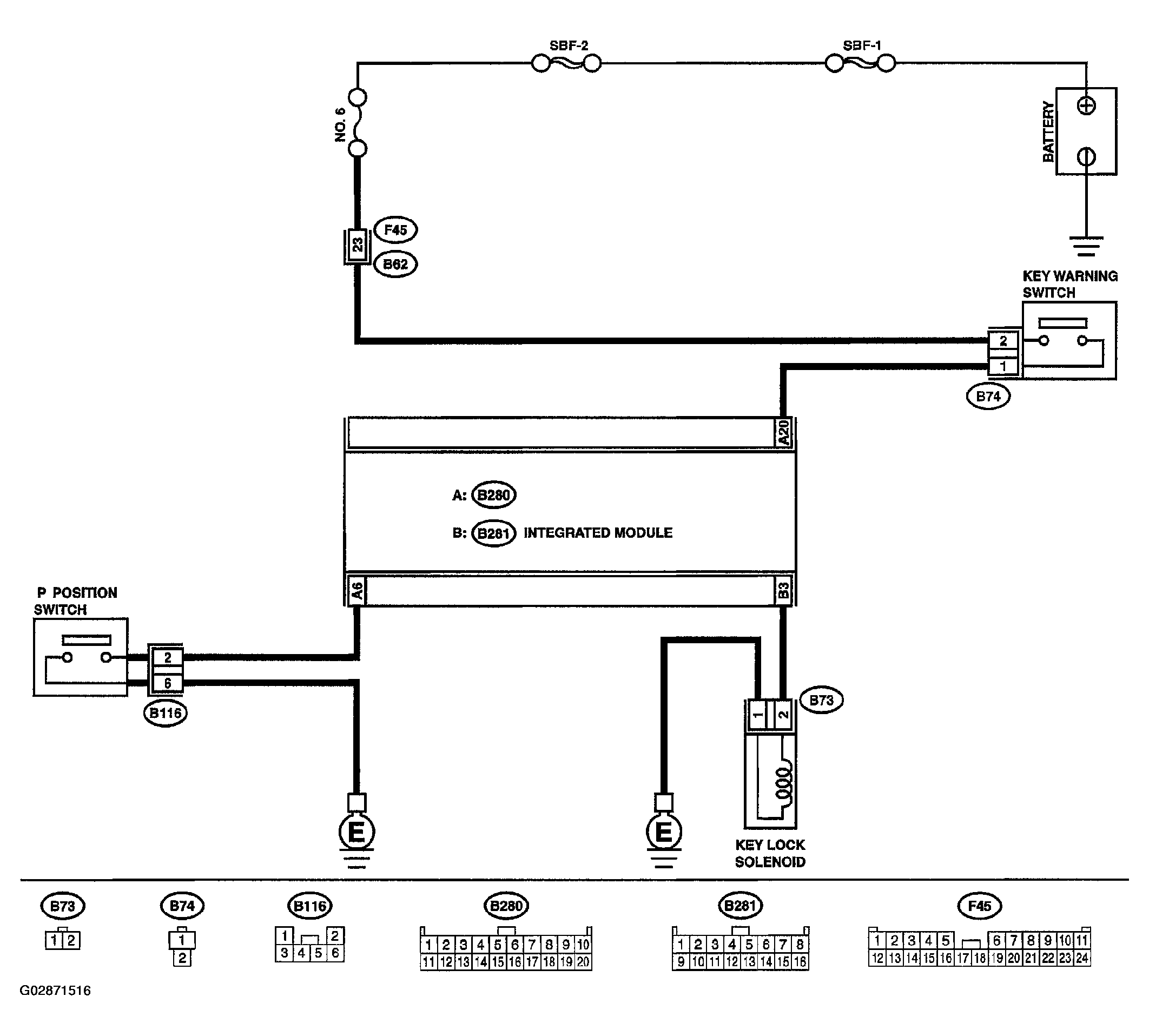

Fig 1: Key Interlock Does Not Lock Or Release Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

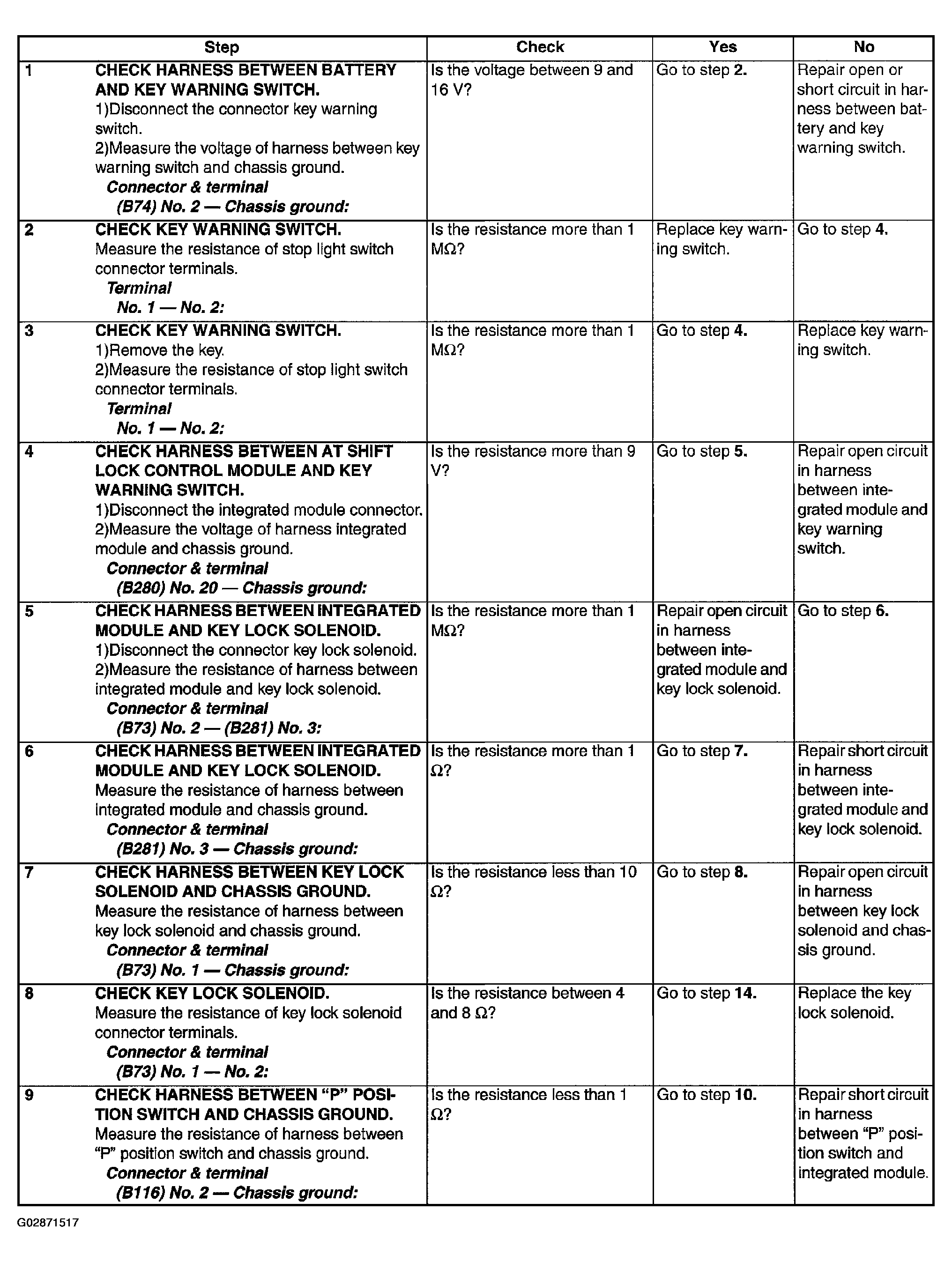

Fig 2: Inspection Table - Key Interlock Does Not Lock Or Release (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

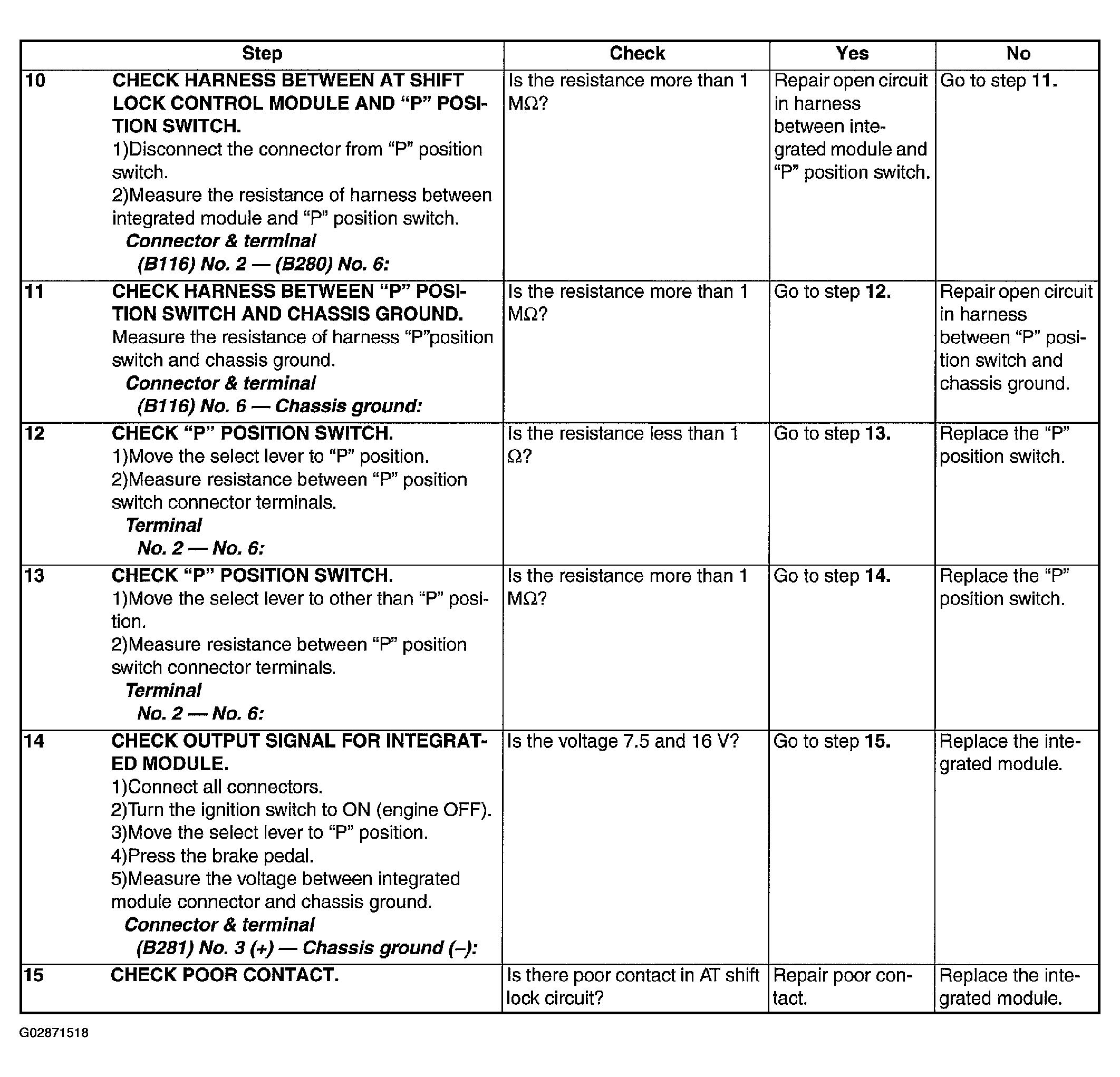

Fig 3: Inspection Table - Key Interlock Does Not Lock Or Release (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
