AWD Transfer Clutch Control (Non-Turbo Model)

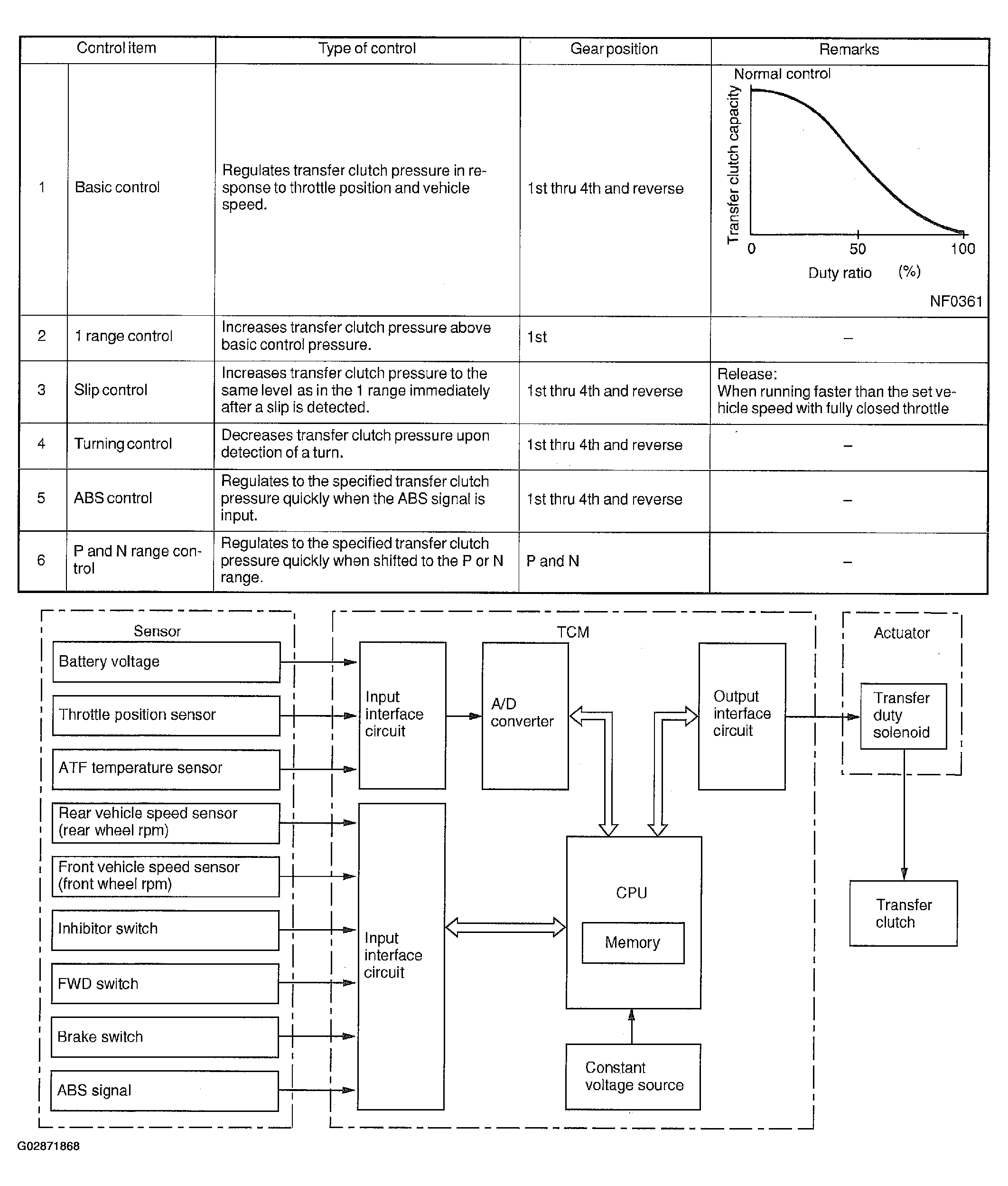

Fig 1: AWD Transfer Clutch Control (Non-Turbo Model) Chart

G02871868

Courtesy of SUBARU OF AMERICA, INC.
