Turbo Model

This vehicle speed sensor (output shaft speed sensor) is externally mounted on the extension case. It detects the rear wheel speed in terms of the peripheral speed of the rear drive shaft and sends sine wave signals (22 pulses per rotation) to the TCM.

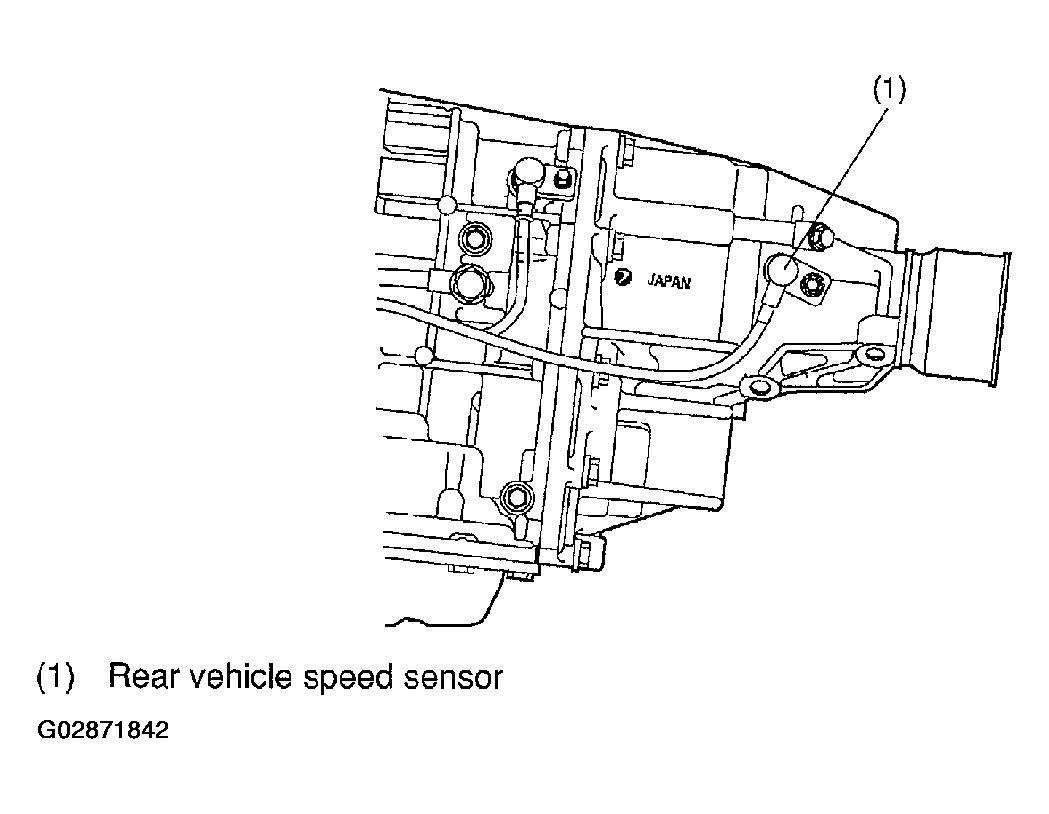

Fig 1: Identifying Rear Vehicle Speed Sensor (Turbo Model)

Courtesy of SUBARU OF AMERICA, INC.
