Front Wheel Toe-In: Adjustment

1. Loosen the left and right side steering tie-rods lock nuts.
2. Turn the left and right tie rods equal amounts until the toe-in is at the specification.

   Both the left and right tie-rods are right-hand threaded. To increase toe-in, turn both tie-rods clockwise equal amounts (as viewed from the inside of the vehicle).

3. Tighten tie-rod lock nut.

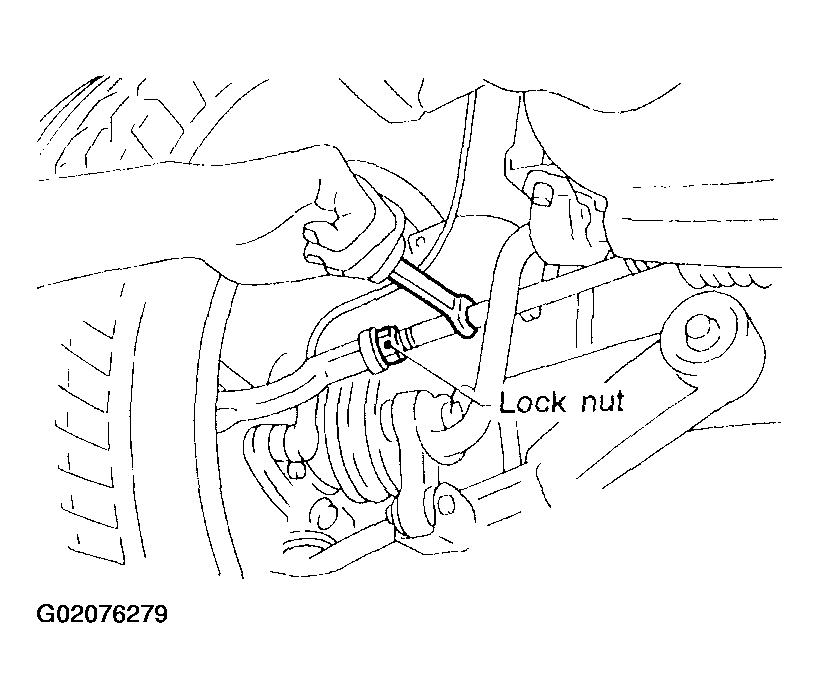

   Fig 1: Turning Left & Right Tie Rods Equal Amounts Until Toe-In Is At Specifications

   Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:  83 N.m (8.5 kgf-m, 61.5 ft-lb)
