Front Suspension

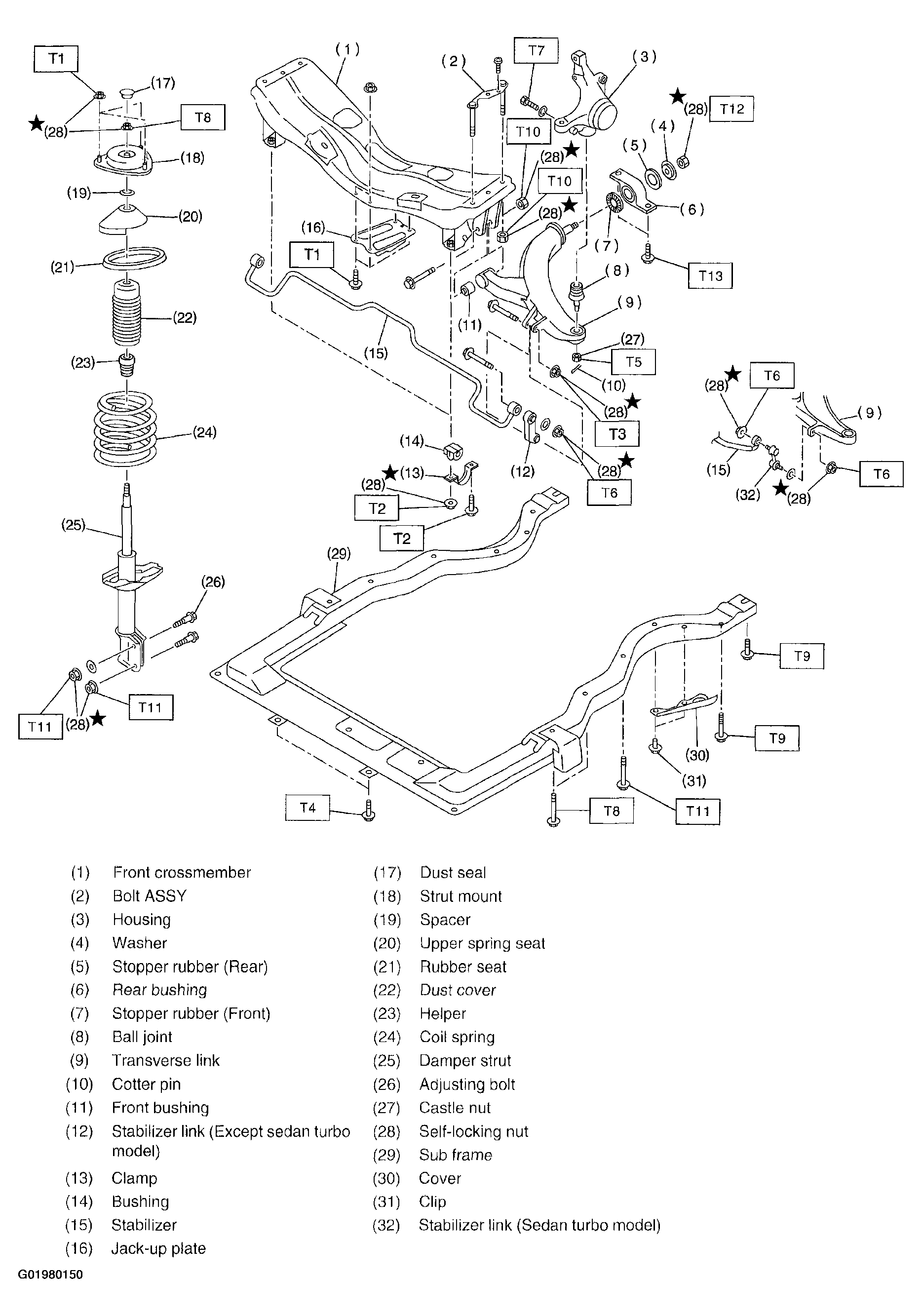

Fig 1: Identifying Front Suspension Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

1. T1:  20 (2.0, 14.5)
2. T2:  25 (2.5, 18.1)
3. T3:  30 (3.1, 22)
4. T4:  34 (3.5, 25)
5. T5:  40 (4.1, 30)
6. T6:  45 (4.6, 33)
7. T7:  50 (5.1, 37)
8. T8:  55 (5.6, 41)
9. T9:  71 (7.2, 52)
10. T10:  100 (10.2, 74)
11. T11:  175 (17.8, 129)
12. T12:  190 (19.4, 140)
13. T13:  250 (25.5, 184)
