Tilt Steering Column: Installation

  1. Set the grommet to the toe board.

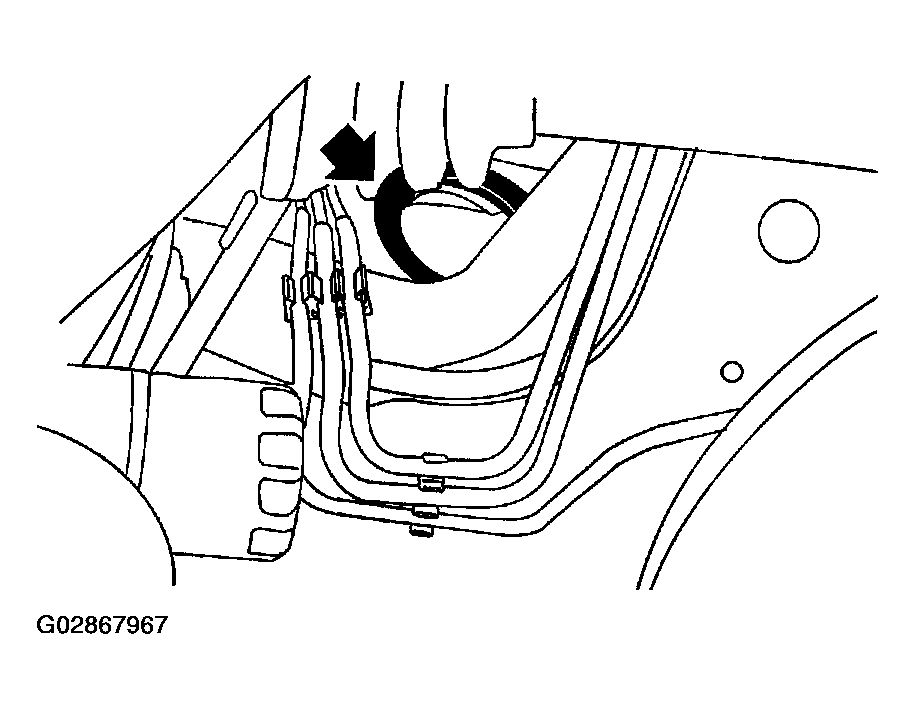

    Fig 1: Installing Grommet To Toe Board
    G02867967Courtesy of SUBARU OF AMERICA, INC.
  2. Insert the end of steering shaft into the toe board grommet.
  3. Tighten the steering shaft mounting bolts under instrument panel.

    Tightening torque: 25 N.m (2.5 kgf-m, 18.1 ft-lb)

  4. Install the knee bolster.

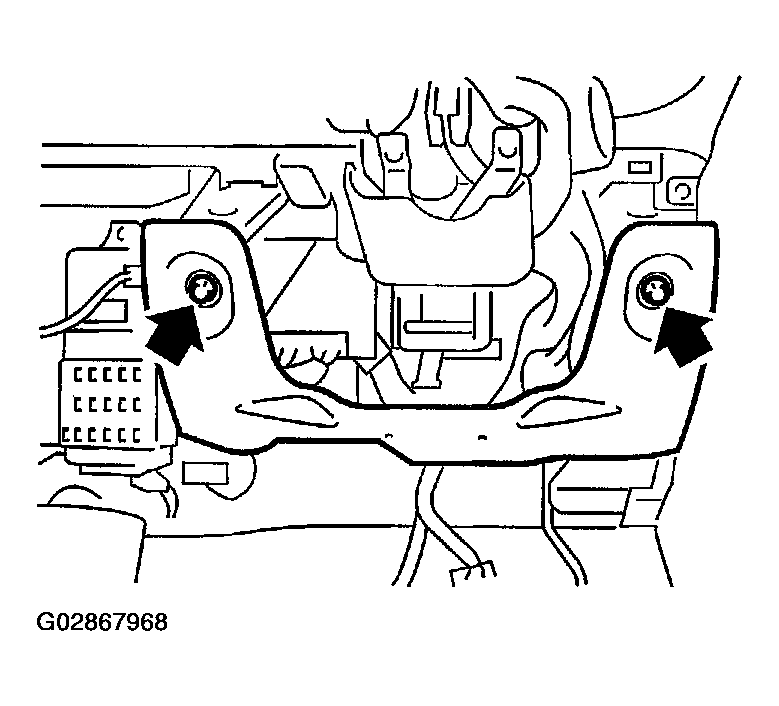

    Fig 2: Installing Knee Bolster
    G02867968Courtesy of SUBARU OF AMERICA, INC.
  5. Connect all connectors under instrument panel.
  6. Connect the airbag system connector at the harness spool.
    NOTE: Make sure to apply double lock.
  7. Install the lower column cover with tilt lever held in the lowered position.
  8. Install the universal joint. Refer to INSTALLATION , Universal Joint.
  9. Align the center of roll connector. Refer to CENTERING CLOCKSPRING .
    CAUTION: Ensure that front wheels are set in straight forward direction.
  10. Install the steering wheel. Refer to INSTALLATION , Steering Wheel.

    Set the steering wheel to neutral and install it onto steering shaft.

    CAUTION: Insert roll connector guide pin into guide hole on lower end of surface of steering wheel to prevent damage. Draw out airbag system connector, horn connector and cruise control connectors from guide hole of steering wheel lower end.
  11. Install the airbag module to the steering wheel.
    WARNING: Always refer to "Air Bag System" before performing the service operation. Refer to  DRIVER-SIDE AIR BAG MODULE  .
