Non-Turbo Model

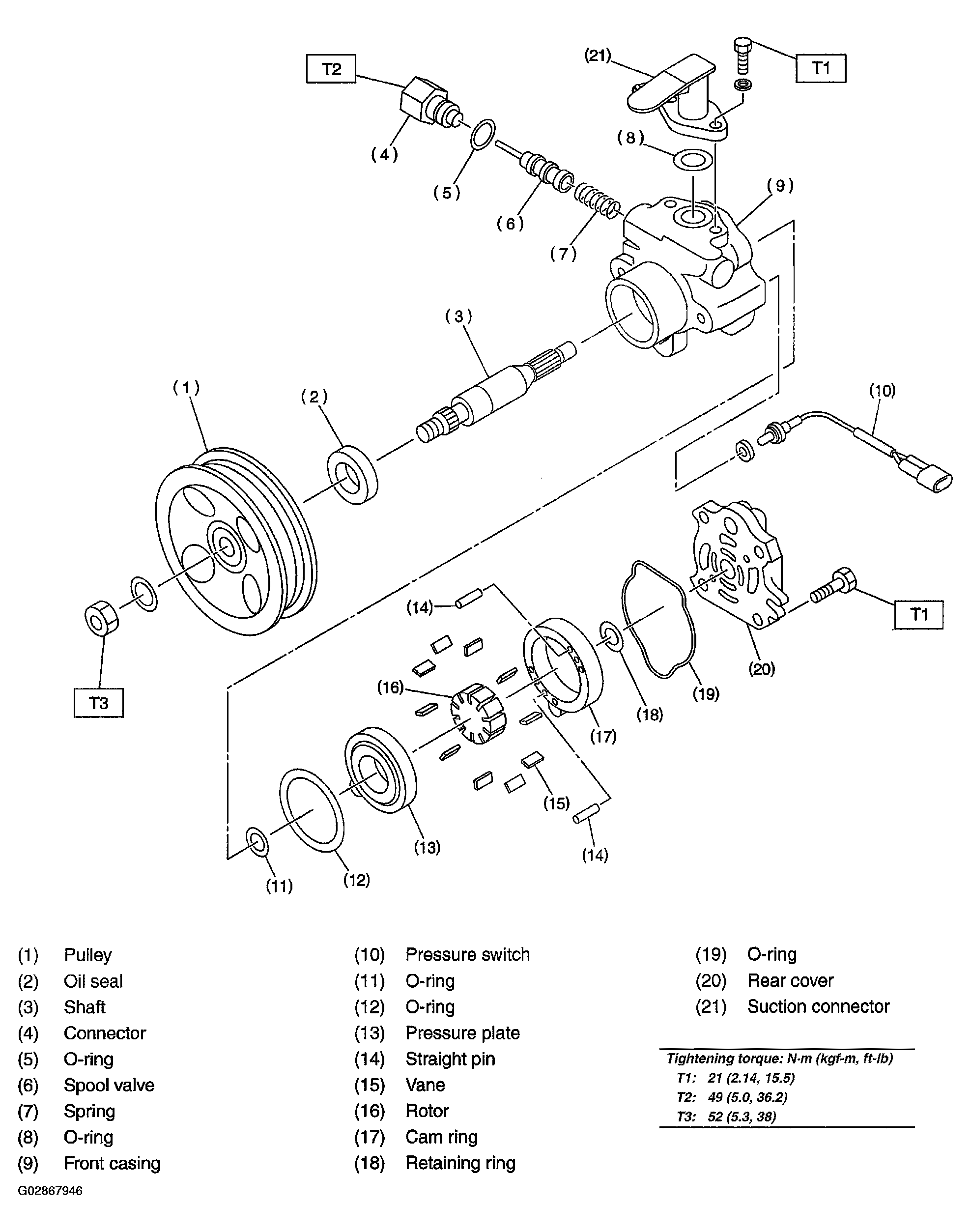

Fig 1: Identifying Oil Pump (Non-Turbo Model)

G02867946

Courtesy of SUBARU OF AMERICA, INC.
