Special Tools

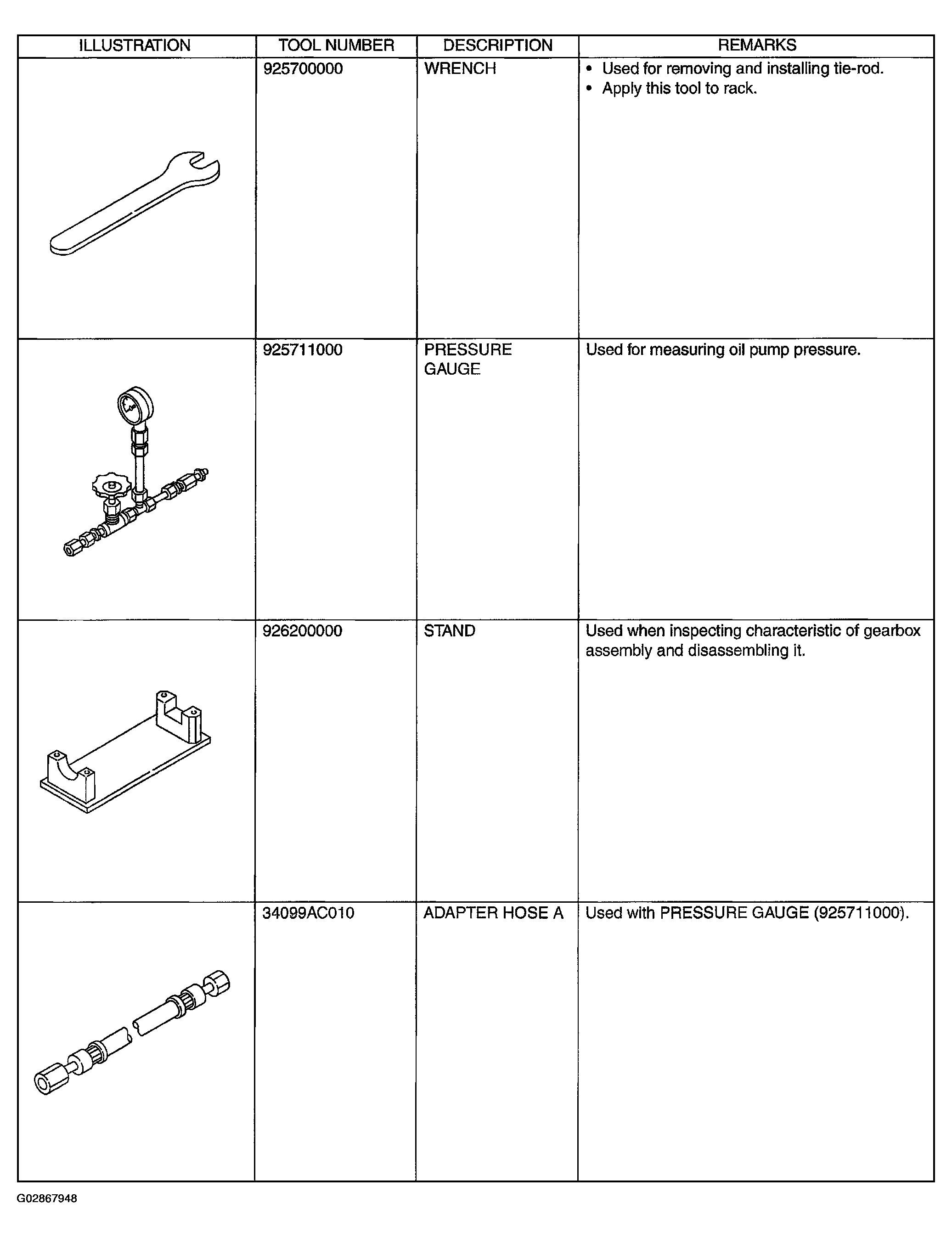

Fig 1: Identifying Special Tools (1 Of 7)

G02867948

Courtesy of SUBARU OF AMERICA, INC.

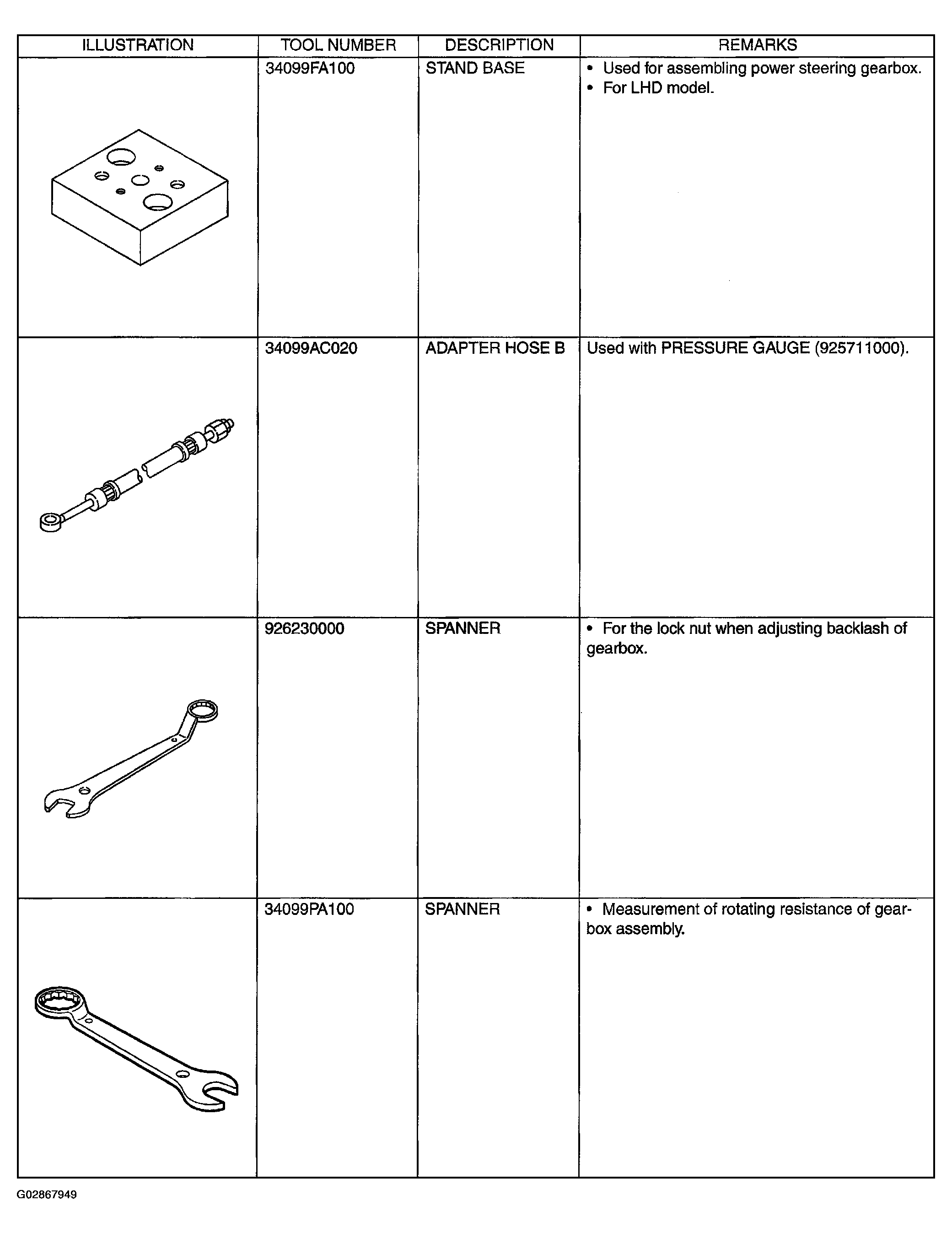

Fig 2: Identifying Special Tools (2 Of 7)

G02867949

Courtesy of SUBARU OF AMERICA, INC.

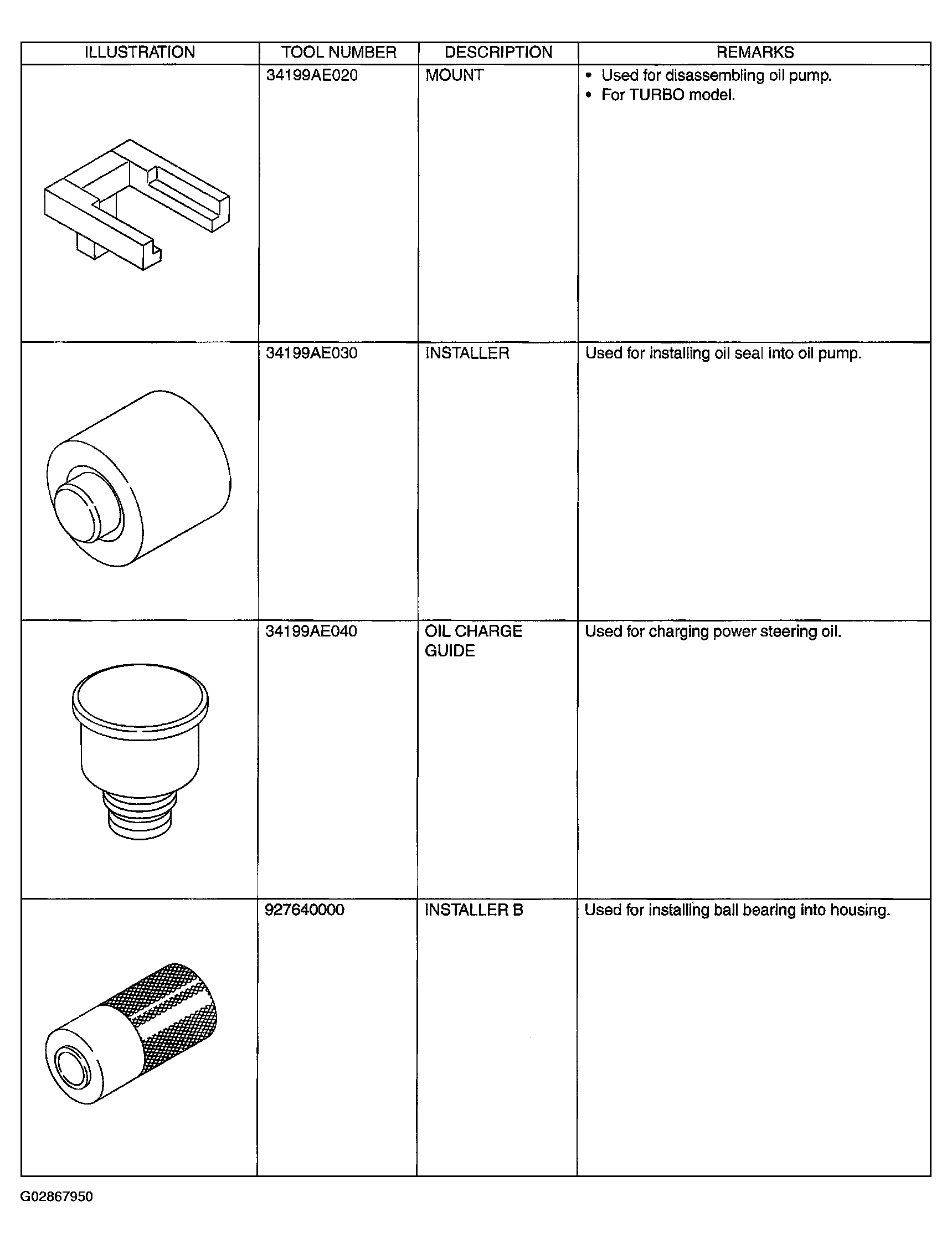

Fig 3: Identifying Special Tools (3 Of 7)

G02867950

Courtesy of SUBARU OF AMERICA, INC.

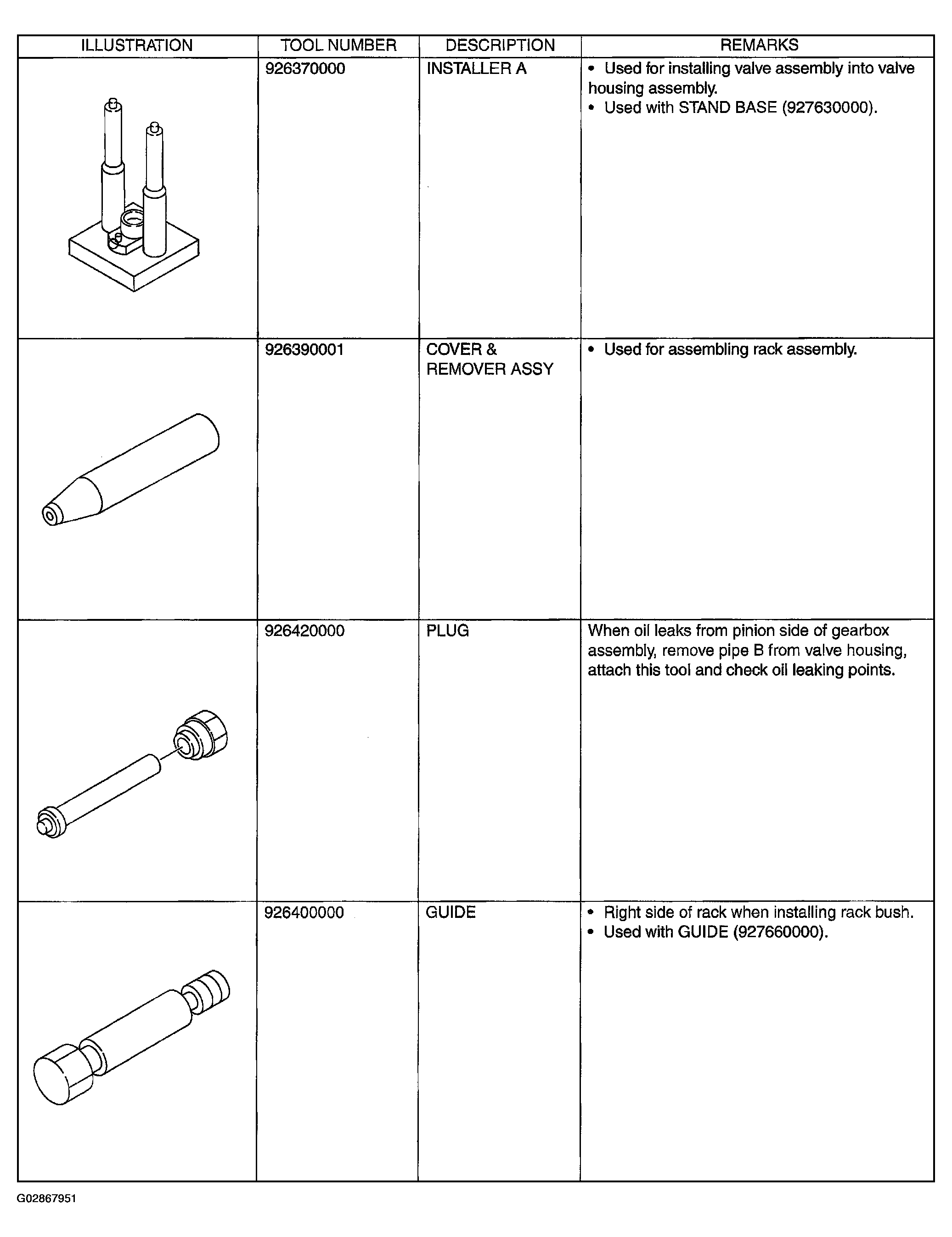

Fig 4: Identifying Special Tools (4 Of 7)

G02867951

Courtesy of SUBARU OF AMERICA, INC.

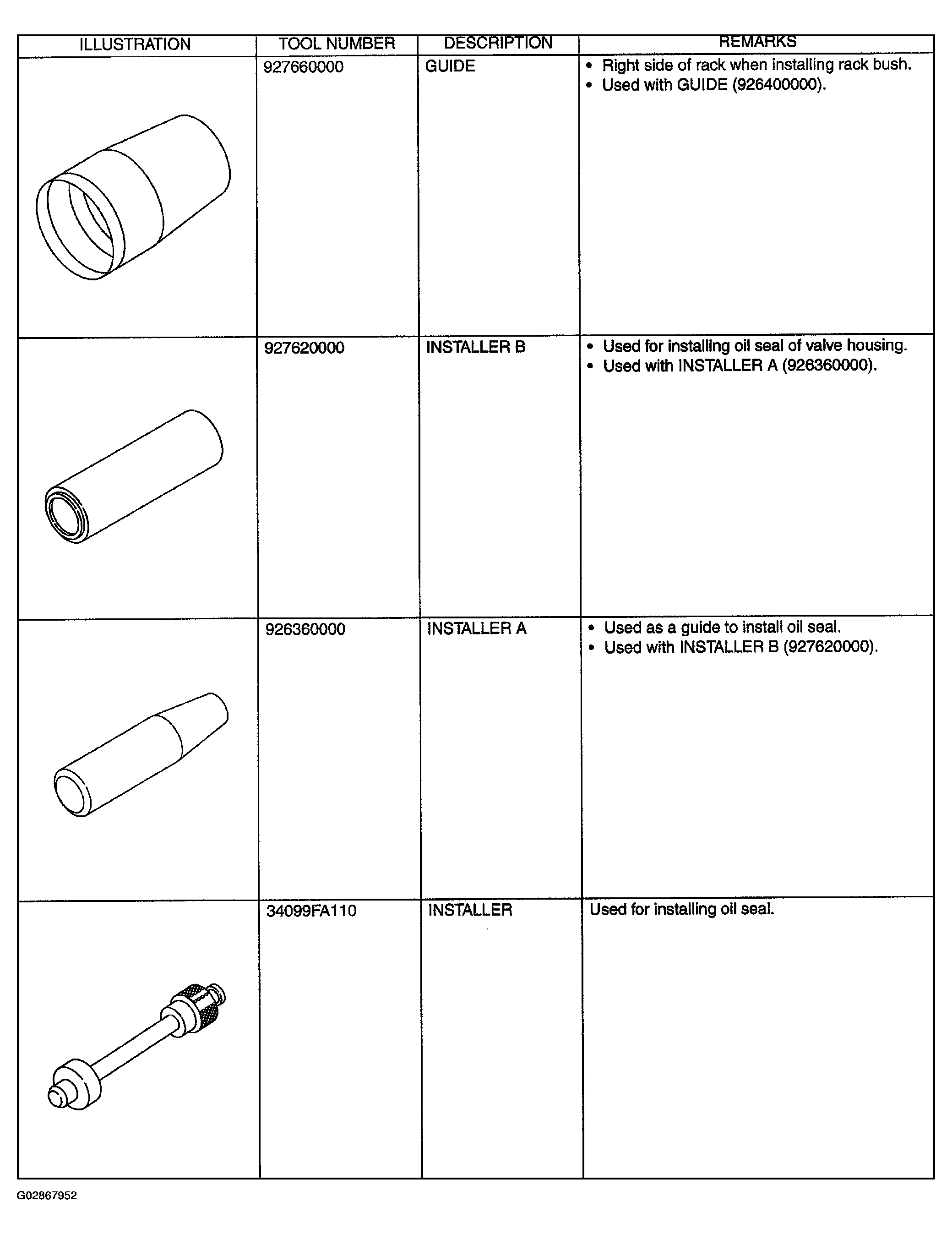

Fig 5: Identifying Special Tools (5 Of 7)

G02867952

Courtesy of SUBARU OF AMERICA, INC.

Fig 6: Identifying Special Tools (6 Of 7)

G02867953

Courtesy of SUBARU OF AMERICA, INC.

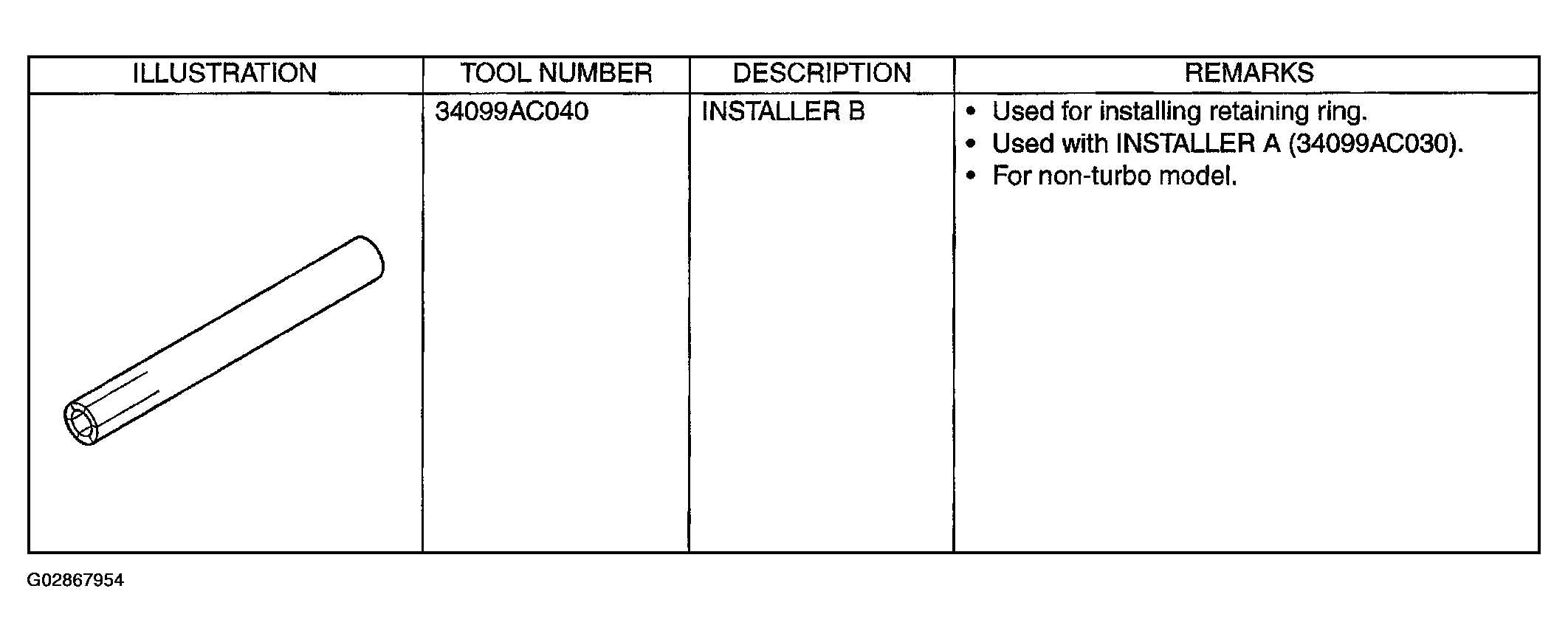

Fig 7: Identifying Special Tools (7 Of 7)

G02867954

Courtesy of SUBARU OF AMERICA, INC.
