Throttle Body: Removal

Disconnect the battery ground cable.

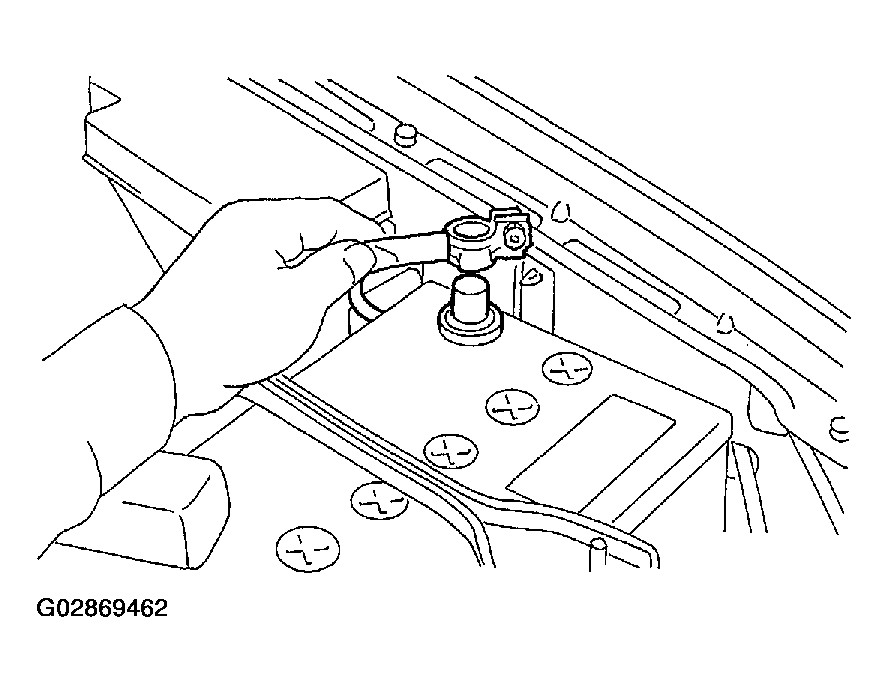

Fig 1: Disconnecting The Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove the air cleaner case. Refer to AIR CLEANER CASE .
Disconnect the accelerator cable (A).

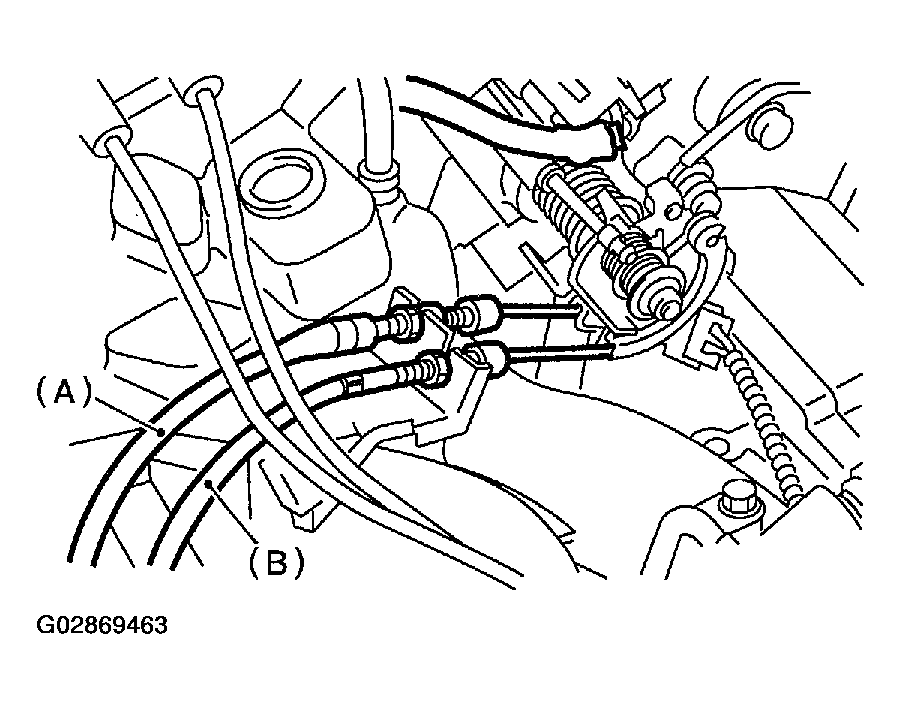

Fig 2: Disconnecting The Accelerator Cable
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the cruise control cable (B). (With cruise control model)
Disconnect the connectors from the idle air control solenoid valve and throttle position sensor.

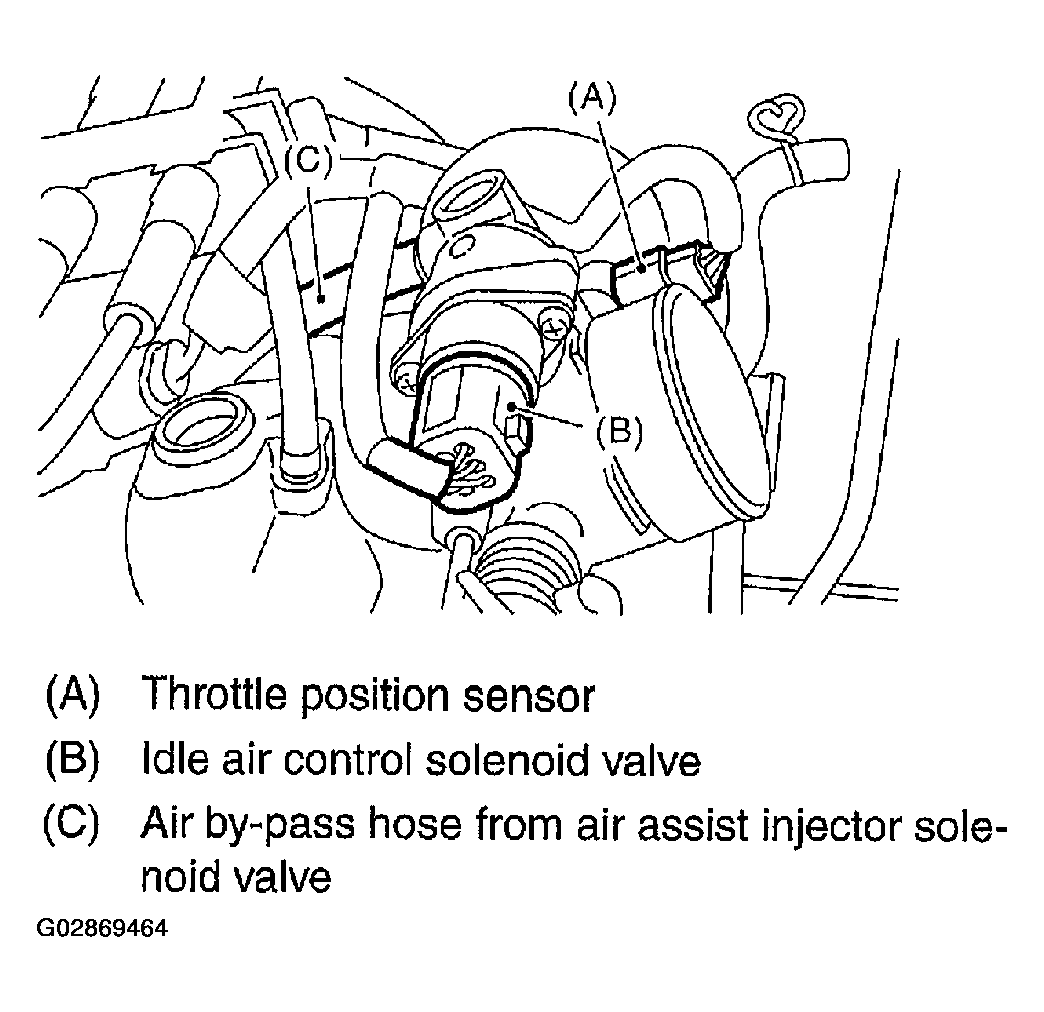

Fig 3: Disconnecting The Connectors From The Idle Air Control Solenoid Valve And Throttle Position Sensor
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the air by-pass hose from the throttle body.
Disconnect the engine coolant hoses from the throttle body.

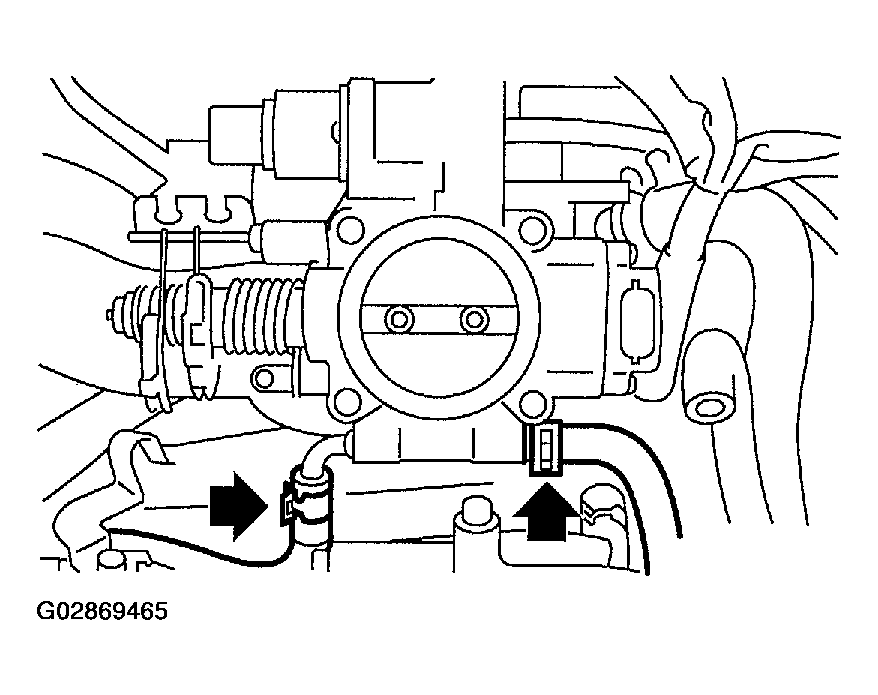

Fig 4: Disconnecting The Engine Coolant Hoses
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts which install throttle body to the intake manifold.
