Knock Sensor: Installation

Install the knock sensor to the cylinder block.
Tightening torque: 24 N.m (2.4 kgf-m, 17.4 ft-lb)

NOTE: The extraction area of the knock sensor cord must be positioned at a 60° angle relative to the engine rear.

Fig 1: Positioning The Extraction Area Of The Knock Sensor Cord
Courtesy of SUBARU OF AMERICA, INC.
Connect the knock sensor connector.

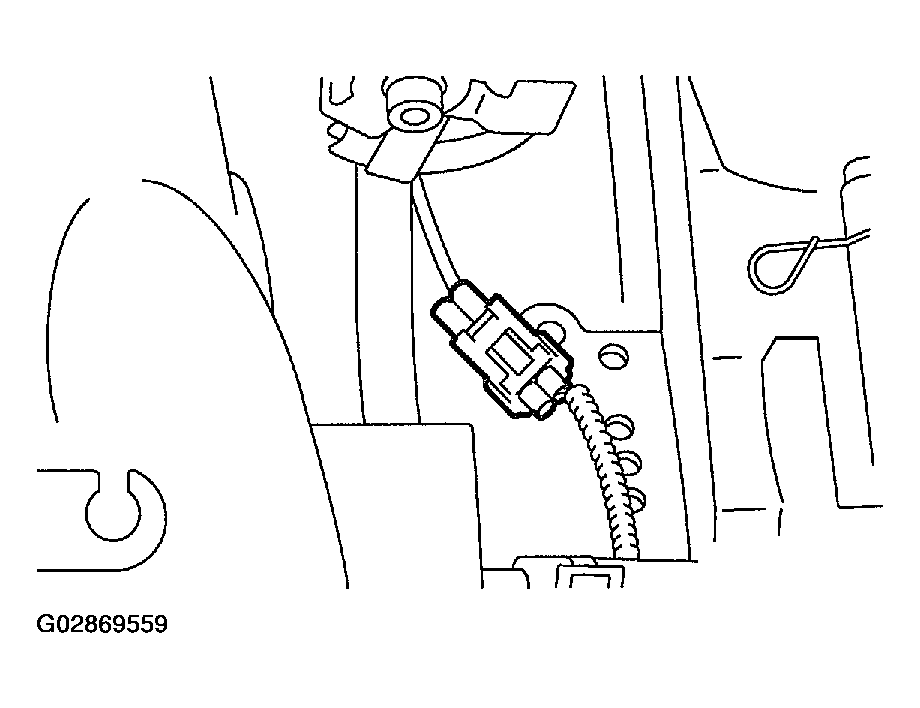

Fig 2: Connecting The Knock Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Install the air cleaner case. Refer to AIR CLEANER CASE .
Connect the battery ground cable.

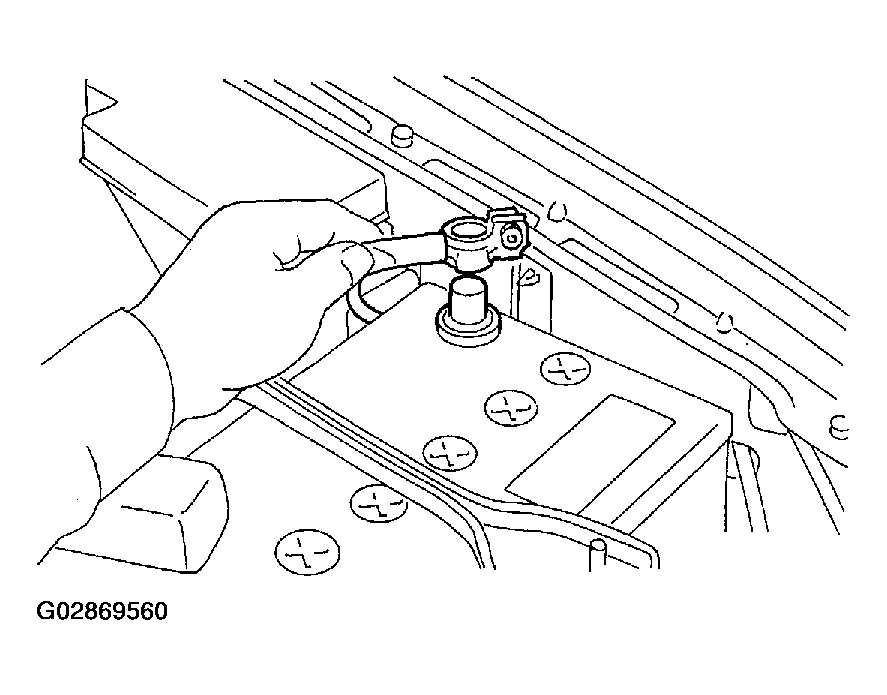

Fig 3: Connecting The Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
