Intake Manifold: Installation

Install the intake manifold onto the cylinder heads.
NOTE: Always use new gaskets.

Tightening torque: 25 N.m (2.5 kgf-m, 18.1 ft-lb)

Fig 1: Installing The Intake Manifold Onto The Cylinder Heads
Courtesy of SUBARU OF AMERICA, INC.

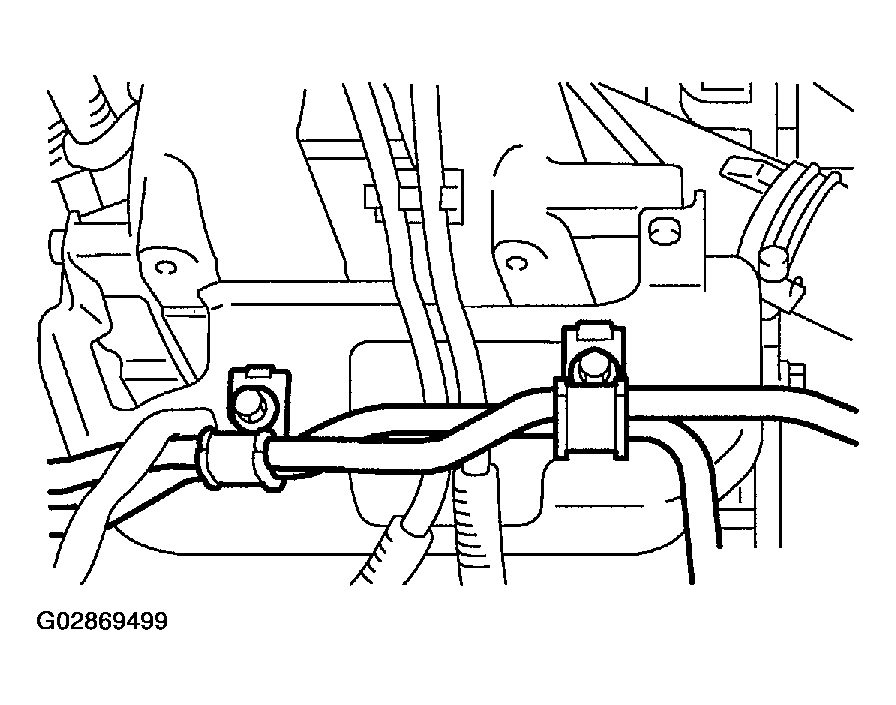

Connect the fuel hoses.

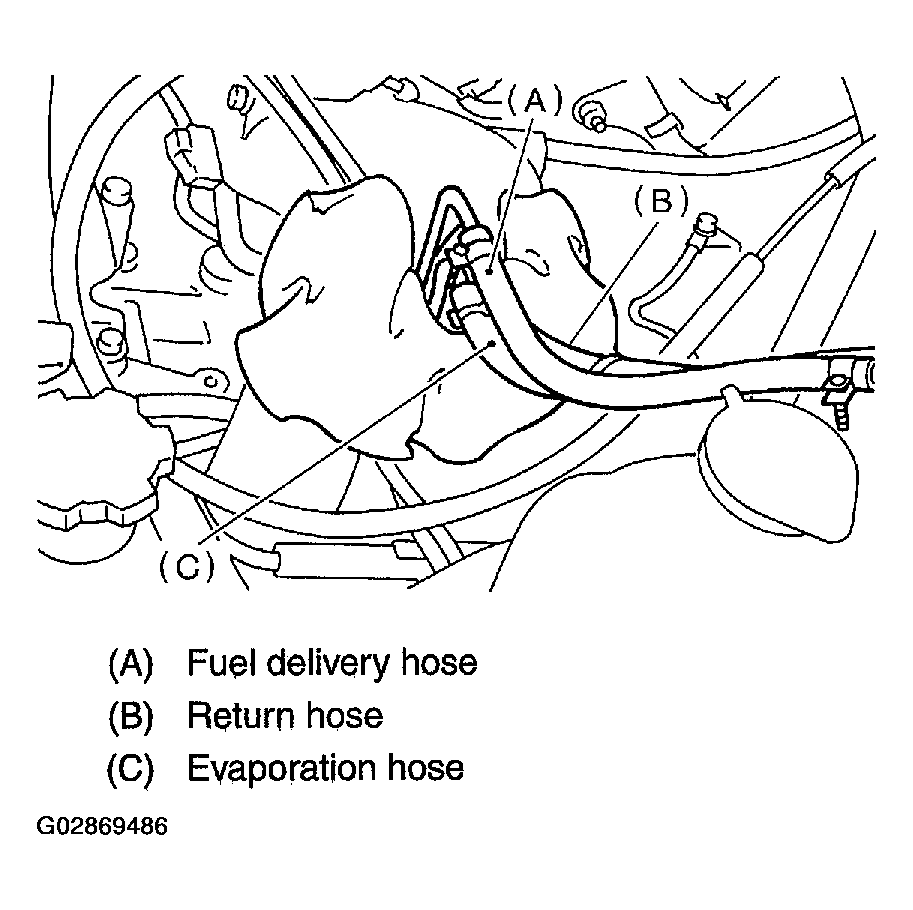

Fig 2: Connecting The Fuel Hoses
Courtesy of SUBARU OF AMERICA, INC.
Connect the connector to the camshaft position sensor.

Fig 3: Connecting The Connector To The Camshaft Position Sensor
Courtesy of SUBARU OF AMERICA, INC.
Connect the connector to the oil pressure switch.

Fig 4: Connecting The Connector To The Oil Pressure Switch
Courtesy of SUBARU OF AMERICA, INC.

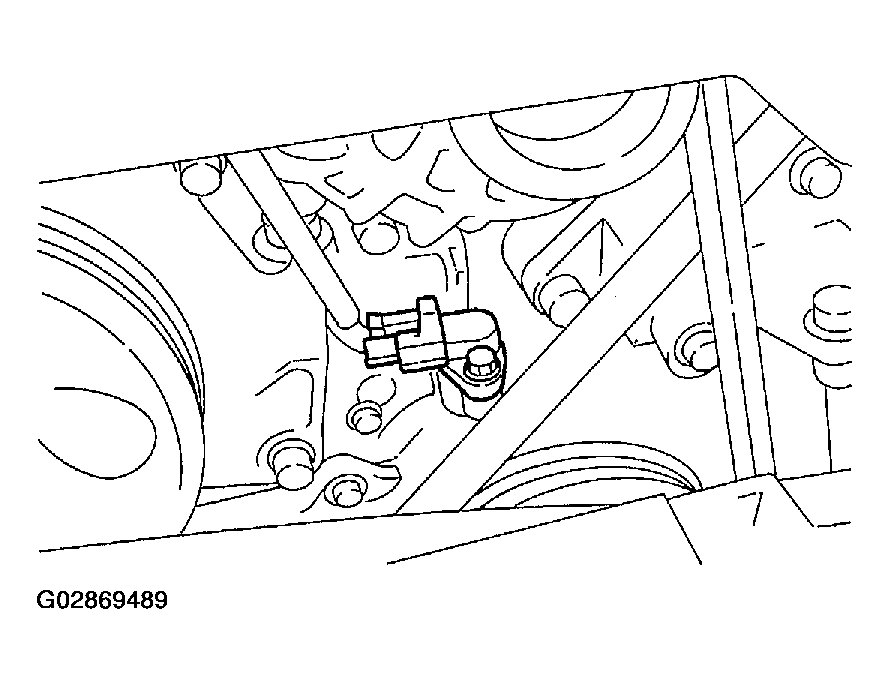

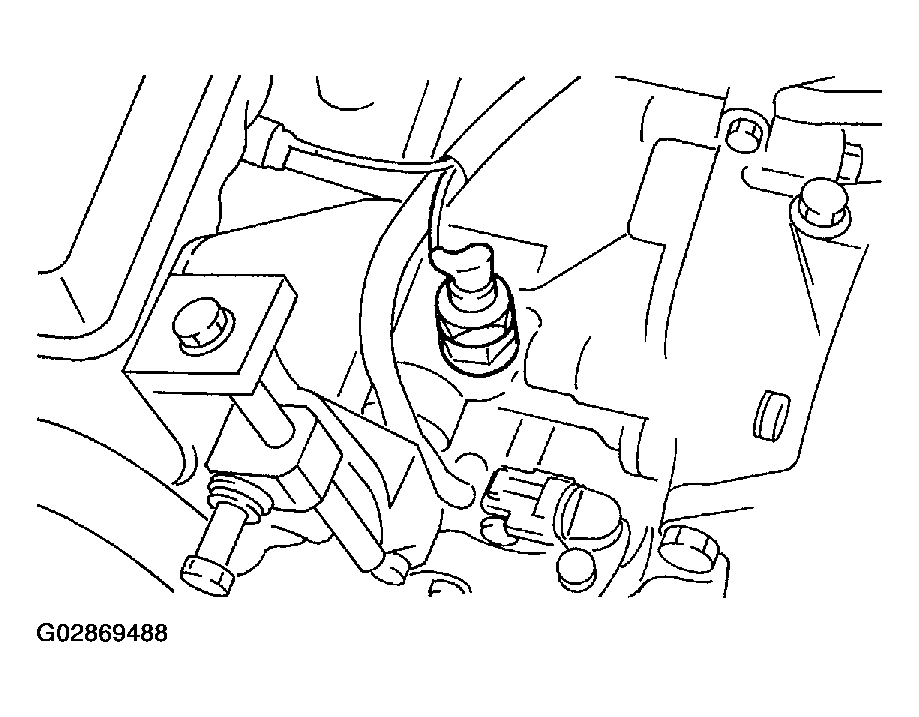

Connect the connector to the crankshaft position sensor.

Fig 5: Connecting The Connector To The Crankshaft Position Sensor
Courtesy of SUBARU OF AMERICA, INC.

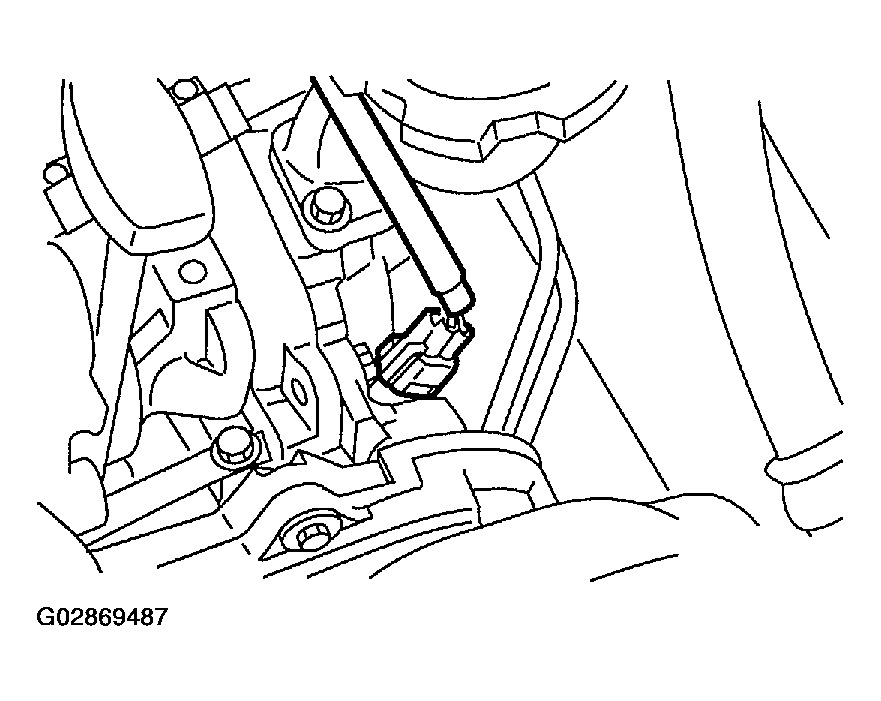

Connect the knock sensor connector.

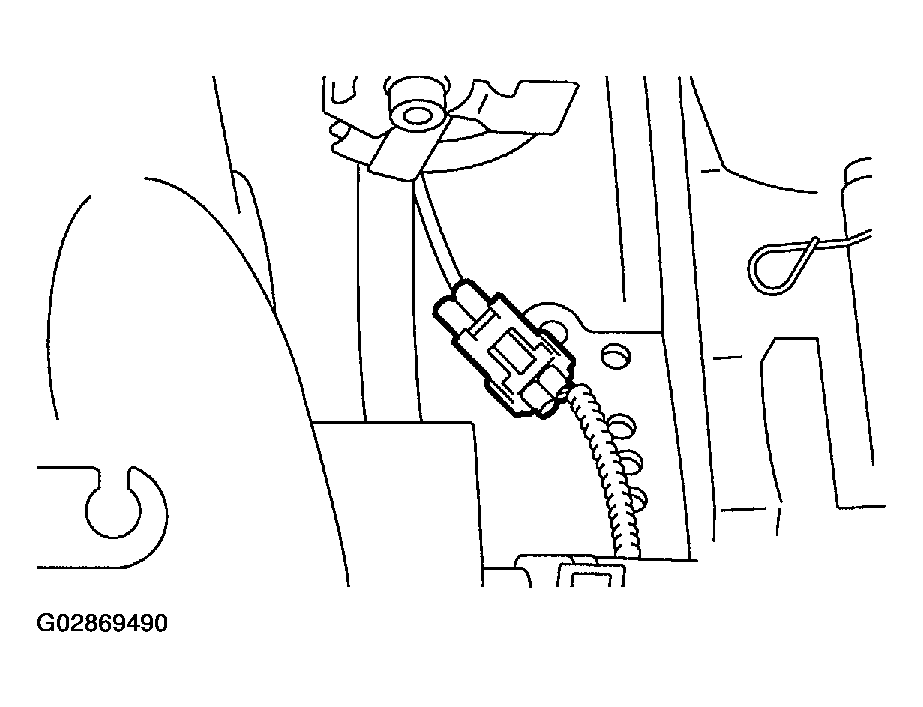

Fig 6: Connecting The Knock Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.

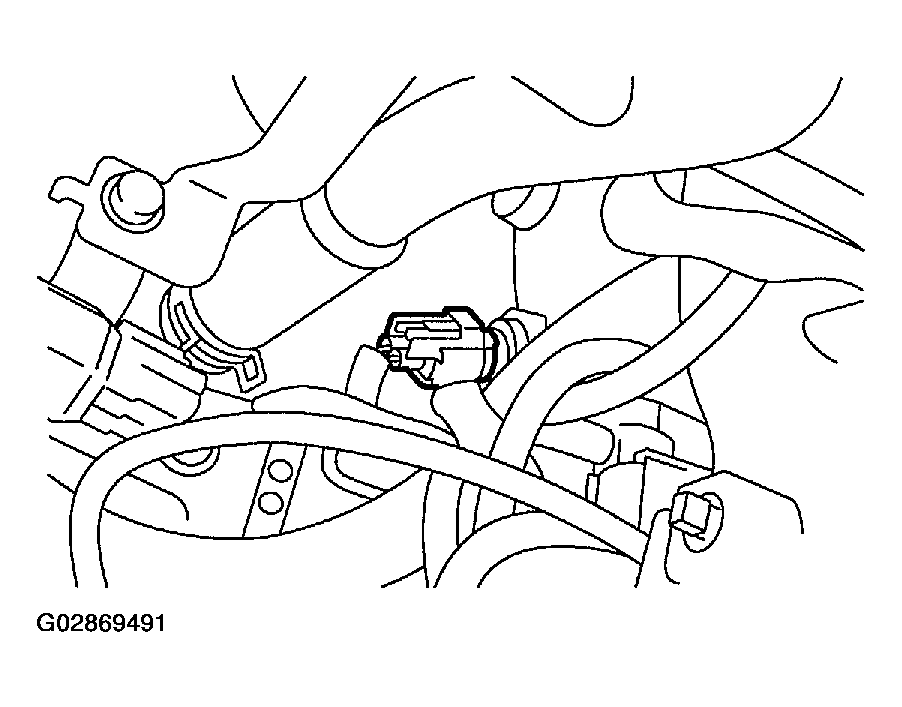

Connect the connectors to the engine coolant temperature sensor.

Fig 7: Connecting The Connectors To The Engine Coolant Temperature Sensor
Courtesy of SUBARU OF AMERICA, INC.

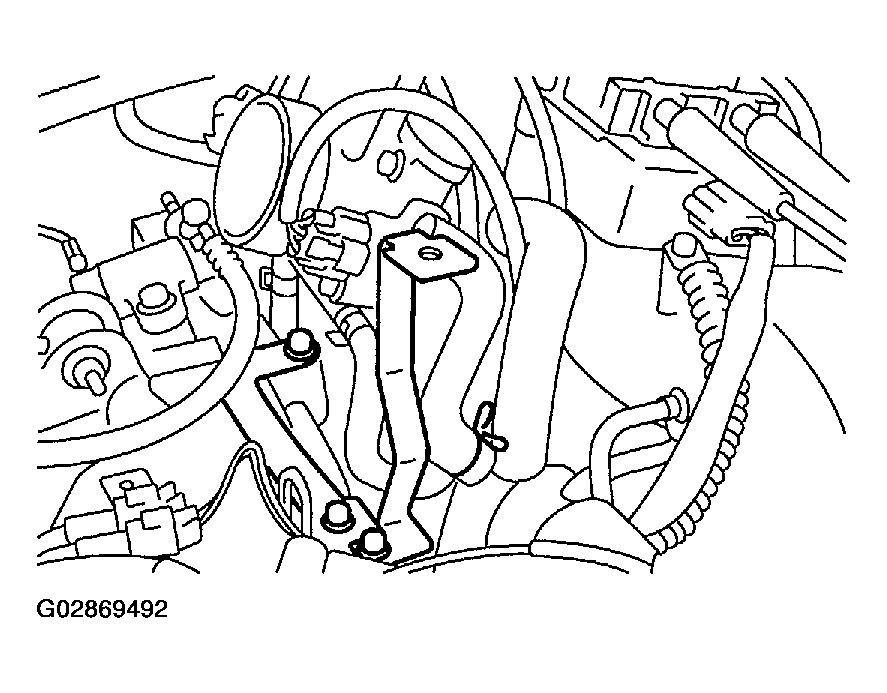

Install the air cleaner case stay RH and engine harness bracket, and connect the engine harness connectors to the bulkhead connectors.

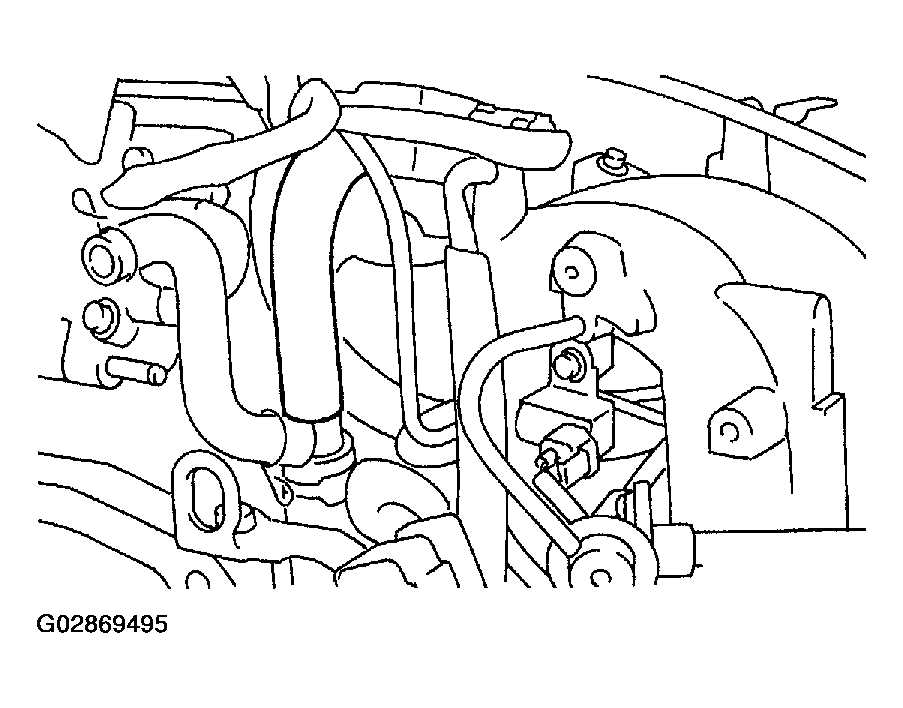

Fig 8: Installing The Air Cleaner Case Stay RH And Engine Harness Bracket
Courtesy of SUBARU OF AMERICA, INC.
Connect the brake booster hose.

Fig 9: Connecting The Brake Booster Hose
Courtesy of SUBARU OF AMERICA, INC.
Connect the engine coolant hose to the throttle body.

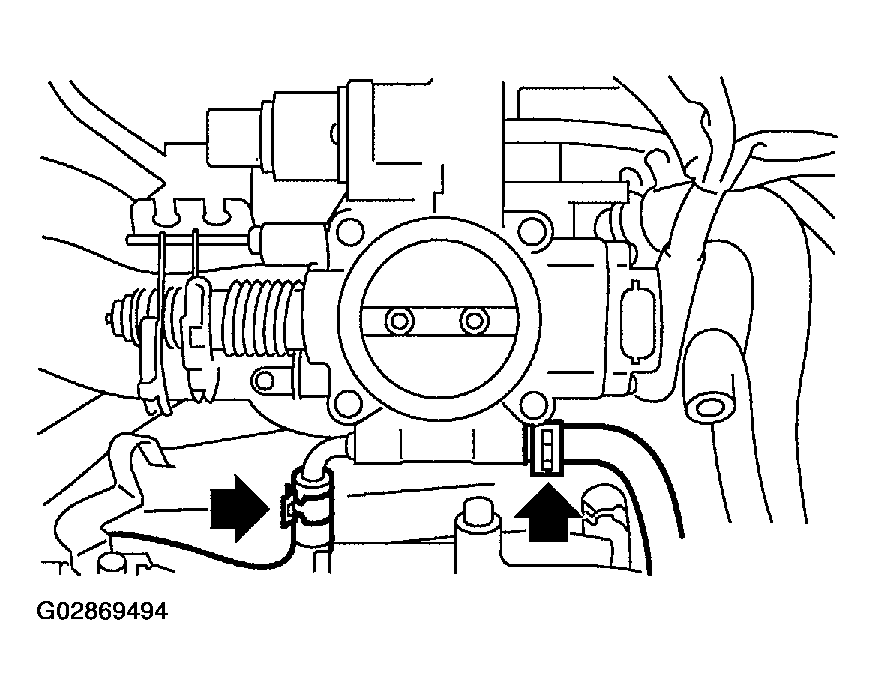

Fig 10: Connecting The Engine Coolant Hose To The Throttle Body
Courtesy of SUBARU OF AMERICA, INC.
Connect the PCV hose to the intake manifold.

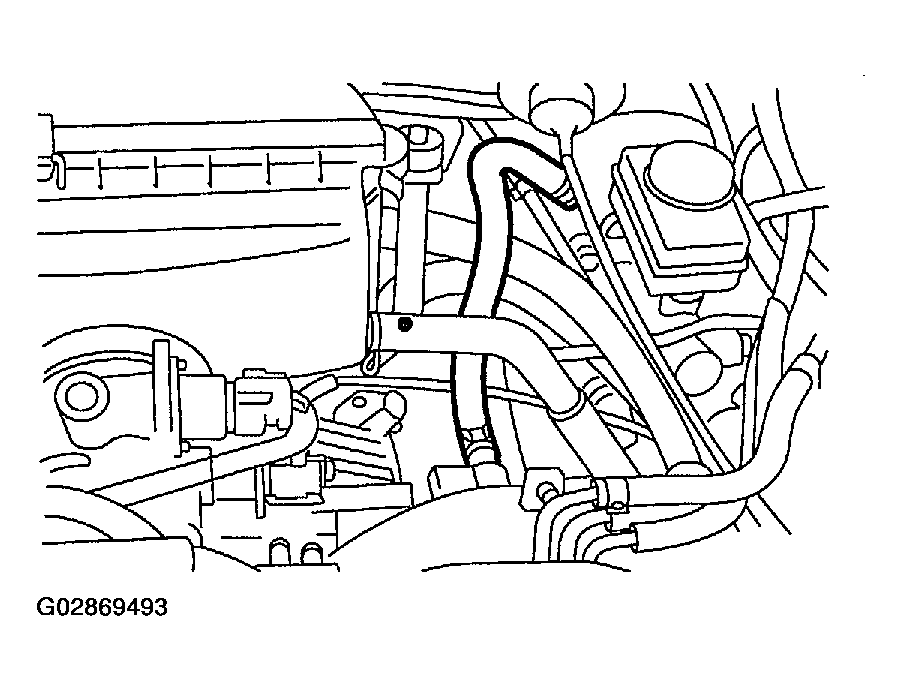

Fig 11: Connecting The PCV Hose To The Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.
Connect the spark plug cords to the spark plugs.
Install the power steering pump.

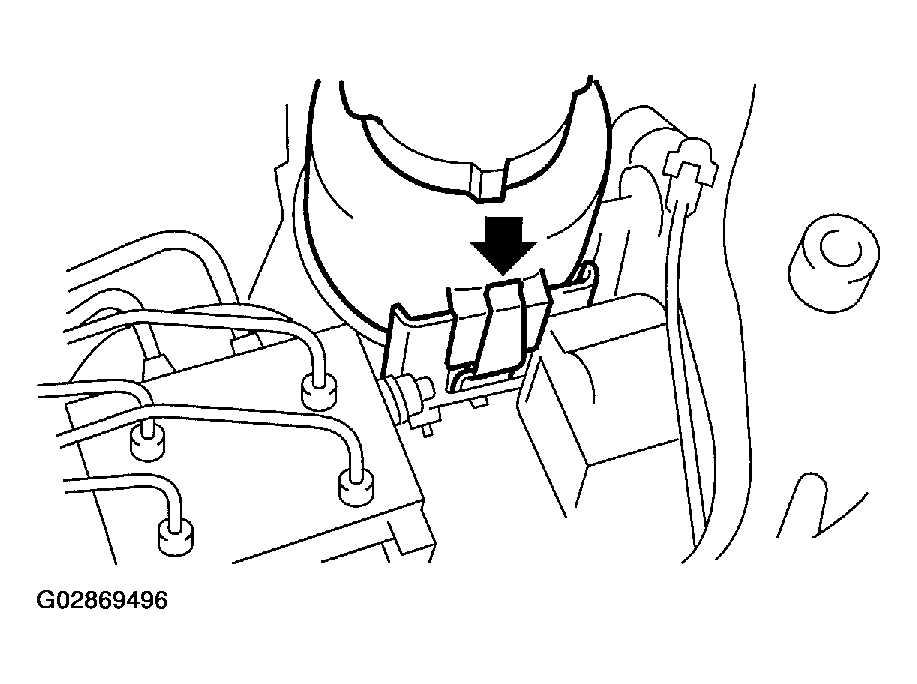

1. Install the power steering tank on the bracket.

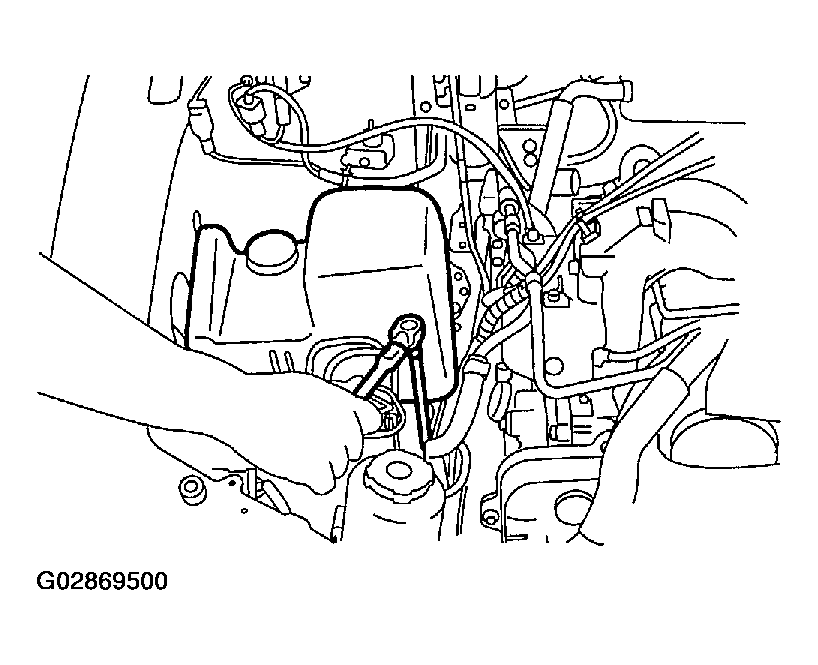

  Fig 12: Installing The Power Steering Pump
  Courtesy of SUBARU OF AMERICA, INC.

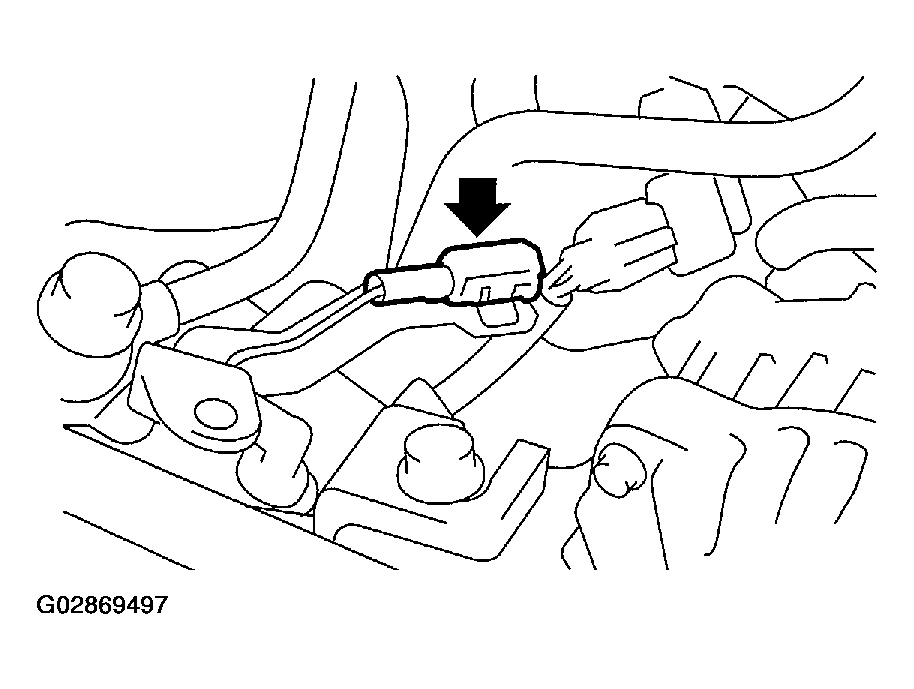

2. Connect the connector to the power steering pump switch.

  Fig 13: Connecting The Connector To The Power Steering Pump Switch
  Courtesy of SUBARU OF AMERICA, INC.

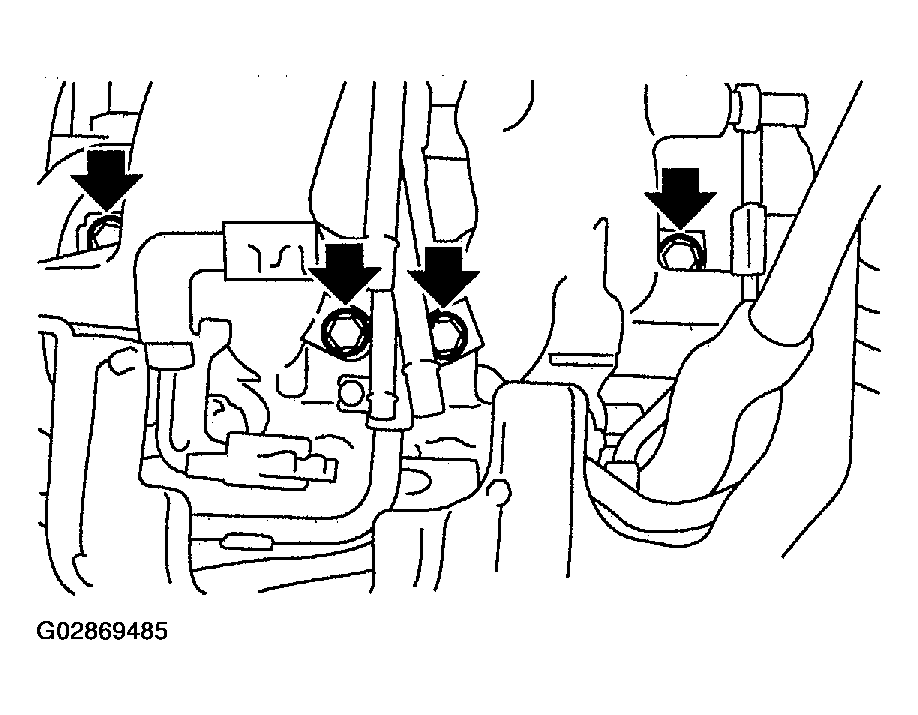

3. Tighten the bolts which install power steering pump bracket.
  Tightening torque: 22 N.m (2.2 kgf-m, 15.9 ft-lb)

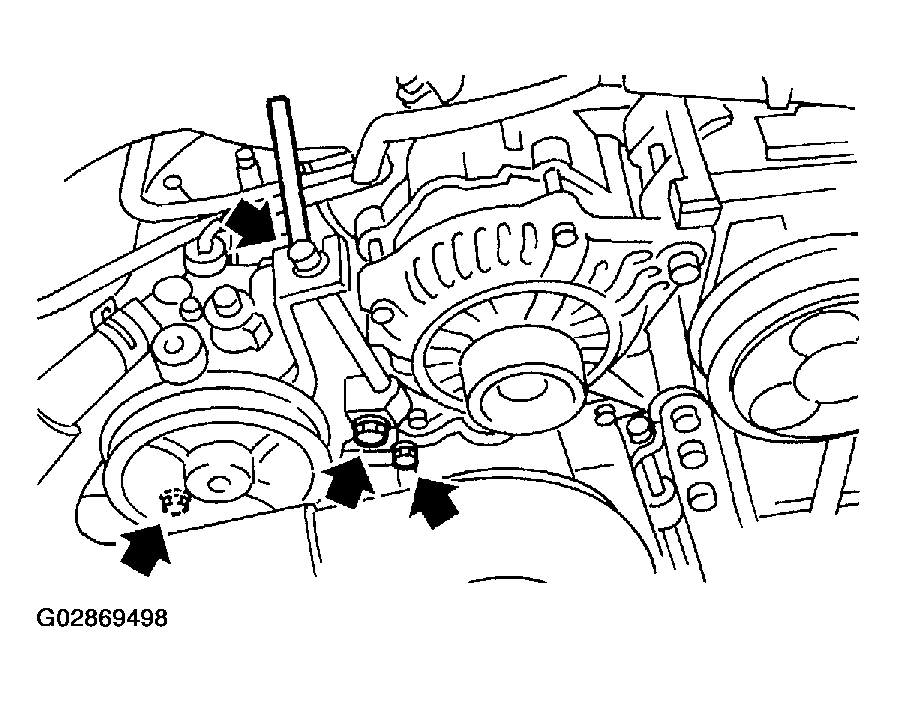

  Fig 14: Tightening The Bolts Which Install Power Steering Pump Bracket
  Courtesy of SUBARU OF AMERICA, INC.
4. Install the power steering pipes onto the right side intake manifold protector.

  Fig 15: Installing The Power Steering Pipes Onto The Right Side Intake Manifold Protector
  Courtesy of SUBARU OF AMERICA, INC.
5. Install the front side V-belt. Refer to V-BELT
6. Install the resonator chamber.
  Tightening torque: 33 N.m (3.4 kgf-m, 24.6 ft-lb)

  Fig 16: Installing The Resonator Chamber
  Courtesy of SUBARU OF AMERICA, INC.

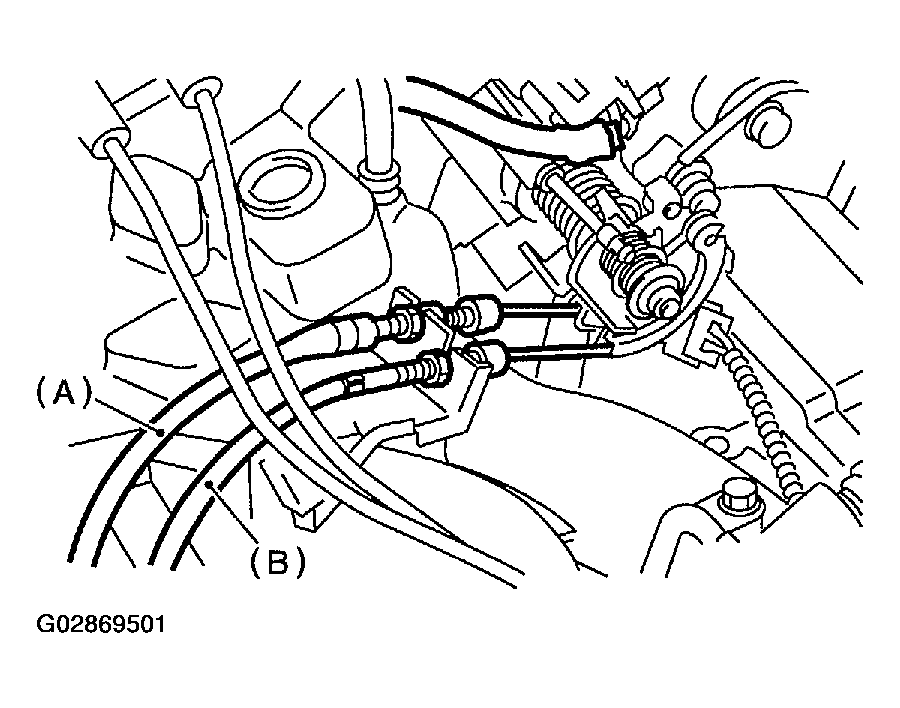

Connect the accelerator cable (A).

Fig 17: Connecting The Accelerator Cable
Courtesy of SUBARU OF AMERICA, INC.
Connect the cruise control cable (B). (With cruise control models)
Install the air intake duct and air cleaner assembly. Refer to AIR CLEANER CASE .
Connect the connector to the fuel pump relay.

Fig 18: Connecting The Connector To The Fuel Pump Relay
Courtesy of SUBARU OF AMERICA, INC.
Connect the battery ground cable.

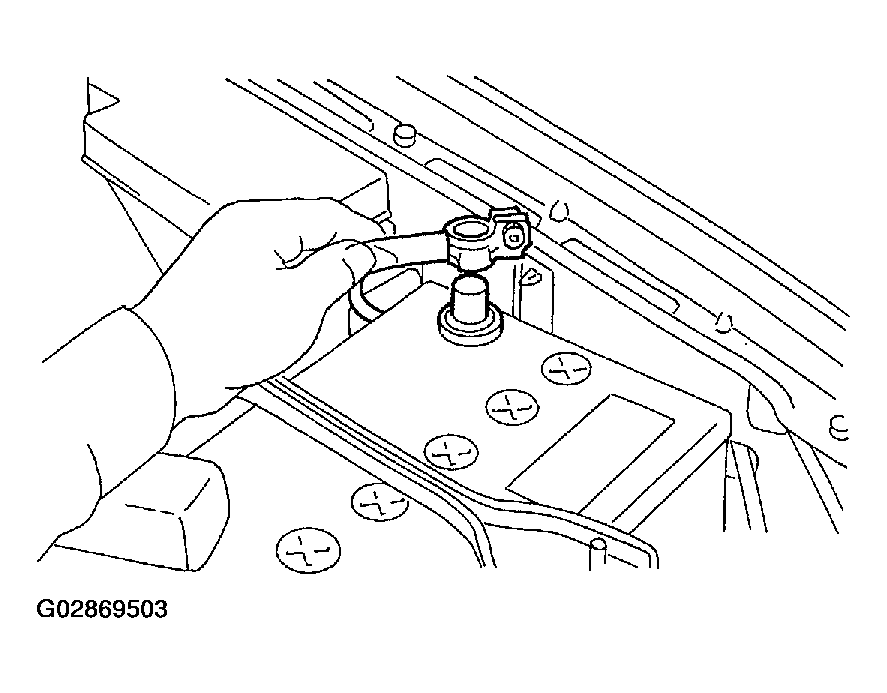

Fig 19: Connecting The Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
