Home >> Subaru >> 2002 >> Impreza RS, Automatic >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Fuel Injection (Fuel Systems) -- (SOHC) >> General Description >> Specifications

Fuel Injection (Fuel Systems) -- (SOHC): General Description: Specifications

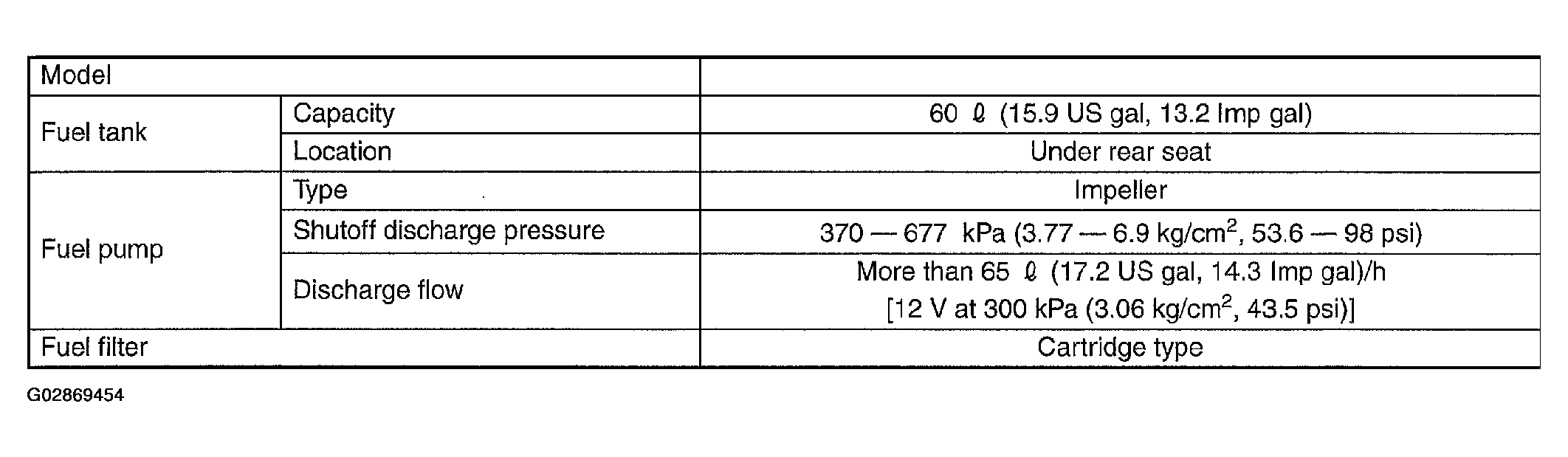

Fig 1: Fuel System Specifications

G02869454

Courtesy of SUBARU OF AMERICA, INC.
