Fuel Tank: Removal

WARNING:

Set the vehicle on the lift.
Release the fuel pressure. Refer to RELEASING OF FUEL PRESSURE .
Drain the fuel from the fuel tank. Refer to DRAINING FUEL .
Remove the rear seat.
Disconnect the connector (A) of fuel tank cord to the rear harness.

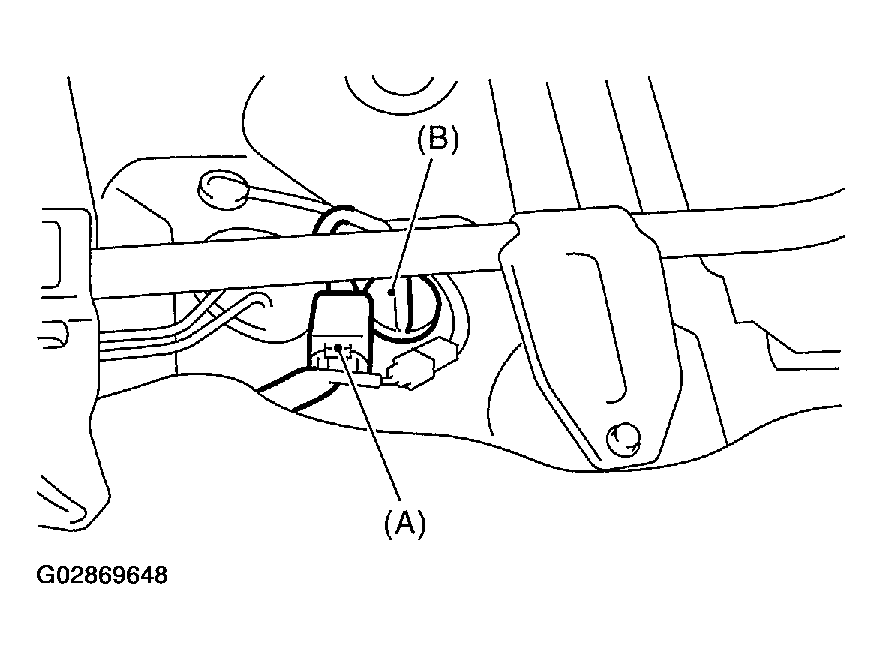

Fig 1: Disconnecting The Connector Of Fuel Tank Cord To The Rear Harness
Courtesy of SUBARU OF AMERICA, INC.
Push the grommet (B) which holds the fuel tank cord on the floor panel under the body.
Remove the rear crossmember. Refer to CROSSMEMBER .
Move the clamps, and disconnect the evaporation hose from the canister.

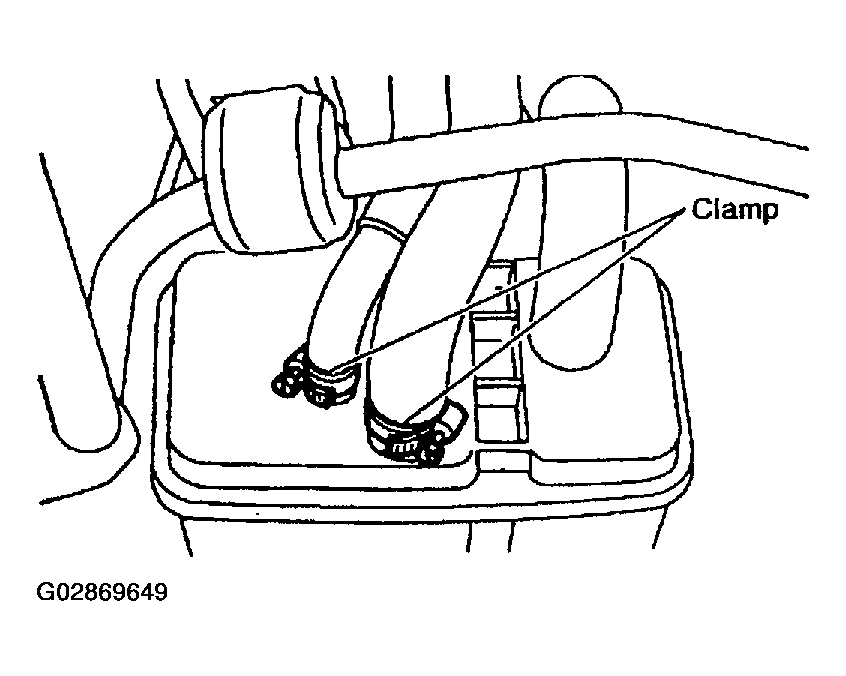

Fig 2: Moving The Clamp
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from the pressure control solenoid valve.
Disconnect the connector from the drain valve.

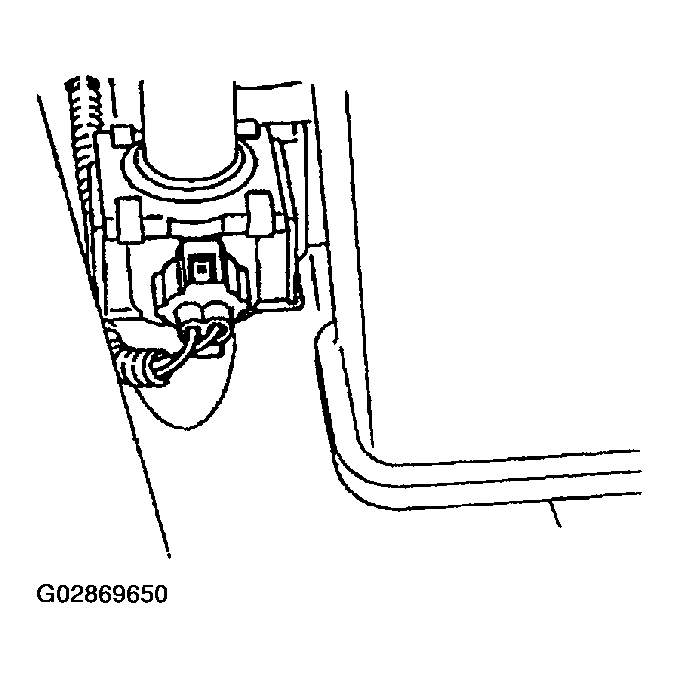

Fig 3: Disconnecting The Connector From The Drain Valve
Courtesy of SUBARU OF AMERICA, INC.
Loosen the clamp and disconnect the fuel filler hose (A) and air vent hose (B) from the fuel filler pipe.

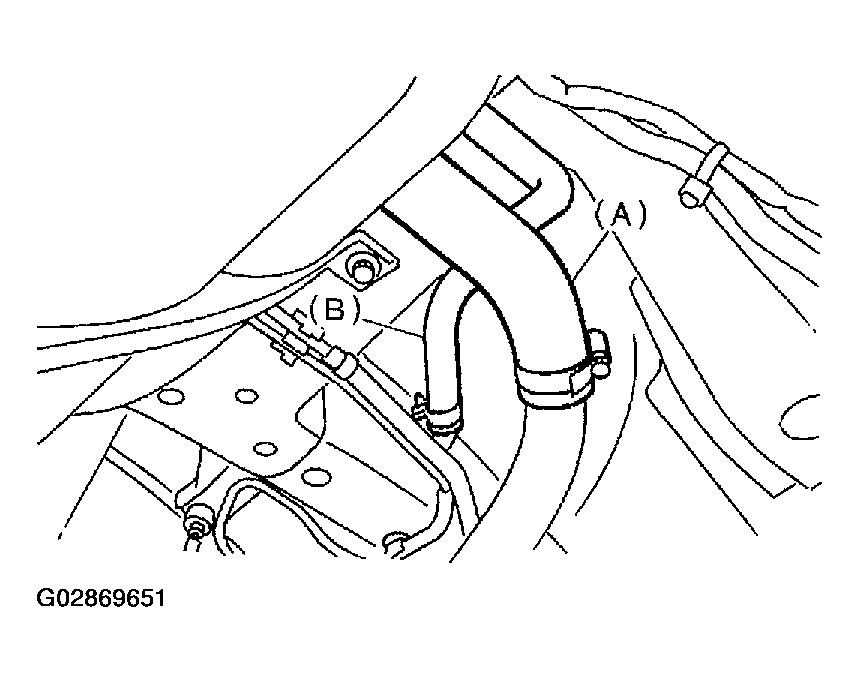

Fig 4: Disconnecting The Fuel Filler And Air Vent Hoses From The Fuel Filler Pipe
Courtesy of SUBARU OF AMERICA, INC.
Move the clips, and disconnect the quick connector. Refer to Fuel Delivery, Return and Evaporation Lines .
Disconnect the fuel hoses.

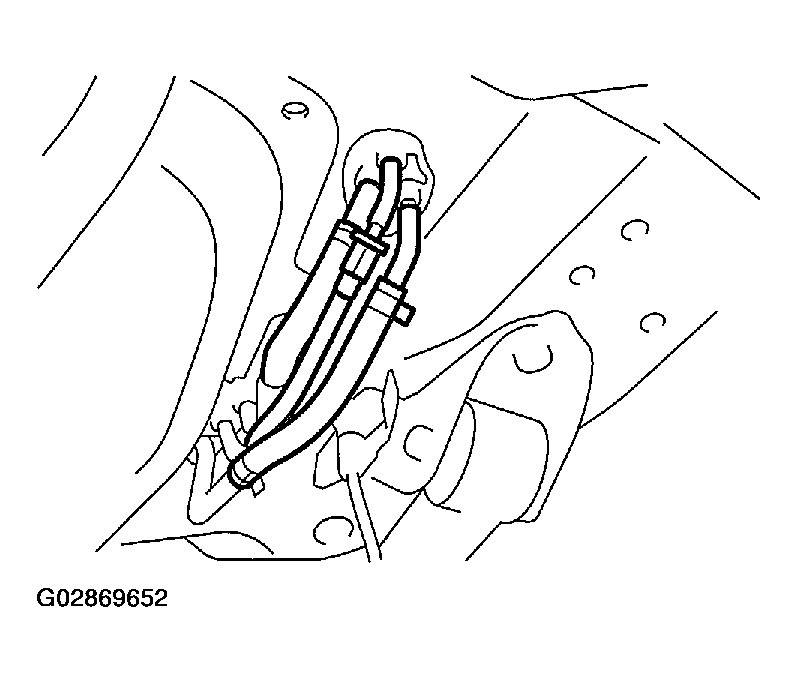

Fig 5: Disconnecting The Fuel Hoses
Courtesy of SUBARU OF AMERICA, INC.
Support the fuel tank with transmission jack, remove the bolts from bands and dismount the fuel tank from the vehicle.
WARNING: A helper is required to perform this work.

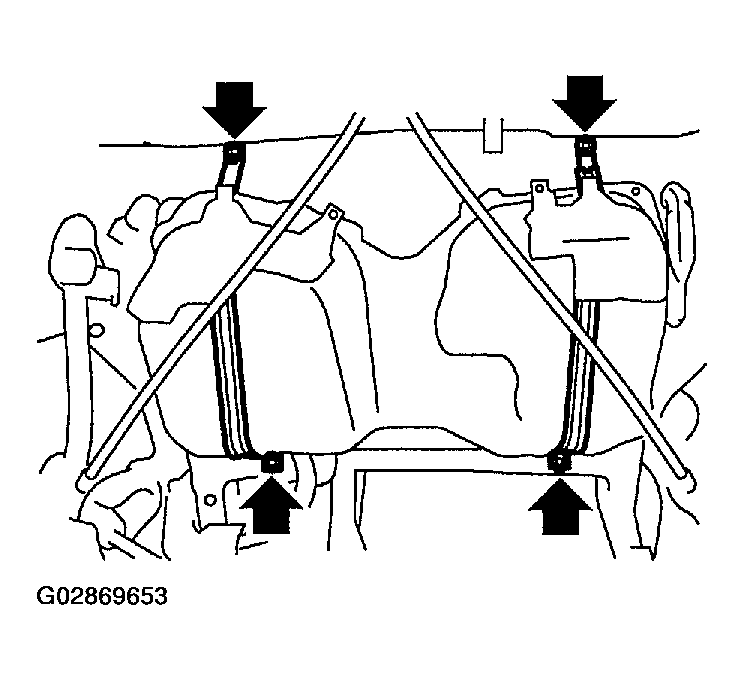

Fig 6: Removing The Bolts From Bands
Courtesy of SUBARU OF AMERICA, INC.
