Fuel Sub Level Sensor: Removal

WARNING:

Disconnect the battery ground cable.

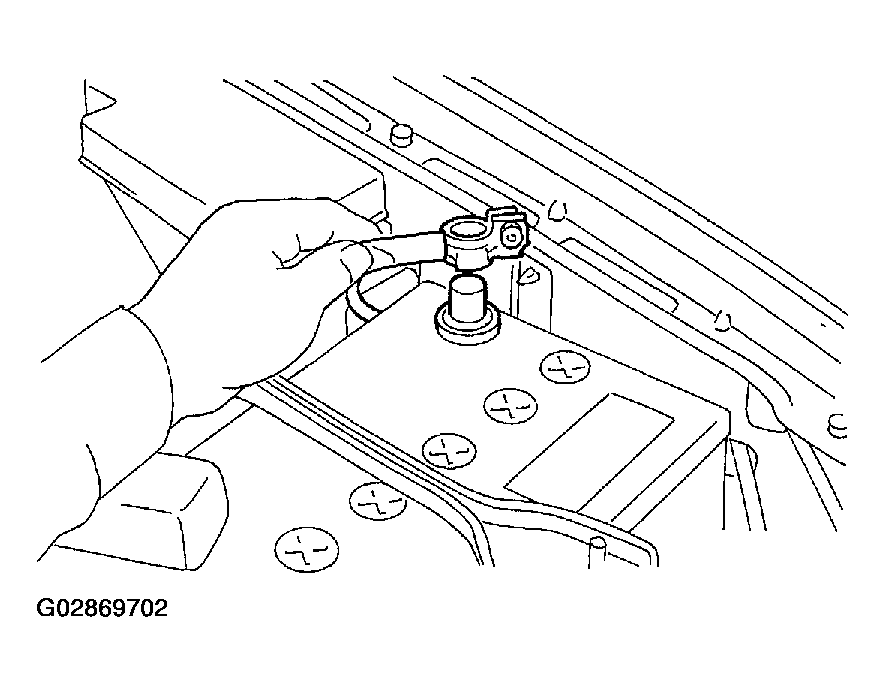

Fig 1: Disconnecting The Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Lift-up the vehicle.
Drain the fuel from the fuel tank. Set a container under the vehicle and remove the drain plugs from the fuel tank.

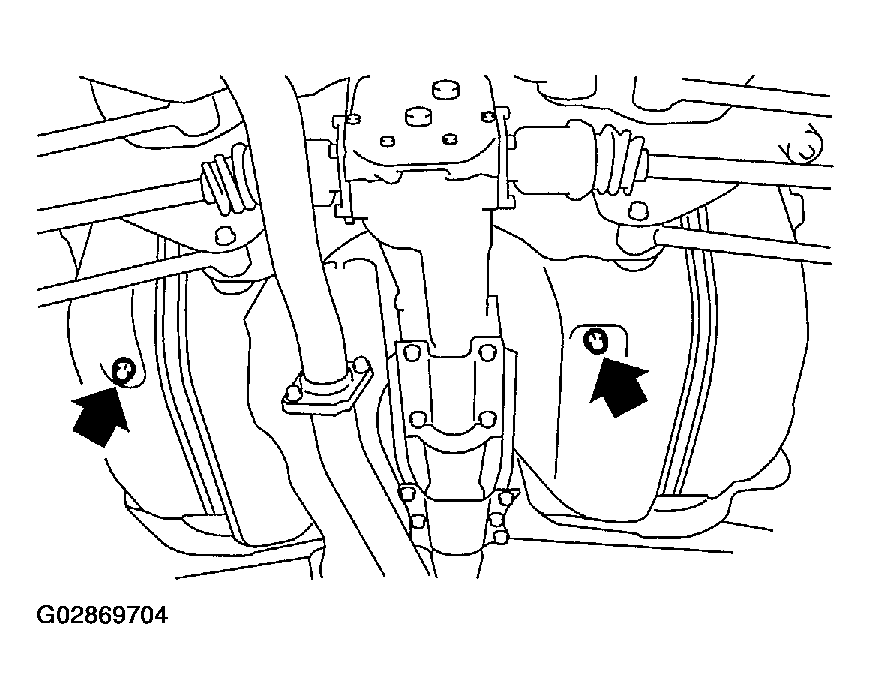

Fig 2: Removing The Drain Plugs
Courtesy of SUBARU OF AMERICA, INC.
Tighten the fuel drain plugs.
Tightening torque: 26 N.m (2.65 kgf-m, 19.2 ft-lb)

Fig 3: Tightening The Fuel Drain Plugs
Courtesy of SUBARU OF AMERICA, INC.
Remove the rear seat.
Remove the service hole cover.

Fig 4: Removing The Service Hole Cover
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from the fuel sub meter.
Disconnect the fuel jet pump hose.

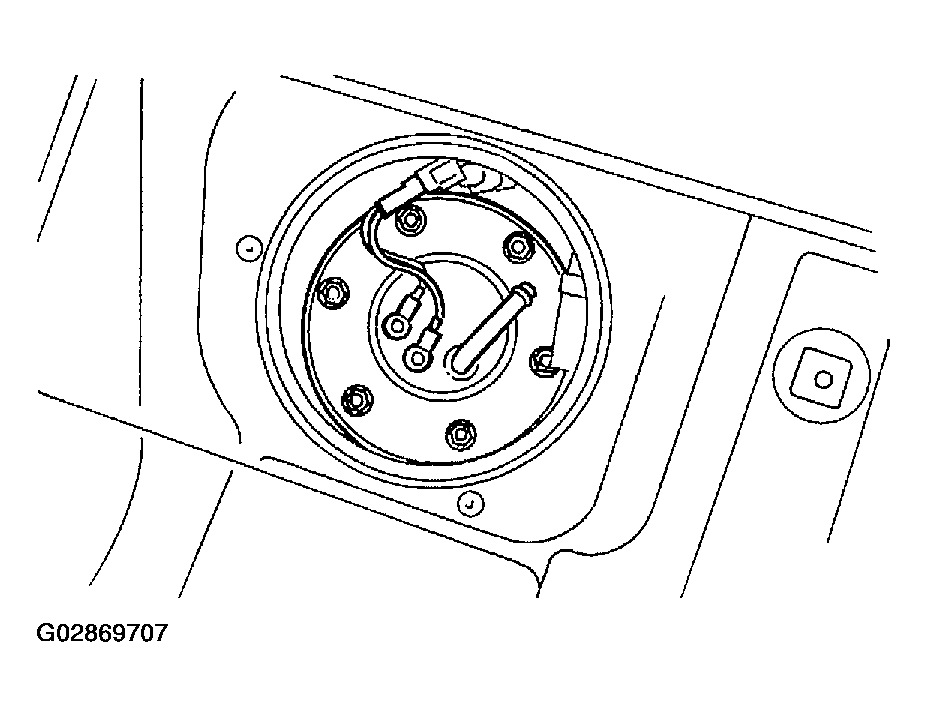

Fig 5: Disconnecting The Fuel Jet Pump Hose
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts which install the fuel sub meter unit on the fuel tank.

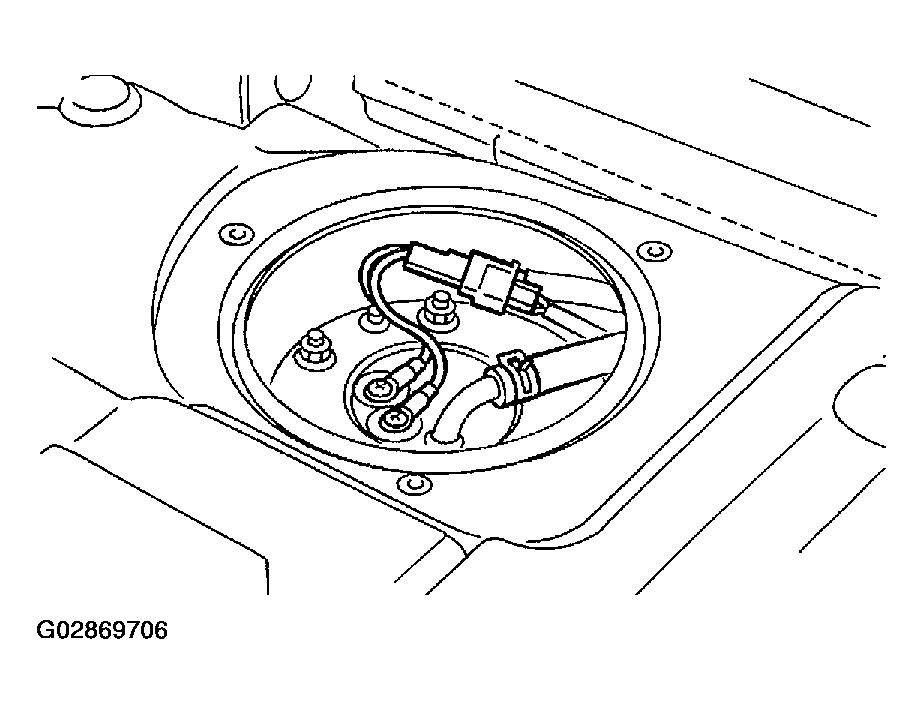

Fig 6: Removing The Bolts Which Install The Fuel Sub Meter Unit On The Fuel Tank
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel sub meter unit.

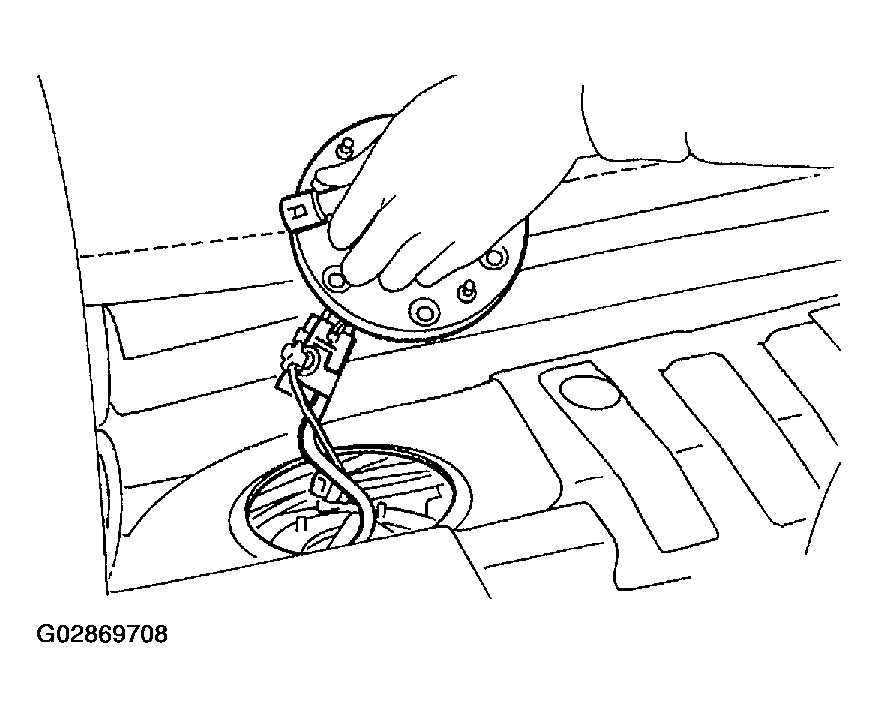

Fig 7: Removing The Fuel Sub Meter Unit
Courtesy of SUBARU OF AMERICA, INC.
