Fuel Pump: Removal

WARNING:

NOTE: Fuel pump assembly consists of fuel pump and fuel level sensor.

Release the fuel pressure. Refer to RELEASING OF FUEL PRESSURE .
Open the fuel filler flap lid and remove the fuel filler cap.
Disconnect the battery ground cable.

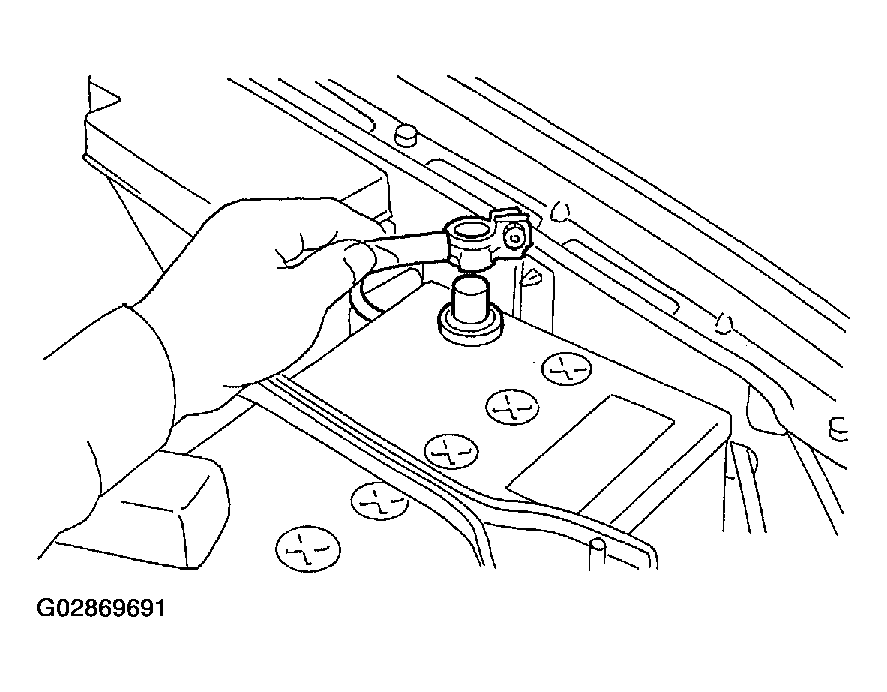

Fig 1: Disconnecting The Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Lift-up the vehicle.
Drain the fuel from the fuel tank. Set a container under the vehicle and remove the drain plugs from the fuel tank.

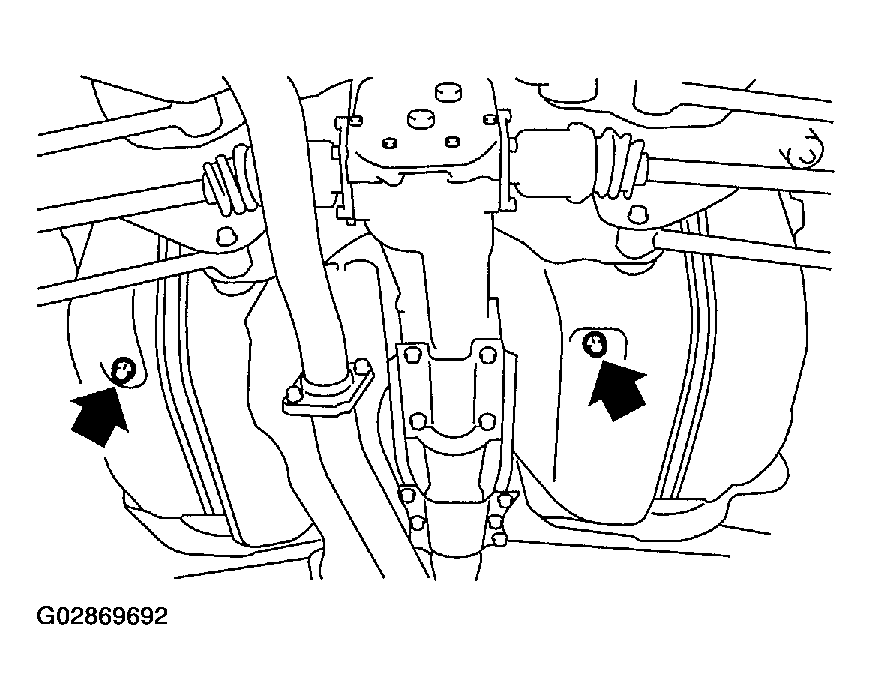

Fig 2: Removing The Drain Plugs
Courtesy of SUBARU OF AMERICA, INC.
Tighten the fuel drain plugs.
Tightening torque: 26 N.m (2.65 kgf-m, 19.2 ft-lb)

Fig 3: Tightening The Fuel Drain Plugs
Courtesy of SUBARU OF AMERICA, INC.
Raise the rear seat and turn the floor mat up.
Remove the access hole lid.

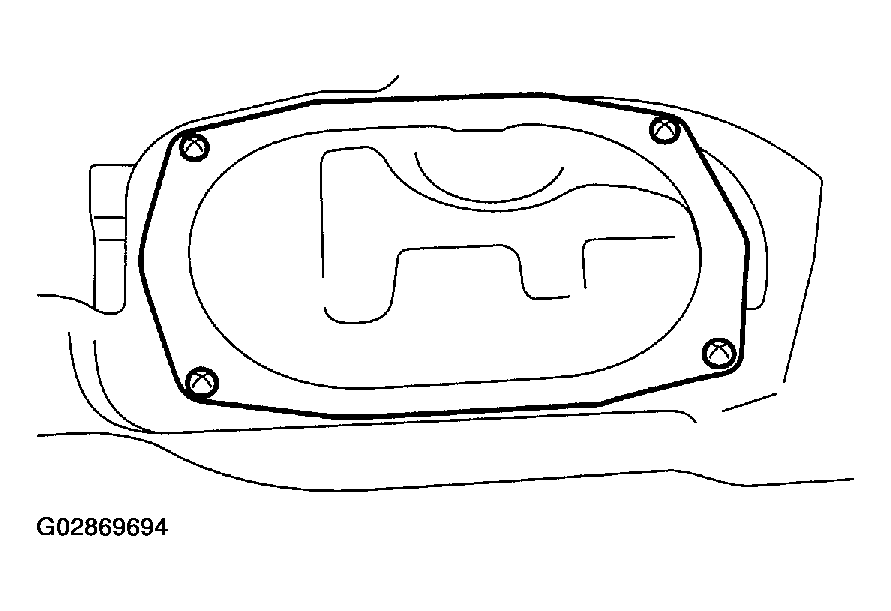

Fig 4: Removing The Access Hole Lid
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from the fuel pump.

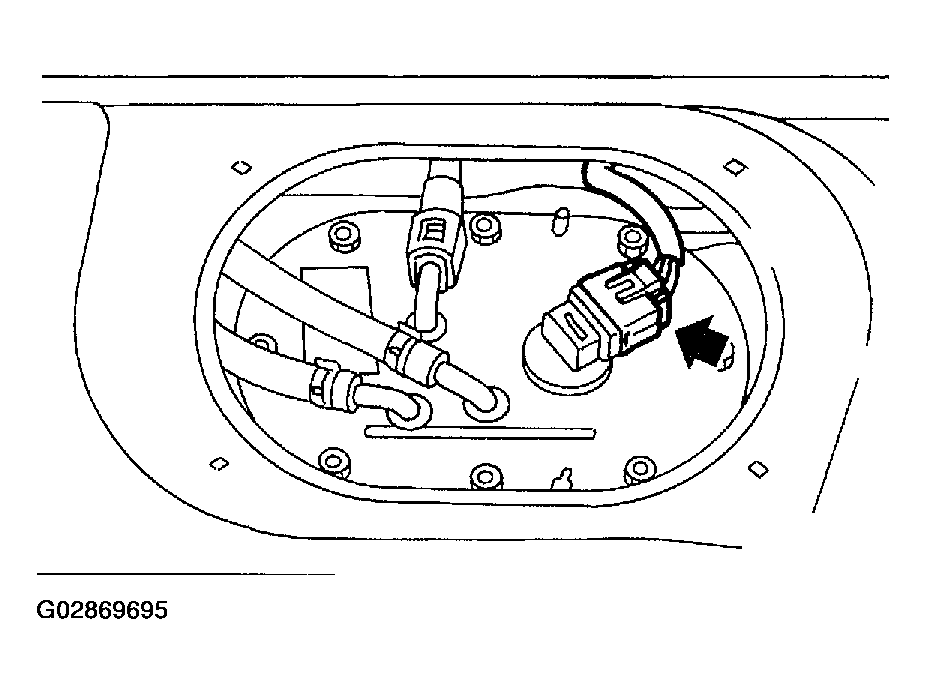

Fig 5: Disconnecting The Connector From The Fuel Pump
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the quick connector and then disconnect the fuel delivery hose (A). Refer to Fuel Delivery, Return and Evaporation Lines .

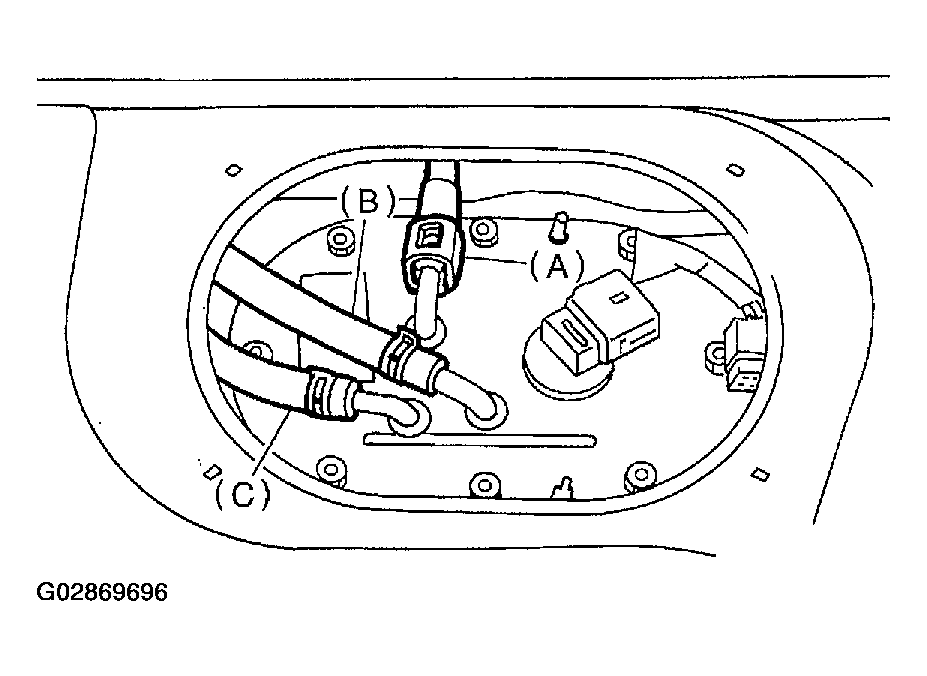

Fig 6: Disconnecting The Fuel Delivery Hose
Courtesy of SUBARU OF AMERICA, INC.
Move the clip and then disconnect the fuel return hose (B) and jet pump hose (C).
Remove the nuts which install the fuel pump assembly onto the fuel tank.

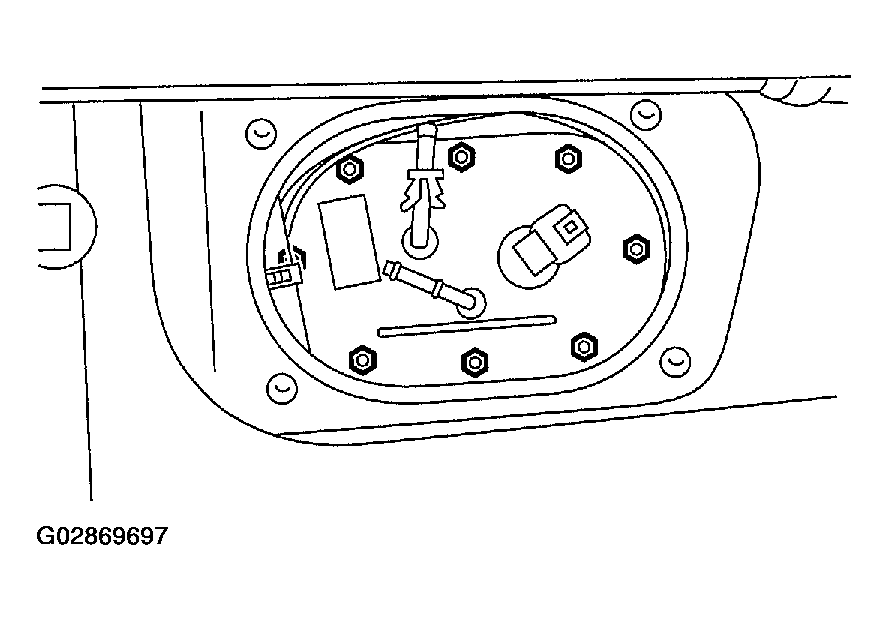

Fig 7: Removing The Nuts Which Install The Fuel Pump Assembly Onto The Fuel Tank
Courtesy of SUBARU OF AMERICA, INC.
Take off the fuel pump assembly from the fuel tank.
