Fuel Pump Relay: Removal

  1. Disconnect the battery ground cable.

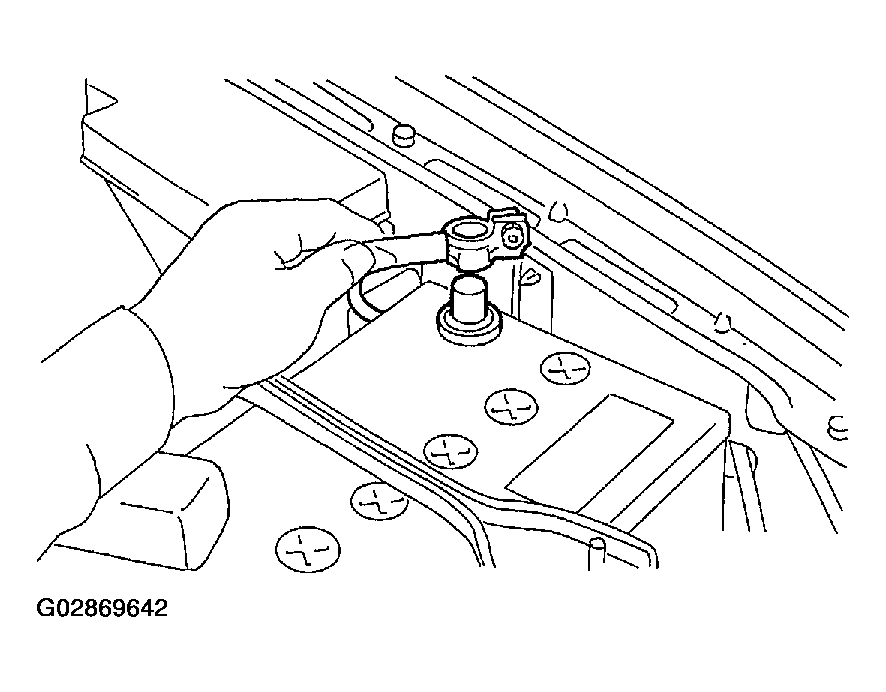

    Fig 1: Disconnecting The Battery Ground Cable
    G02869642Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the passenger's side front side sill cover.
  3. Remove the bolt which holds fuel pump relay bracket on the body.
  4. Disconnect the connector from the fuel pump.

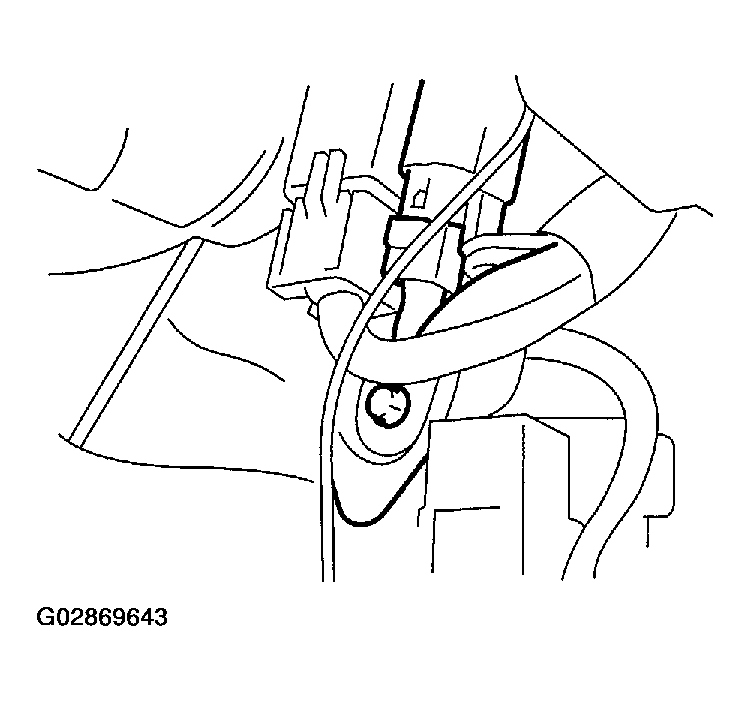

    Fig 2: Disconnecting The Connector From The Fuel Pump
    G02869643Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the fuel pump relay from the mounting bracket.
