Fuel Filler Pipe: Disassembly

Move the clip, and disconnect the evaporation hose from the joint pipe.

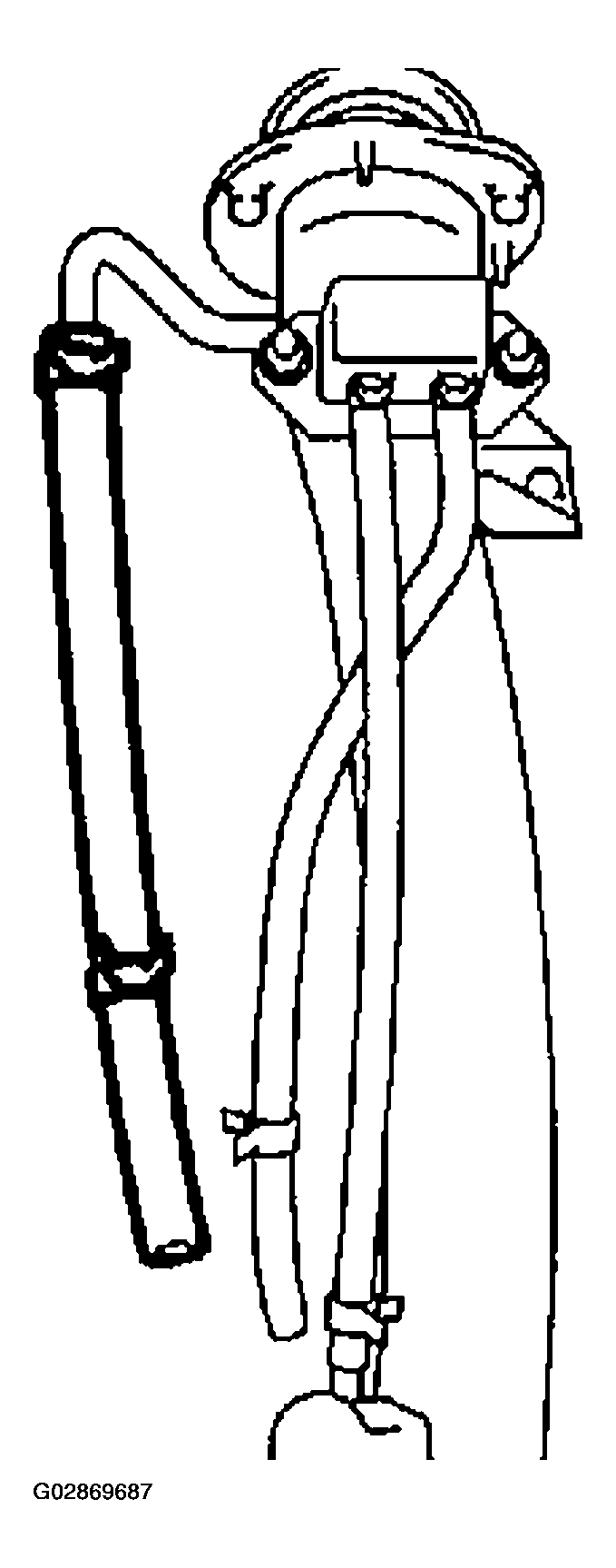

Fig 1: Disconnecting The Evaporation Hose From The Joint Pipe
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolt which installs the joint pipe on the fuel filler pipe.

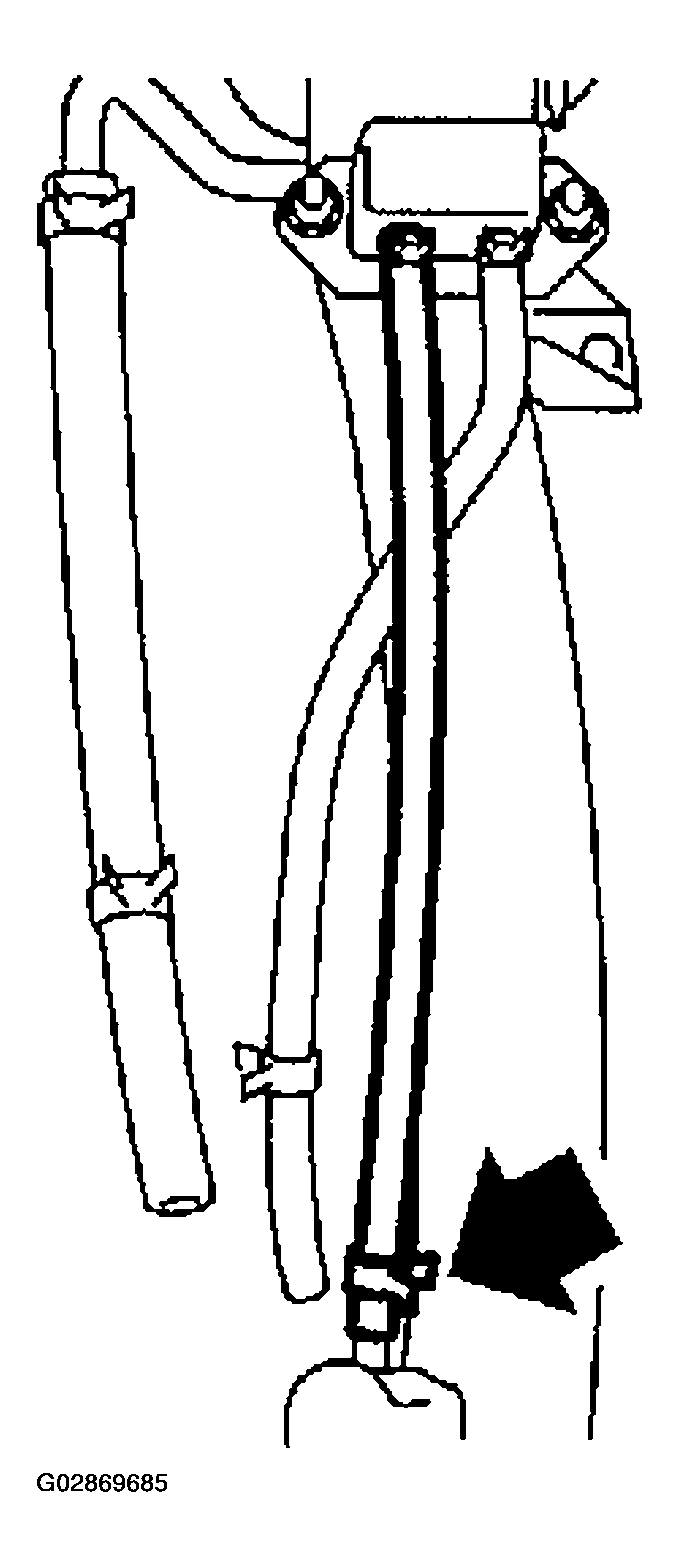

Fig 2: Removing The Bolt Which Installs The Joint Pipe On The Fuel Filler Pipe
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the evaporation hose from the fuel filler pipe.

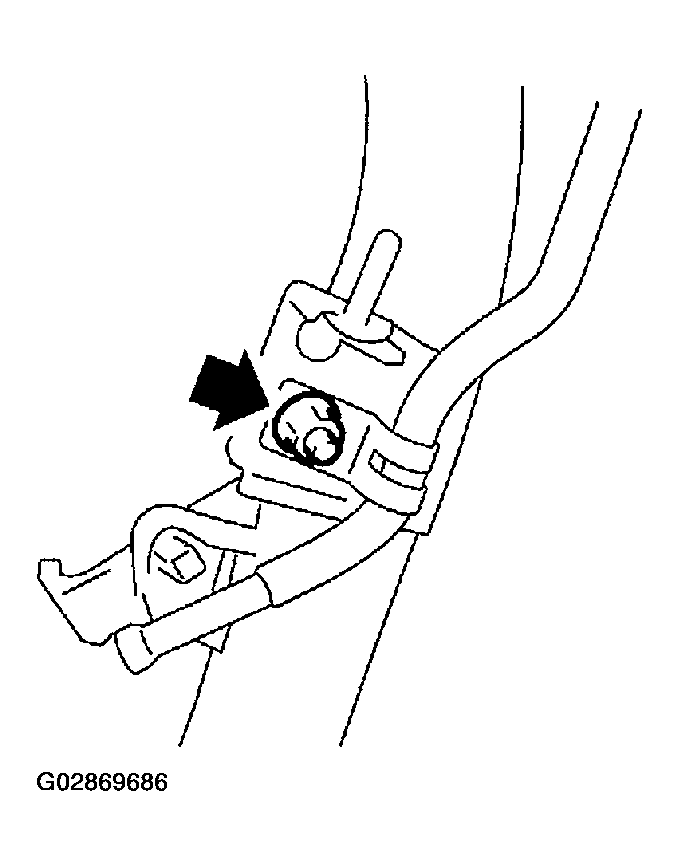

Fig 3: Disconnecting The Evaporation Hose From The Fuel Filler Pip
Courtesy of SUBARU OF AMERICA, INC.
Remove the shut valve from the fuel filler pipe. Refer to SHUT VALVE .
