Fuel Filler Pipe: Assembly

  1. Install the shut valve on the fuel filler pipe. Refer to SHUT VALVE .
  2. Connect the evaporation hose to the fuel filler pipe.

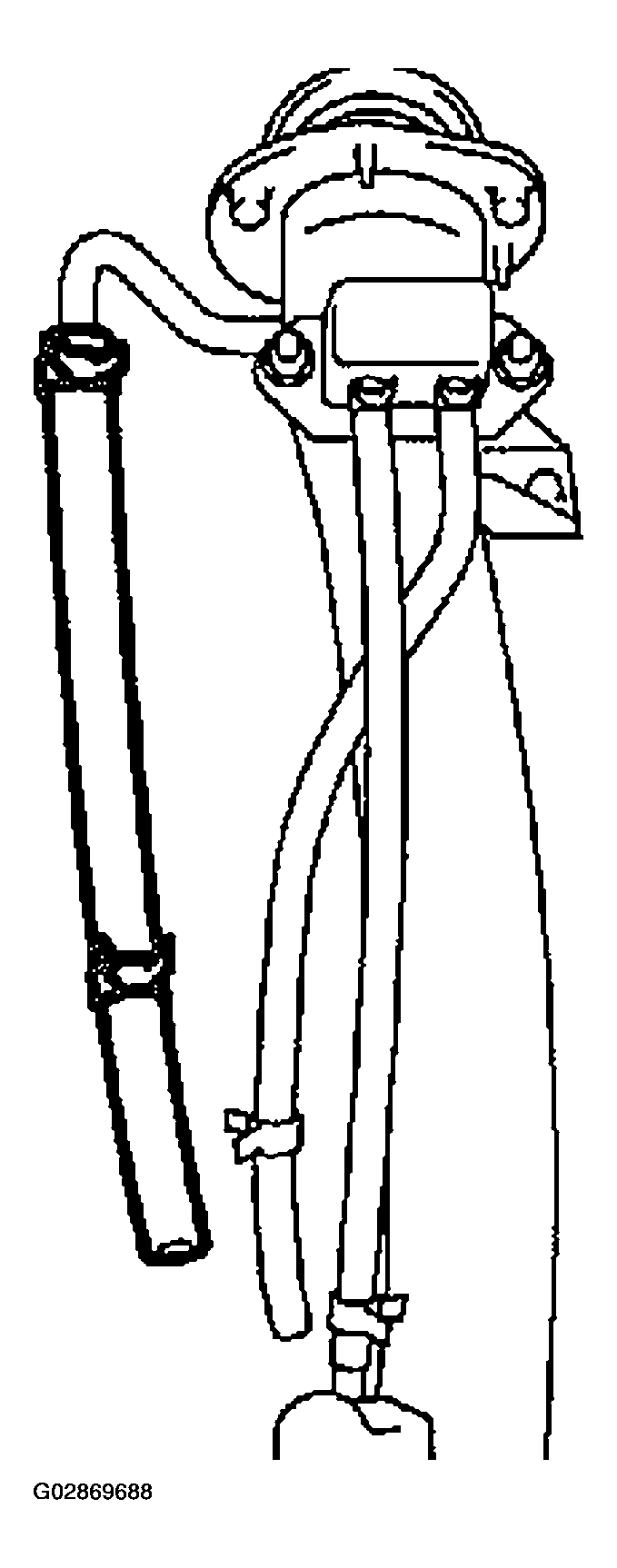

    Fig 1: Connecting The Evaporation Hose To The Fuel Filler Pipe
    G02869688Courtesy of SUBARU OF AMERICA, INC.
  3. Connect the evaporation hose to the evaporation pipe.

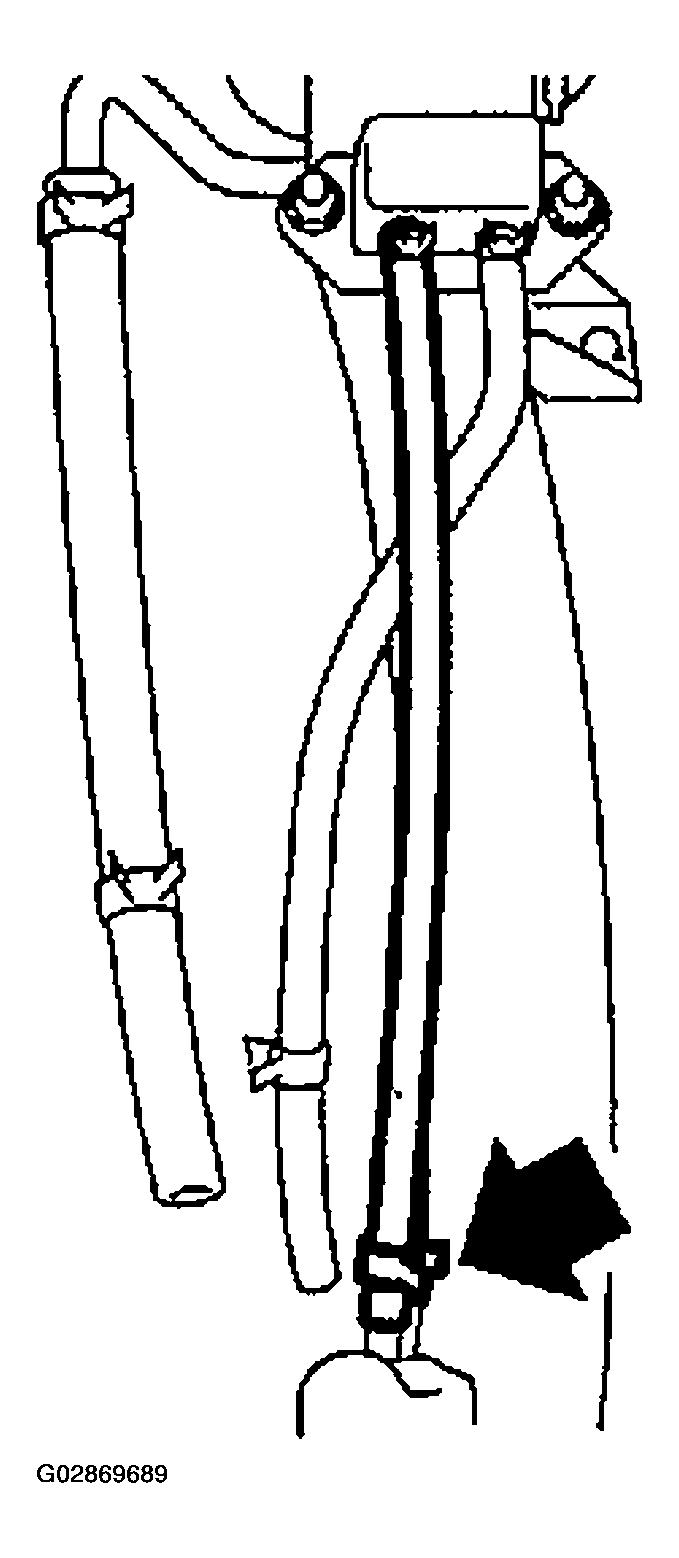

    Fig 2: Connecting The Evaporation Hose To The Evaporation Pipe
    G02869689Courtesy of SUBARU OF AMERICA, INC.
  4. Install the evaporation pipe to the fuel filler pipe.

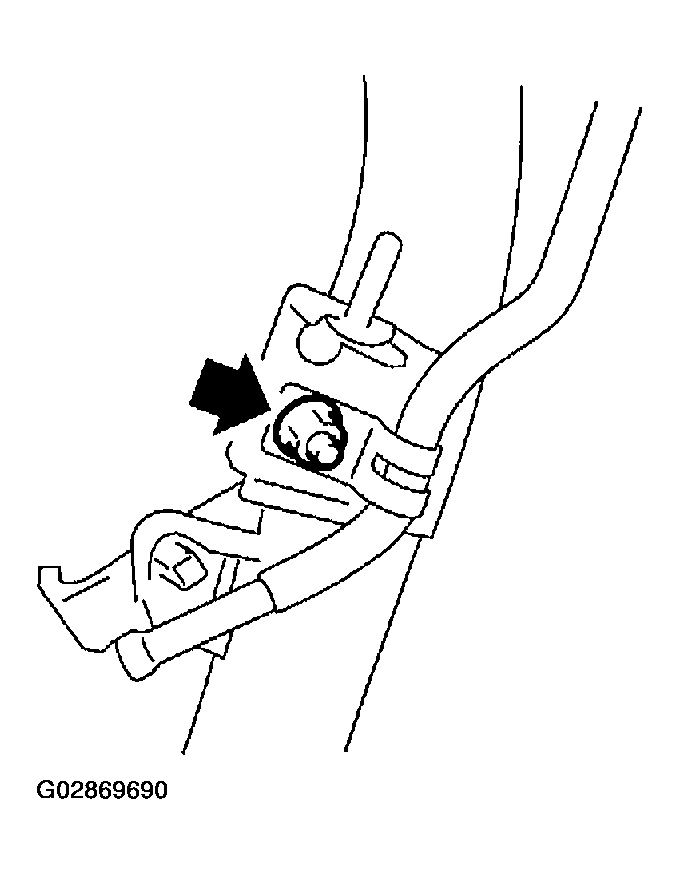

    Fig 3: Installing The Evaporation Pipe To The Fuel Filler Pipe
    G02869690Courtesy of SUBARU OF AMERICA, INC.
