Engine Control Module: Removal

  1. Disconnect the battery ground cable.

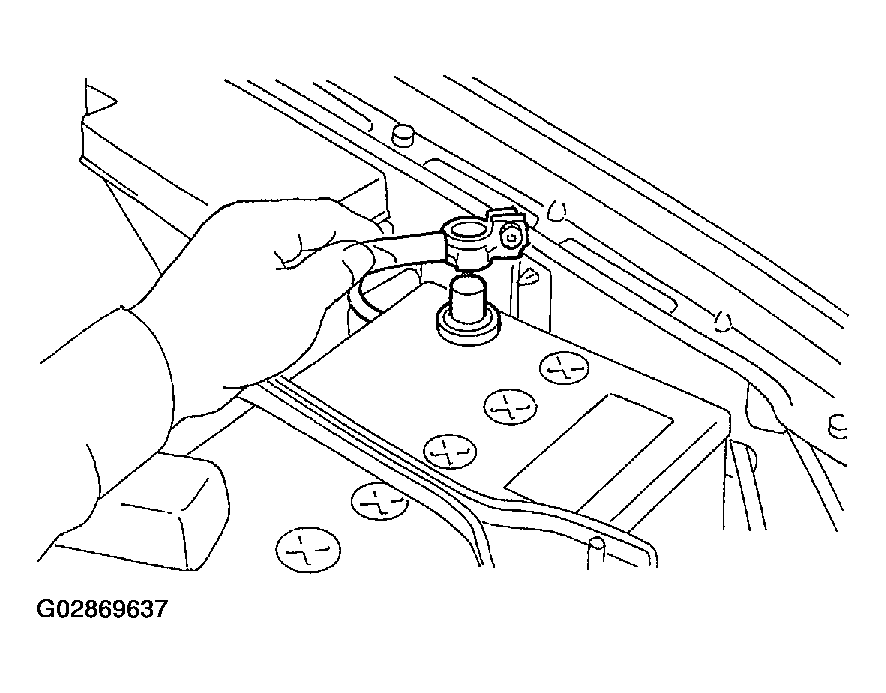

    Fig 1: Disconnecting The Battery Ground Cable
    G02869637Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the lower inner trim of passenger side. LOWER INNER TRIM .
  3. Detach the floor mat of front passenger seat.
  4. Remove the protect cover.
    Fig 2: Removing The Protect Cover
    G02869638Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the nuts (A) which hold ECM to the bracket.
  6. Remove the clip (B) from the bracket.
    Fig 3: Removing The Nuts Which Hold ECM To The Bracket And The Clip From The Bracket
    G02869639Courtesy of SUBARU OF AMERICA, INC.
  7. Disconnect the ECM connectors and take out the ECM.
