Crankshaft Position Sensor: Removal

  1. Disconnect the battery ground cable.
    Fig 1: Disconnecting The Battery Ground Cable
    G02869546Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the bolt which installs crankshaft position sensor to the cylinder block.

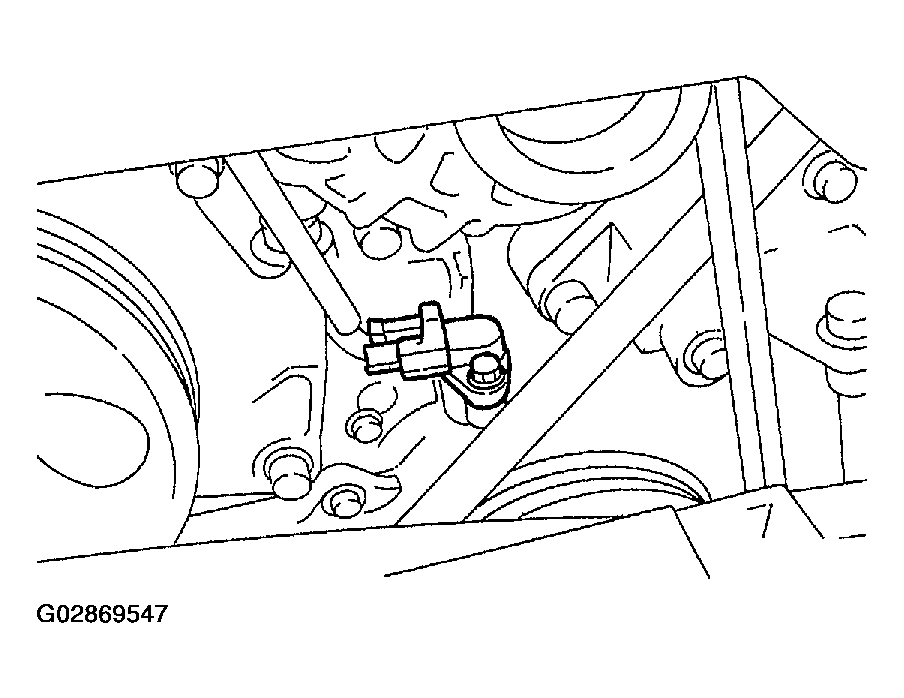

    Fig 2: Removing The Bolt Which Installs Crankshaft Position Sensor To The Cylinder Block
    G02869547Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the crankshaft position sensor, and disconnect the connector from it.

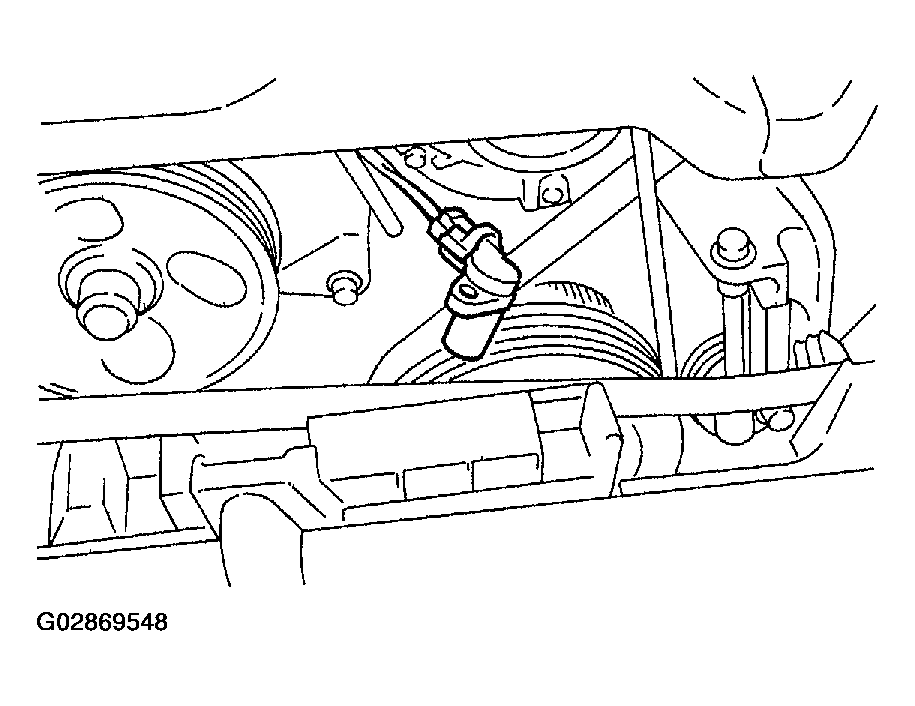

    Fig 3: Removing The Crankshaft Position Sensor
    G02869548Courtesy of SUBARU OF AMERICA, INC.
