Camshaft Position Sensor: Removal

Disconnect the battery ground cable.

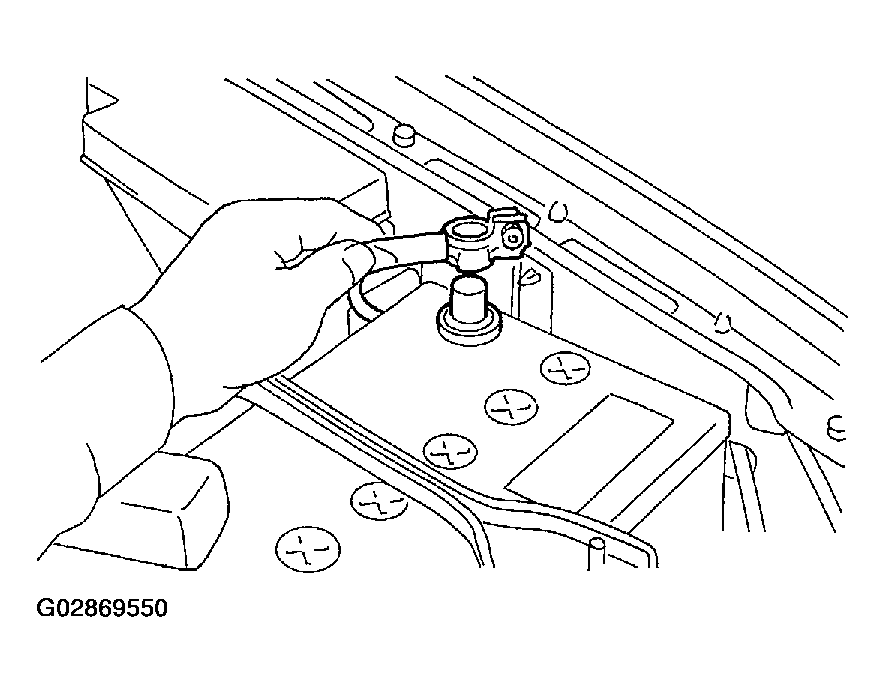

Fig 1: Disconnecting The Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from the camshaft position sensor.

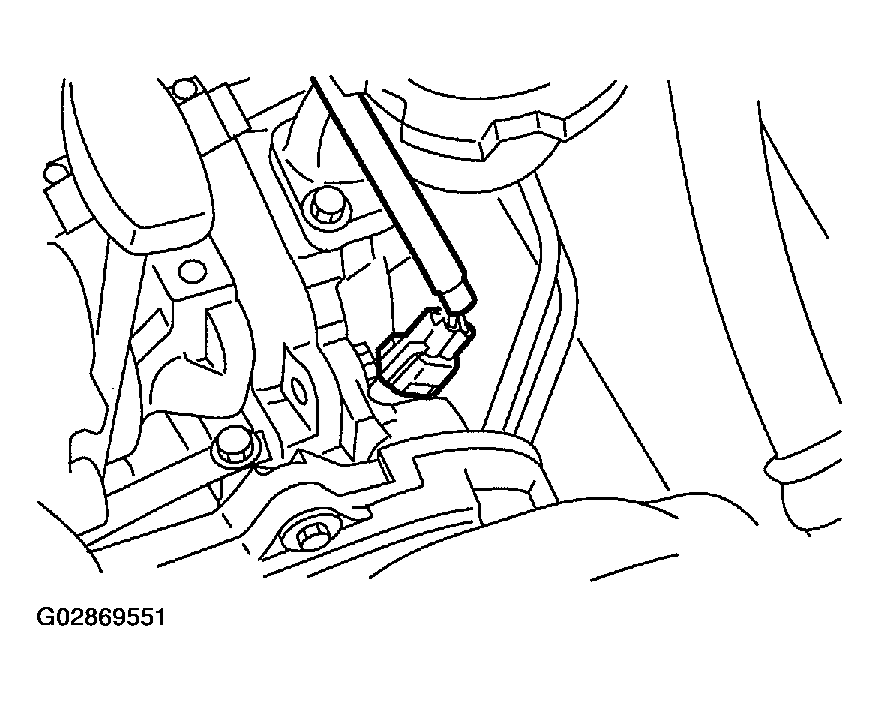

Fig 2: Disconnecting The Connector From The Camshaft Position Sensor
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolt which installs camshaft position sensor to the camshaft position sensor support.

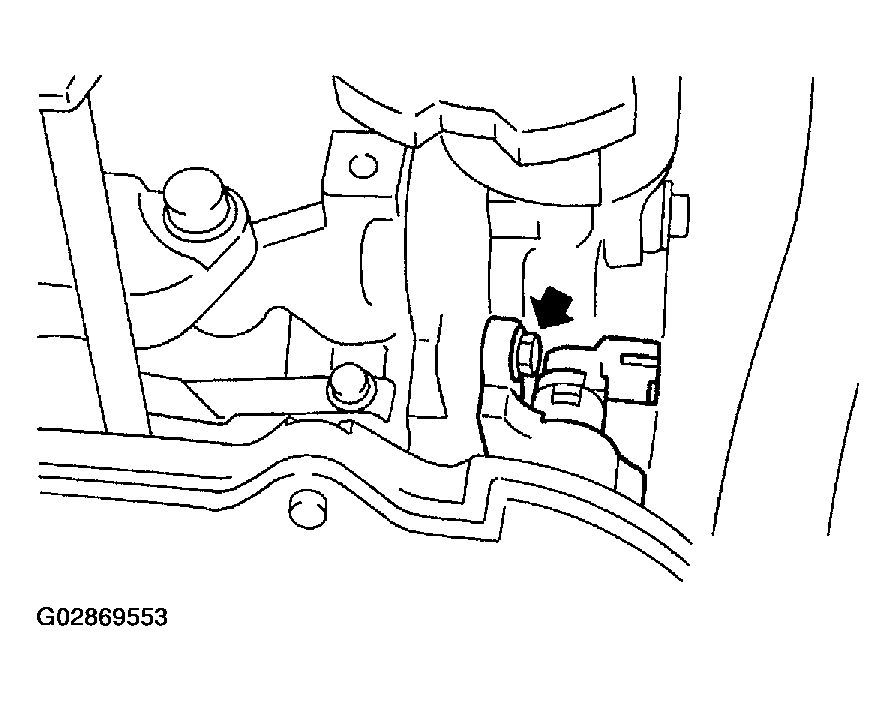

Fig 3: Removing The Bolt Which Installs Camshaft Position Sensor To The Camshaft Position Sensor Support
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolt which installs camshaft position sensor support to the camshaft cap LH.

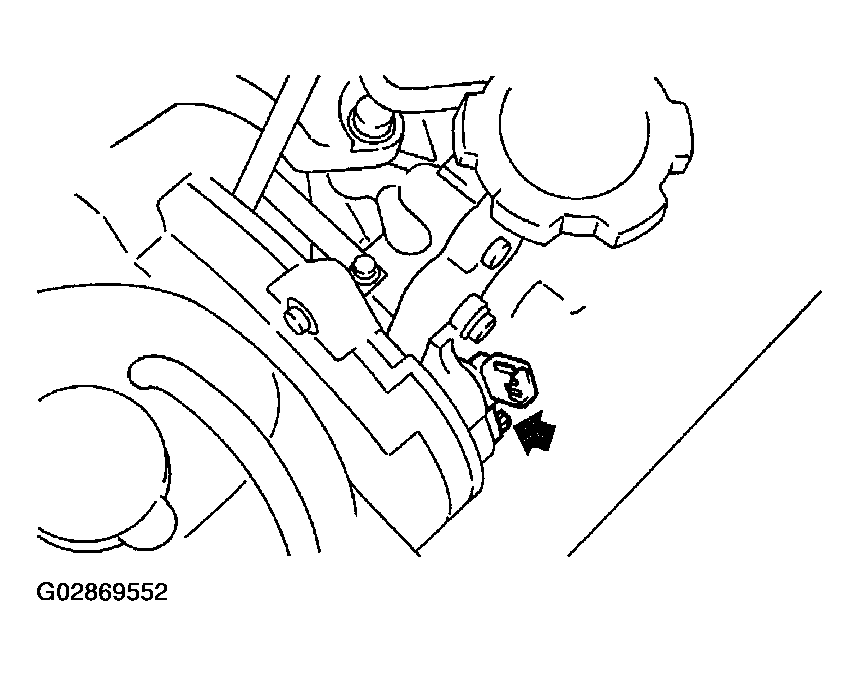

Fig 4: Removing The Bolt Which Installs Camshaft Position Sensor Support To The Camshaft Cap LH
Courtesy of SUBARU OF AMERICA, INC.
Remove the camshaft position sensor and camshaft position sensor support as a unit.
Remove the camshaft position sensor itself.

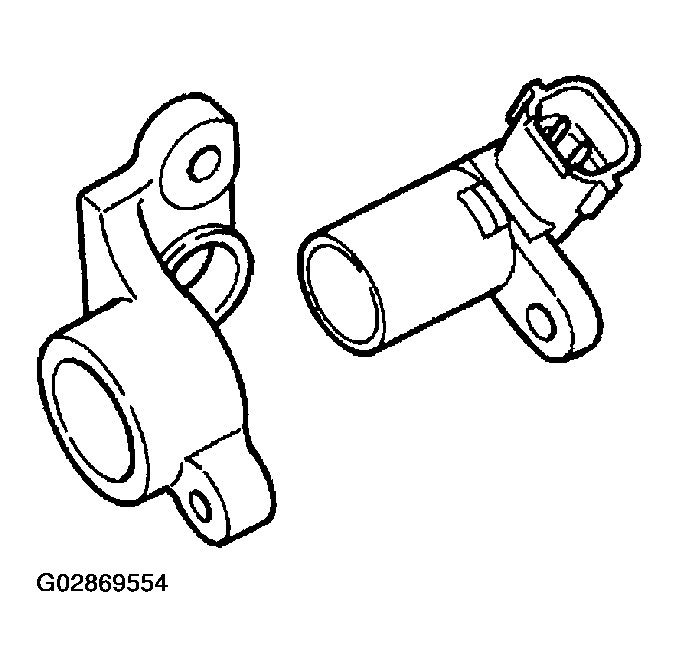

Fig 5: Removing The Camshaft Position Sensor

Courtesy of SUBARU OF AMERICA, INC.
