Abs Sequence Control With Diagnosis Connector

  1. Connect the diagnosis terminals to terminals No. 3 and No. 6 of the diagnosis connector beside driver's seat heater unit.

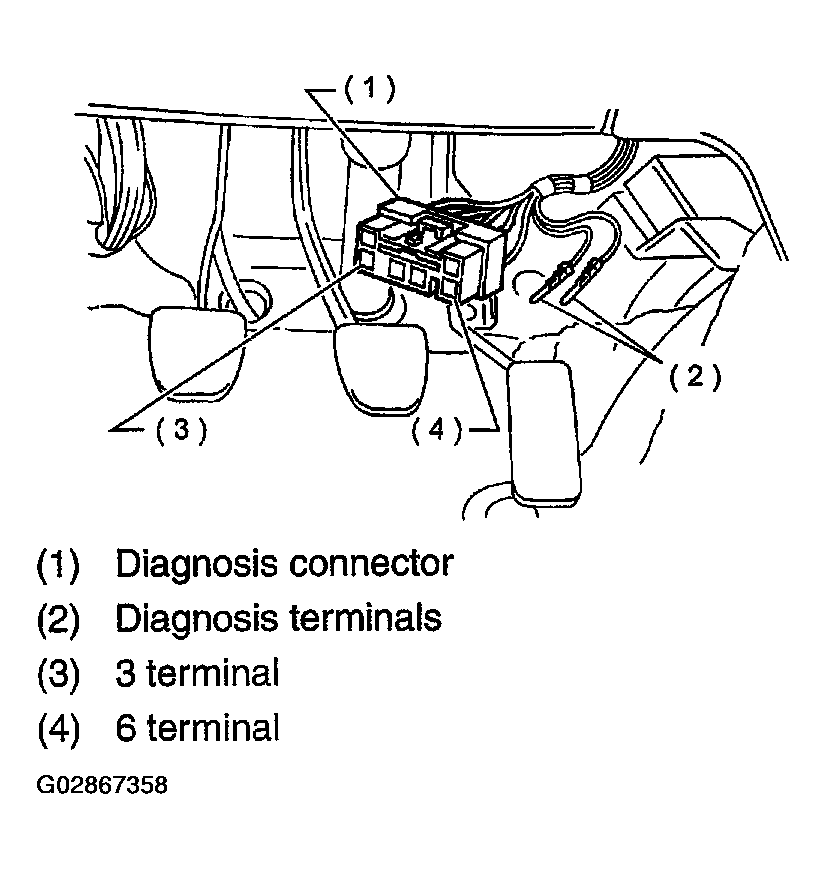

    Fig 1: Identifying ABS Sequence Control Diagnosis Connector
    G02867358Courtesy of SUBARU OF AMERICA, INC.
  2. Set the speed of all wheels at 4 km/h (2 MPH) or less.
  3. Turn the ignition switch OFF.
  4. Within 0.5 seconds after the ABS warning light goes out, depress the brake pedal and hold it immediately after the ignition switch is turned to ON.
    CAUTION: Do not depress the clutch pedal.
    NOTE:
    • When the ignition switch is set to on, the brake pedal must not be depressed.
    • Engine must not operate.
  5. After completion of ABS sequence control, turn the ignition switch OFF.
