Abs Control Module And Hydraulic Control Unit (ABSCM & H/U): Inspection: Notes

  1. Check the connected and fixed condition of connector.
  2. Check the specifications of the mark with ABSCM & H/U.
    MODEL MARK SPECIFICATION

    Mark Model
    CC AT
    CD MT

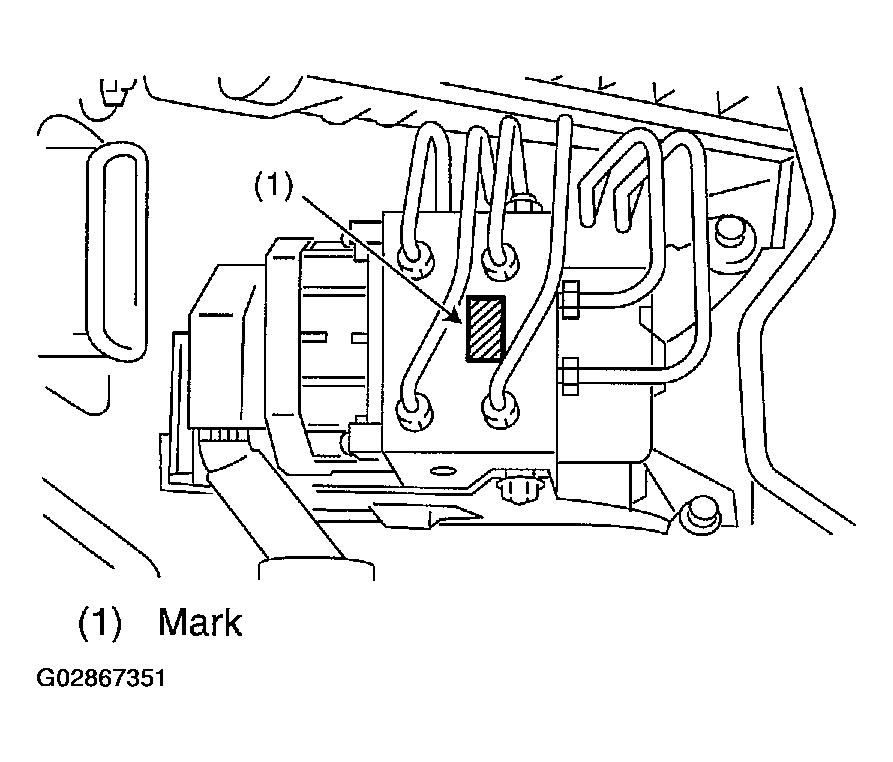

    Fig 1: Identifying Mark On ABSCM & H/U Bracket
    G02867351Courtesy of SUBARU OF AMERICA, INC.
