Control Module I/O Signal: Schematic

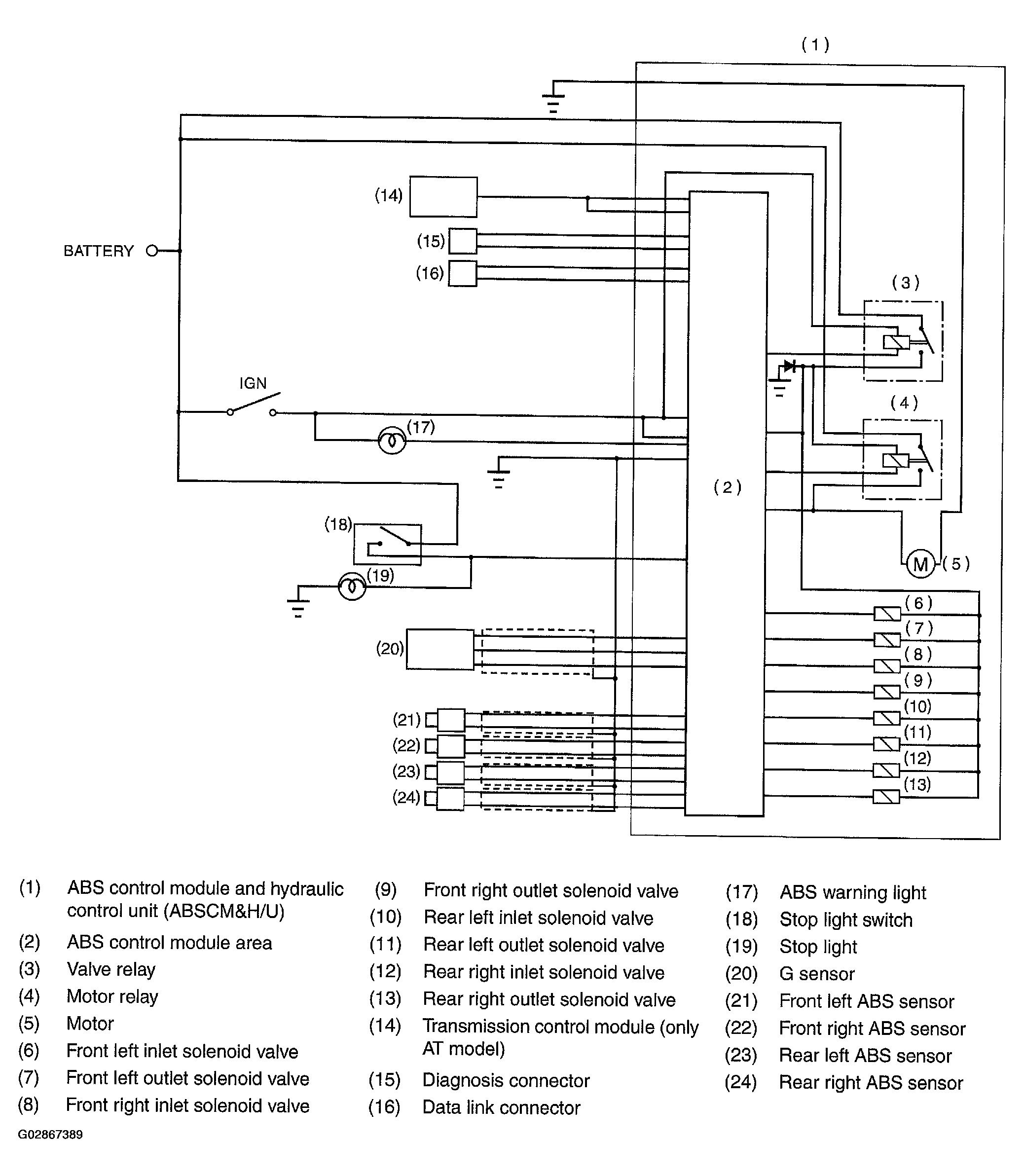

Fig 1: ABS I/O Signal Voltage Schematic

G02867389

Courtesy of ISUZU MOTOR CO.
