Electrical Specification

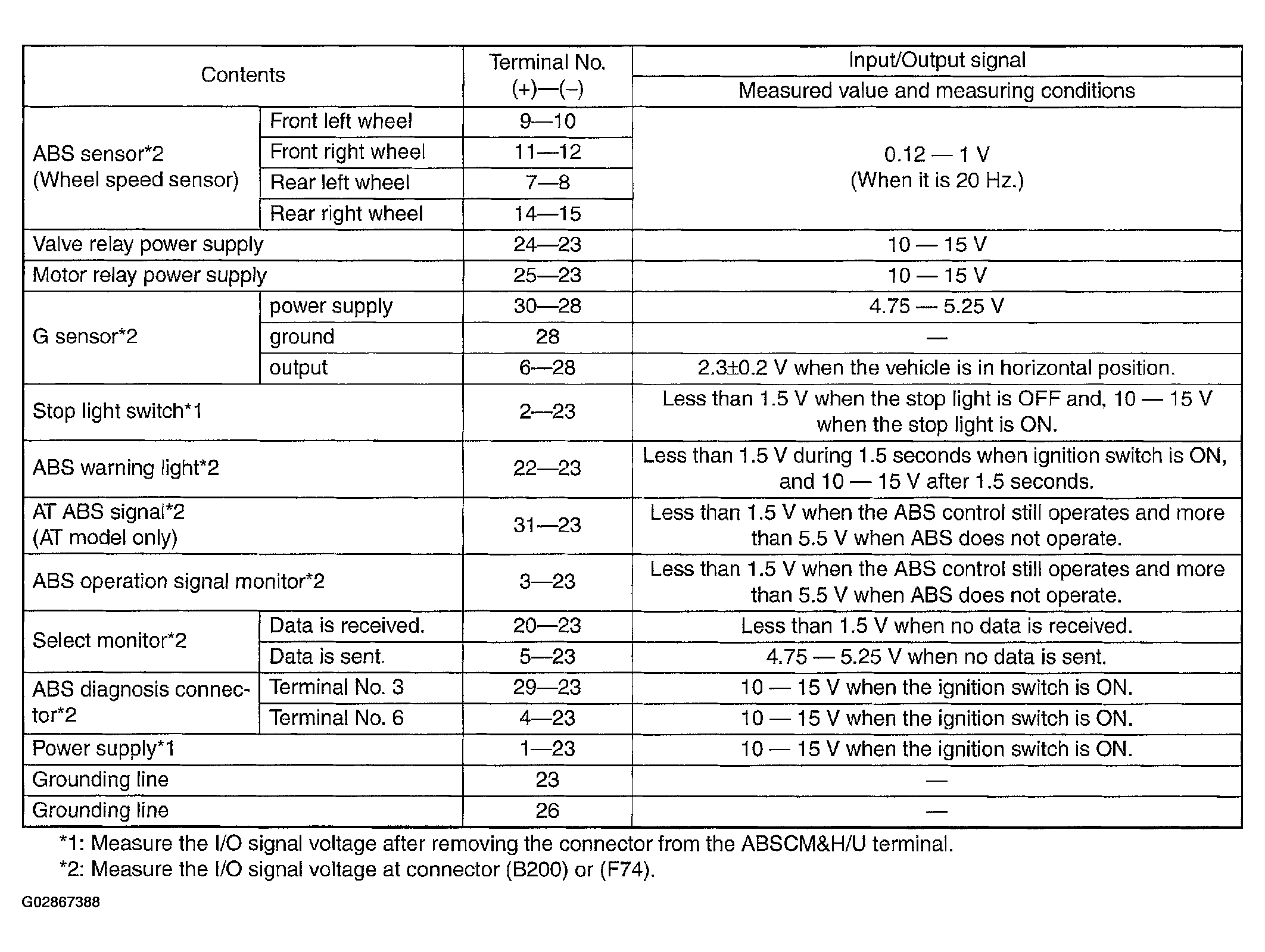

Fig 1: Control Module I/O Signal Electrical Specification

Courtesy of ISUZU MOTOR CO.

NOTE:

The terminal numbers in the ABS control module and hydraulic control unit connector are as shown in the figure.
When the connector is removed from the ABSCM & H/U, the connector switch closes the circuit between terminal No.22 and No. 23. The ABS warning light illuminates.

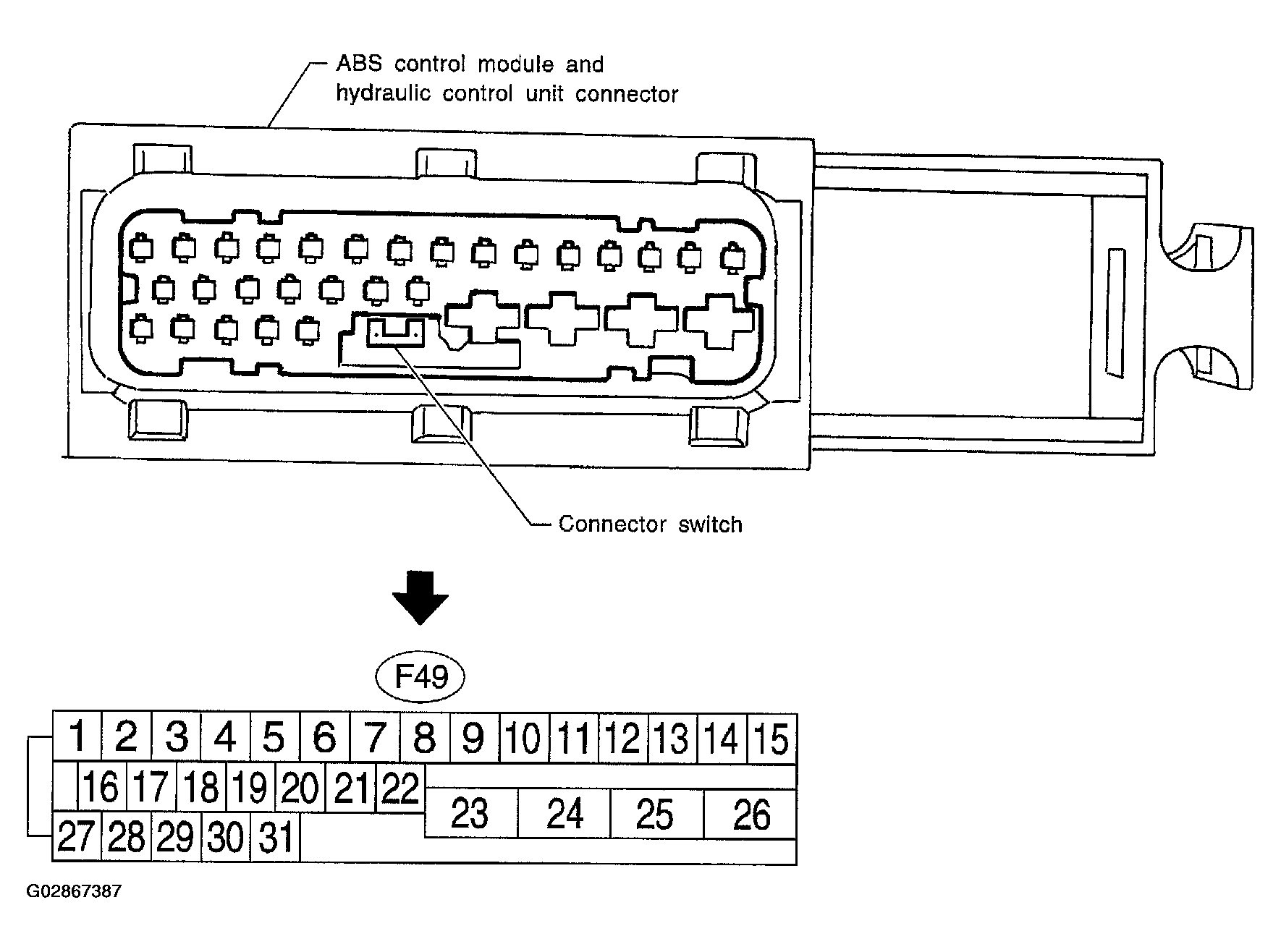

Fig 2: Identifying Terminal Numbers For ABS Control Module & Hydraulic Control Unit Connector

Courtesy of ISUZU MOTOR CO.
