Without SUBARU Select Monitor

  1. After calling up a diagnostic trouble code (DTC), disconnect the diagnosis connector terminal 6 from diagnosis terminal.

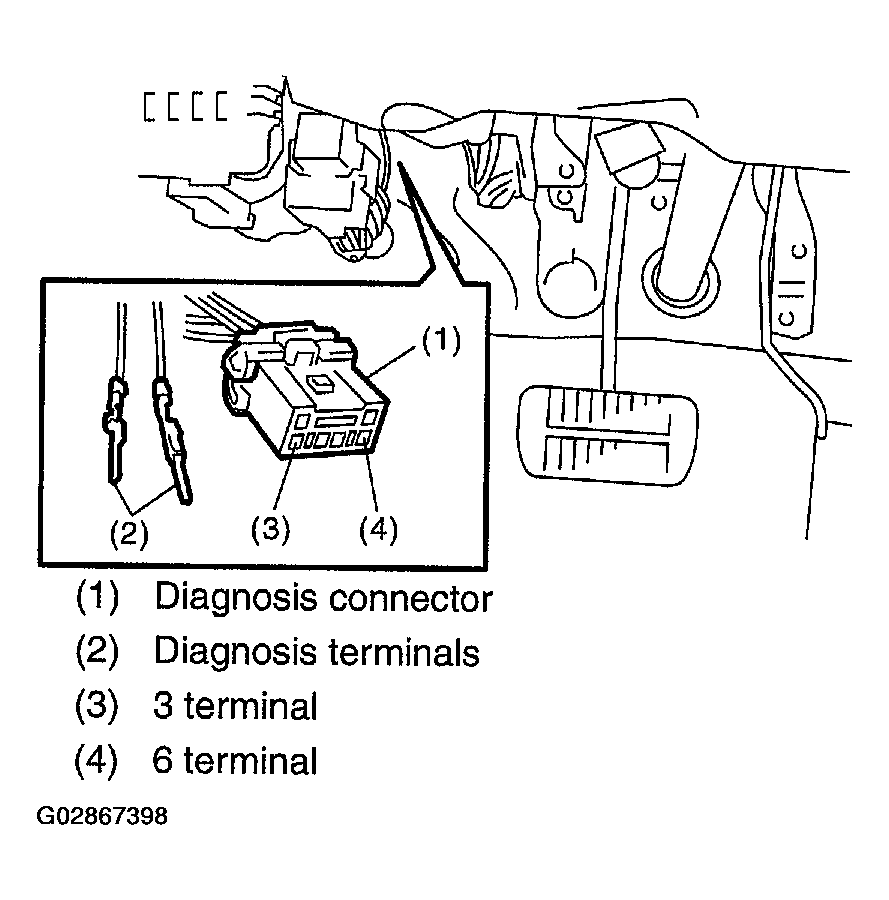

    Fig 1: Disconnecting Diagnosis Connector Terminal 6
    G02867398Courtesy of ISUZU MOTOR CO.
  2. Repeat 3 times within approx. 12 seconds; connecting and disconnecting terminal 6 and diagnosis terminal for at least 0.2 seconds each time.
    Fig 2: Connecting & Disconnecting Terminal 6 & Diagnosis Terminal
    G02867399Courtesy of ISUZU MOTOR CO.
    NOTE: After diagnostics is completed, make sure to clear memory. Make sure only start code (11) is shown after memory is cleared.
