Rear Window Glass: Installation

  1. Bond the dam rubber and matching pin.

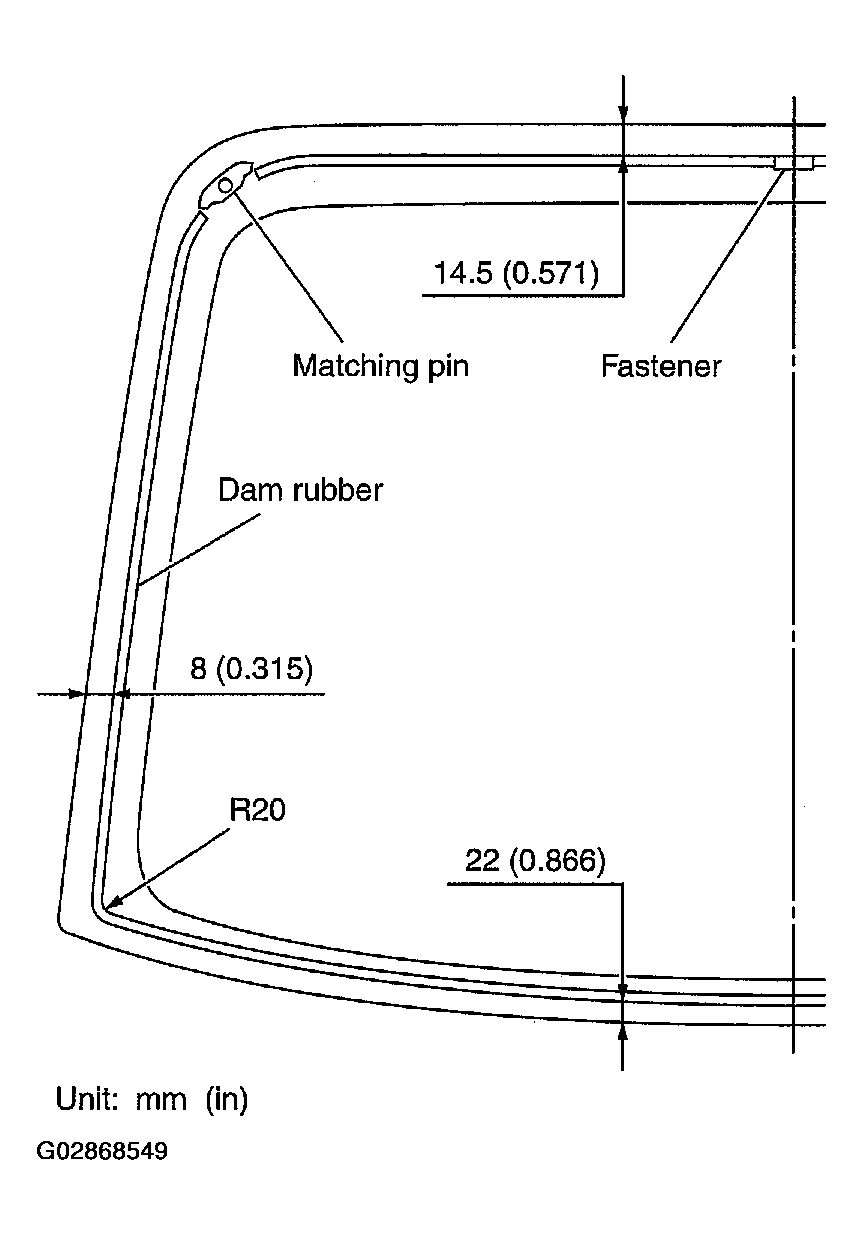

    Fig 1: Identifying Dam Rubber And Matching Pin
    G02868549Courtesy of SUBARU OF AMERICA, INC.
  2. Install the glass in the same procedure as for windshield glass. Refer to INSTALLATION  , Windshield Glass.
  3. Connect the rear defogger terminals.
    CAUTION:
    • When door is opened/closed after glass is bonded, always lower door glass and then open/close door carefully.
    • Move vehicle slowly.
  4. After completion of all work, allow the vehicle to stand for about 24 hours.
    NOTE: For minimum drying time and time the vehicle must be left standing before driving after bonding, follow instructions or instruction manual from the adhesive manufacturer.
  5. After curing of adhesive, pour the water on external surface of vehicle to check that there are no water leaks.
    CAUTION: When a vehicle is returned to the user, tell him or her that the vehicle should not be subjected to heavy impact for at least three days.
