Rear Regulator And Motor Assembly: Removal

  1. Remove the door glass. Refer to REMOVAL  , Rear Door Glass.
  2. Remove the front sash.
  3. Disconnect the motor connector.
  4. Loosen four bolts and two nuts to remove regulator assembly.

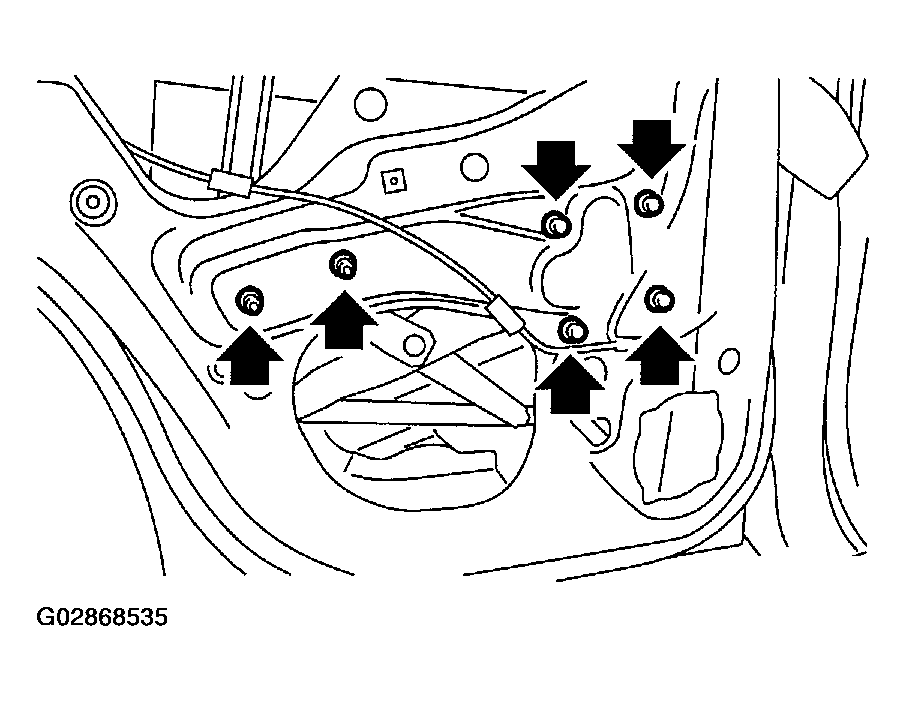

    Fig 1: Loosening Bolts And Nuts To Remove Regulator Assembly
    G02868535Courtesy of SUBARU OF AMERICA, INC.
  5. Loosen screws to remove motor assembly.
    Fig 2: Removing Motor Assembly
    G02868536Courtesy of SUBARU OF AMERICA, INC.
