Front Regulator And Motor Assembly: Removal

Remove the door glass. Refer to REMOVAL , Front Door Glass.
Loosen the nuts to remove the rear sash.

Fig 1: Removing Rear Sash
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the motor connector.

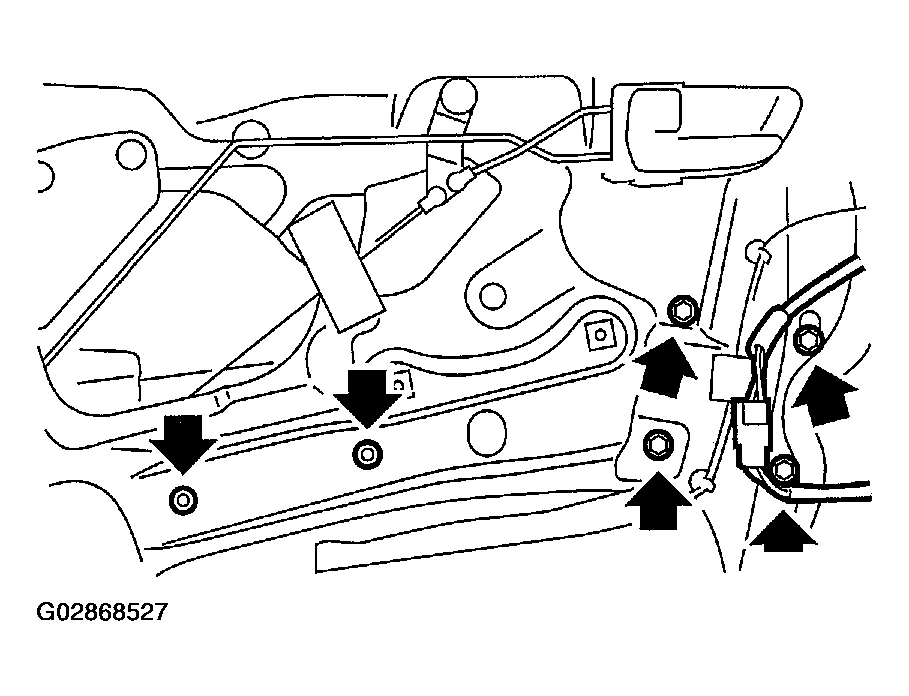

Loosen four bolts and two nuts to remove the regulator assembly.

Fig 2: Disconnecting Motor Connector
Courtesy of SUBARU OF AMERICA, INC.

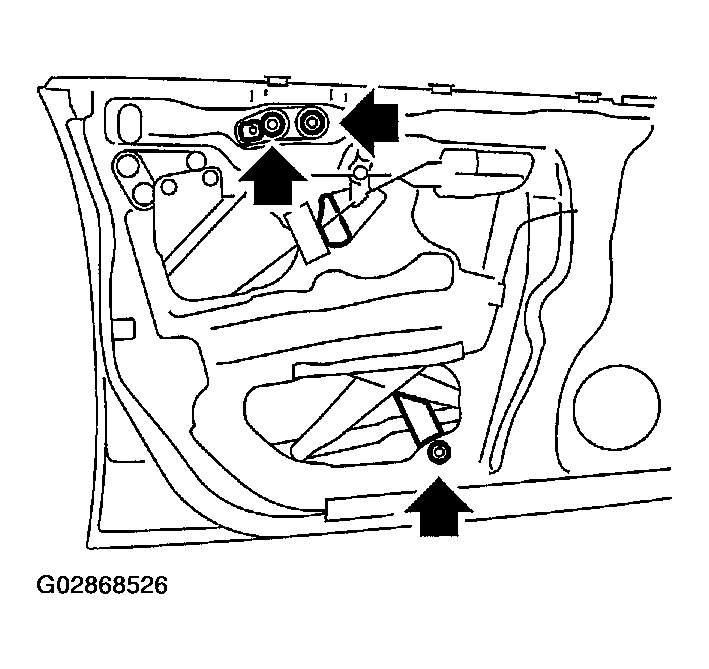

Loosen the screw to remove motor assembly.

Fig 3: Removing Motor Assembly
Courtesy of SUBARU OF AMERICA, INC.
