Turn Signal & Hazard Module

Connect the battery and turn signal light bulb to the module, as shown in the figure. The module is properly functioning if it blinks when power is supplied to the circuit.

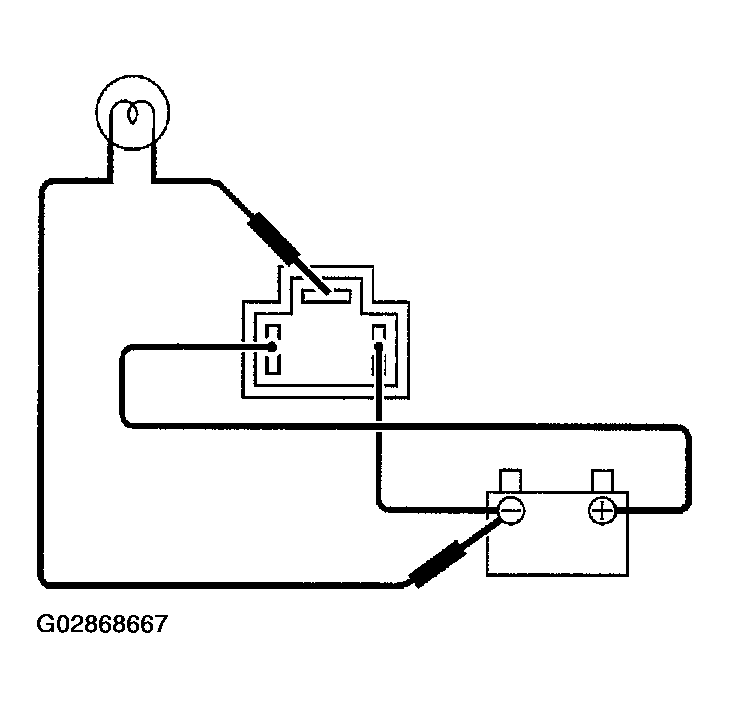

Fig 1: Testing Turn Signal And Hazard Module
G02868667Courtesy of SUBARU OF AMERICA, INC.
