Spot Light: Removal

  1. Disconnect the ground terminal from battery.
  2. Remove the lens (A) and spot light mounting screw (B).

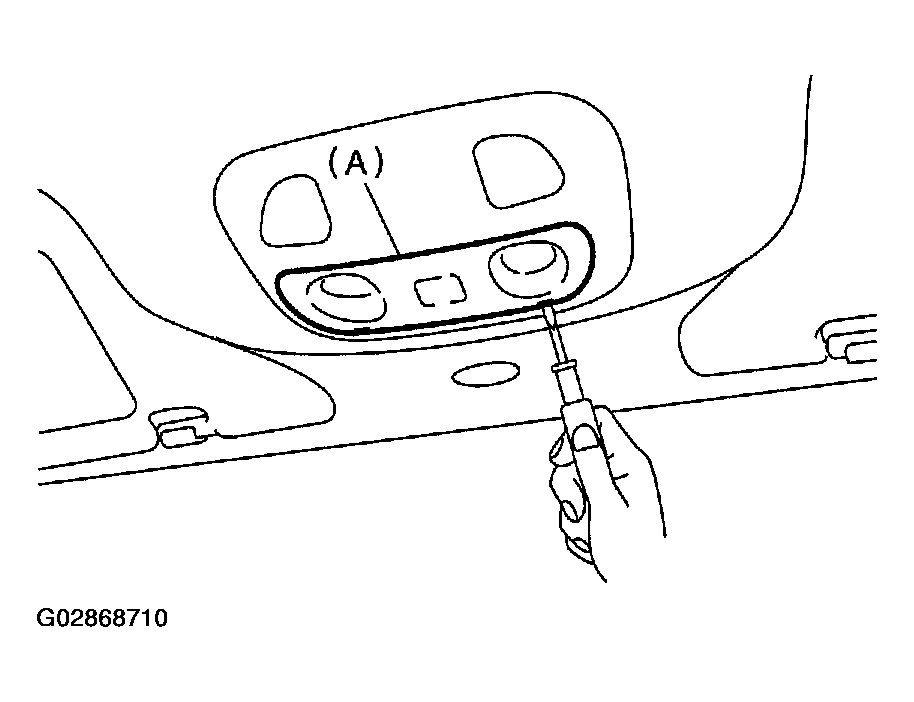

    Fig 1: Removing Lens
    G02868710Courtesy of SUBARU OF AMERICA, INC.

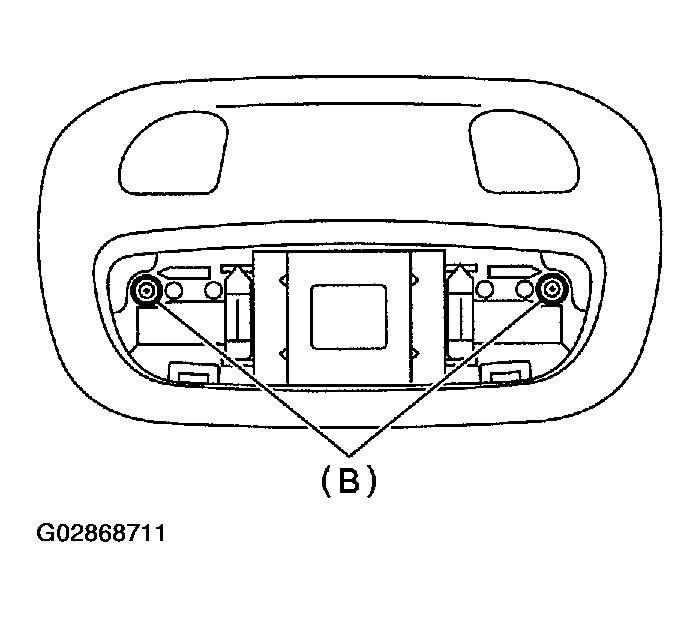

    Fig 2: Removing Spot Light Mounting Screw
    G02868711Courtesy of SUBARU OF AMERICA, INC.
  3. Disconnect the harness connectors and remove the spot light.
