Room Light: Removal

  1. Disconnect the ground terminal from battery.
  2. Remove the lens (A) and room light mounting screws (B).

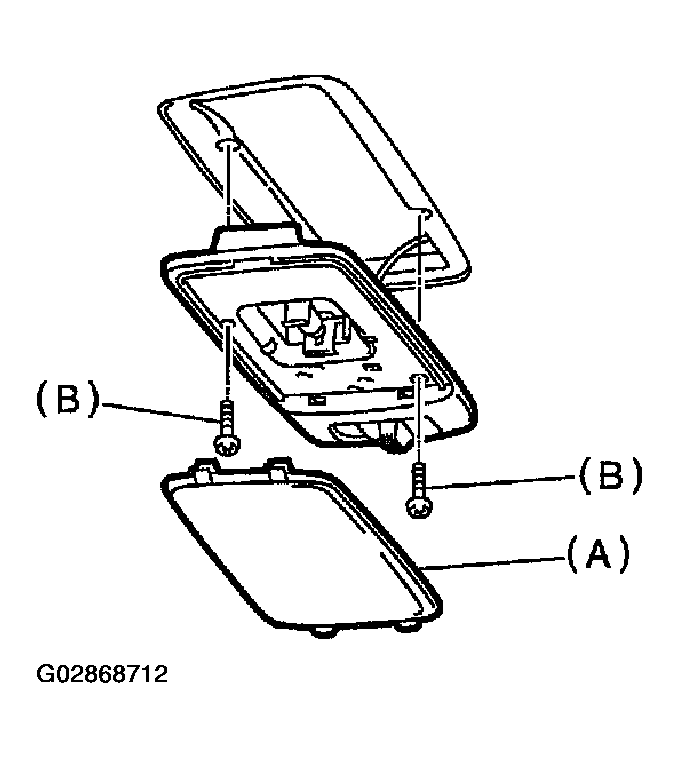

    Fig 1: Removing Lens And Room Light Mounting Screws
    G02868712Courtesy of SUBARU OF AMERICA, INC.
  3. Disconnect the harness connectors and remove the light.
