Room Light Switch

Measure the room light switch resistance.

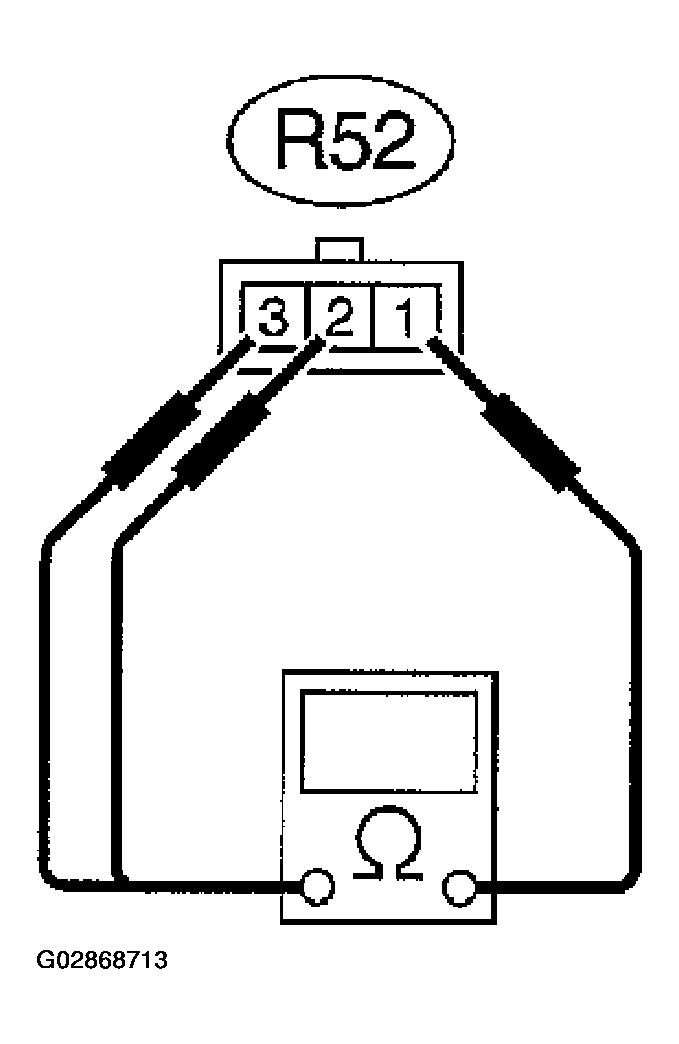

Fig 1: Measuring Room Light Switch Resistance
G02868713Courtesy of SUBARU OF AMERICA, INC.
ROOM LIGHT SWITCH RESISTANCE CHART

Switch position Terminal No. Standard
OFF - More than 1 Mohm
ON 1 and 3 1.5 +/- 0.5ohm
DOOR 1 and 2 1.5 +/- 0.5ohm
