Combination Switch (Light): Inspection: Notes

Measure the combination switch resistance.

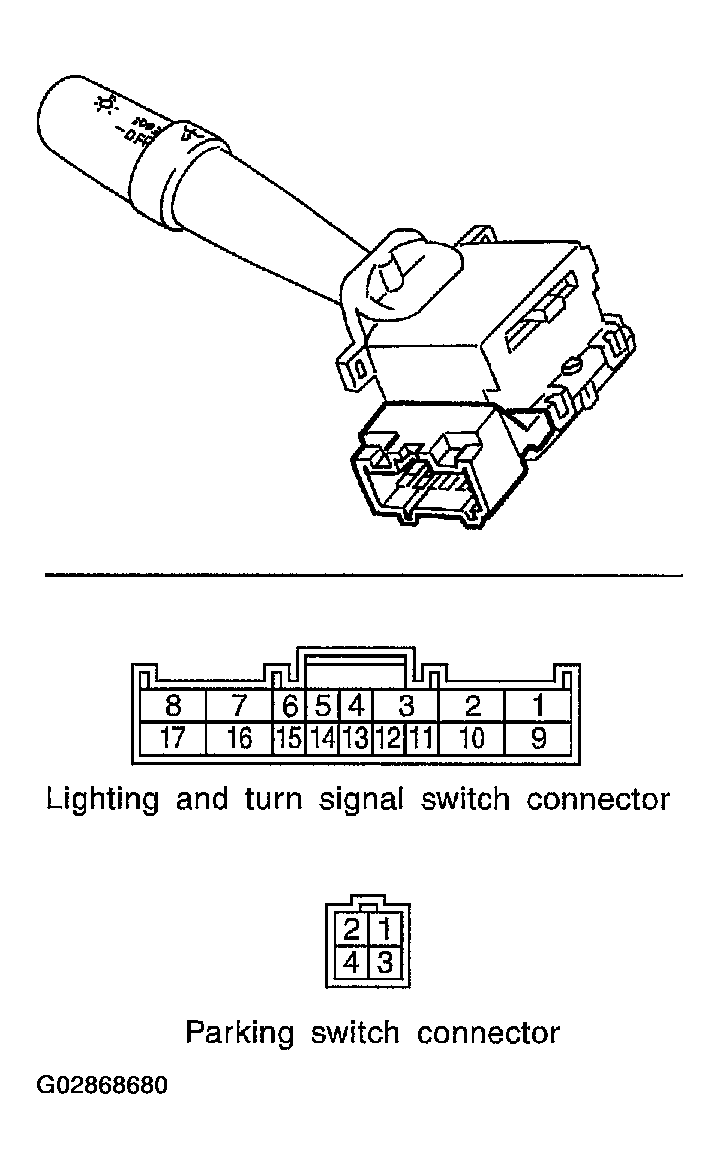

Fig 1: Identifying Combination Switch Terminals

G02868680

Courtesy of SUBARU OF AMERICA, INC.
