Master Cylinder: Installation

WARNING: This page is about a different variant/trim than selected.

Install the master cylinder to body, and install the clutch pipe to master cylinder.
CAUTION: Check that the pipe is routed properly.

Tightening torque:

T1: 15 N.m (1.5 kgf-m, 10.8 ft-lb)

T2: 18 N.m (1.8 kgf-m, 13.0 ft-lb)

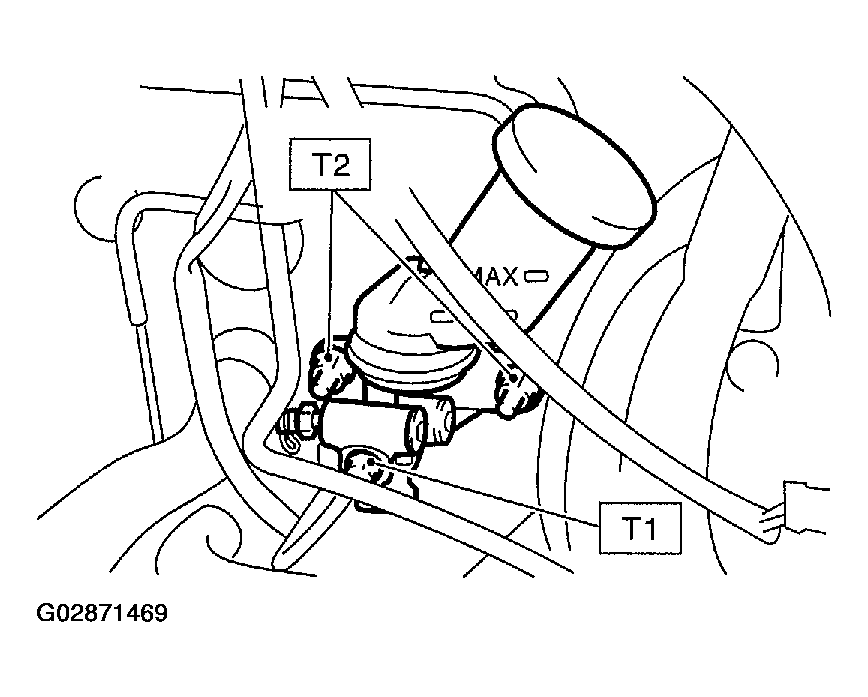

Fig 1: Installing Clutch Pipe To Master Cylinder
Courtesy of SUBARU OF AMERICA, INC.
Connect the push rod of master cylinder to clutch pedal, and install the clevis pin and snap pin.
NOTE: Apply grease to the clevis pin.

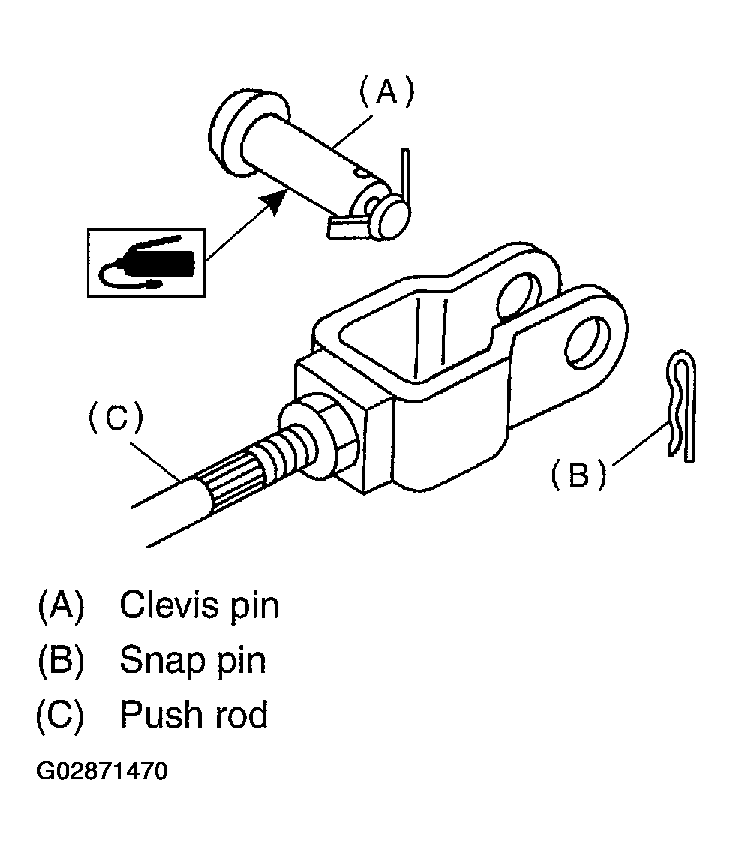

Fig 2: Connecting Push Rod Of Master Cylinder To Clutch Pedal & Installing Clevis Pin & Snap Pin
Courtesy of SUBARU OF AMERICA, INC.
After bleeding air from the system, ensure that the clutch operates properly.
Refer to , CLUTCH FLUID AIR BLEEDING .
Install the air cleaner case and air intake duct (Non-turbo model). Refer to INSTALLATION , Air Cleaner Case and INSTALLATION , Air Intake Duct.
Install the intercooler (Turbo model). Refer to INSTALLATION , Intercooler.
