Master Cylinder: Assembly

WARNING: This page is about a different variant/trim than selected.

Install the clutch damper. (Non-turbo model)
Tightening torque: 46.6 N.m (4.75 kgf-m, 34.4 ft-lb)
Apply a coat of grease to the contacting surfaces of the push rod and piston before installation.
Grease: SILICONE GREASE G40M (Part No. 004404003)

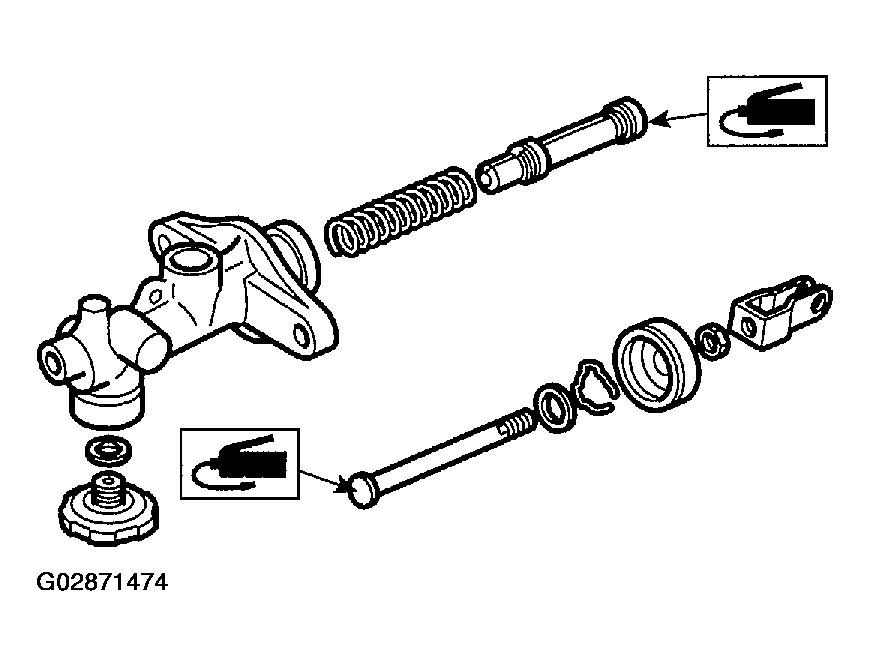

Fig 1: Identifying Components Of Master Cylinder Assembly
Courtesy of SUBARU OF AMERICA, INC.
To assemble the master cylinder, reverse the sequence of disassembly procedure.
Tightening torque: 10 N.m (1.0 kgf-m, 7 ft-lb)
