Section 12 (Clutch System): Flywheel: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transmission assembly. Refer to REMOVAL , Manual Transmission Assembly.
  2. Remove the clutch cover and clutch disc. Refer to REMOVAL , Clutch Disc and Cover.
    CAUTION:
    • Take care not to allow oil on the clutch disc facing.
    • Do not disassemble either the clutch cover or clutch disc.
  3. Using ST, remove the flywheel.

    ST 498497100 CRANKSHAFT STOPPER

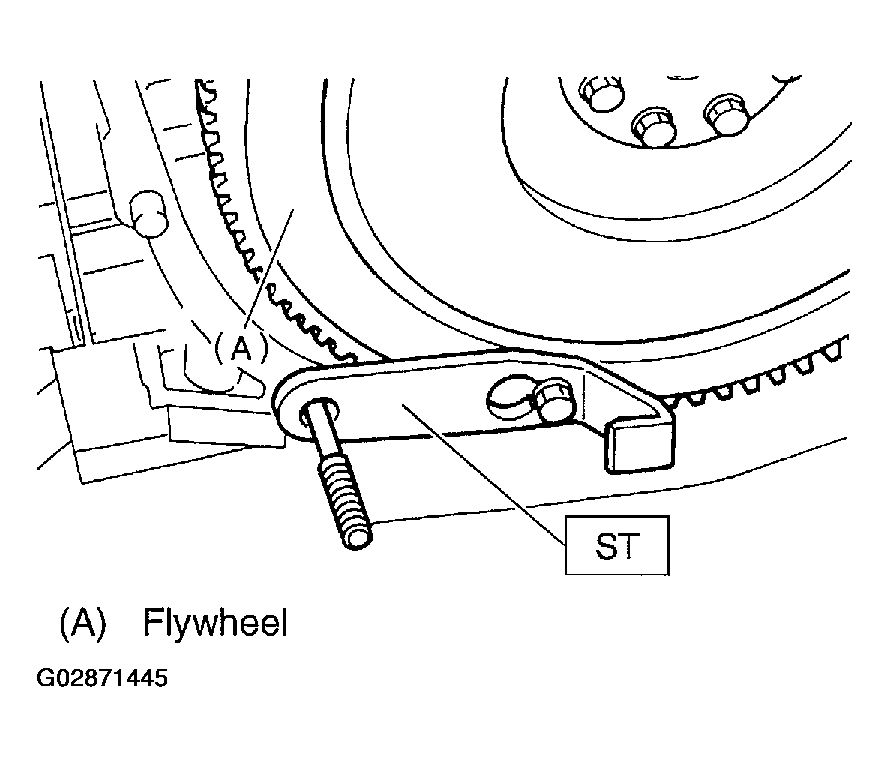

    Fig 1: Removing Flywheel
    G02871445Courtesy of SUBARU OF AMERICA, INC.
