Console Box: Removal

WARNING: This page is about a different car, the 2003 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the ground cable from battery.
Remove the console front cover.

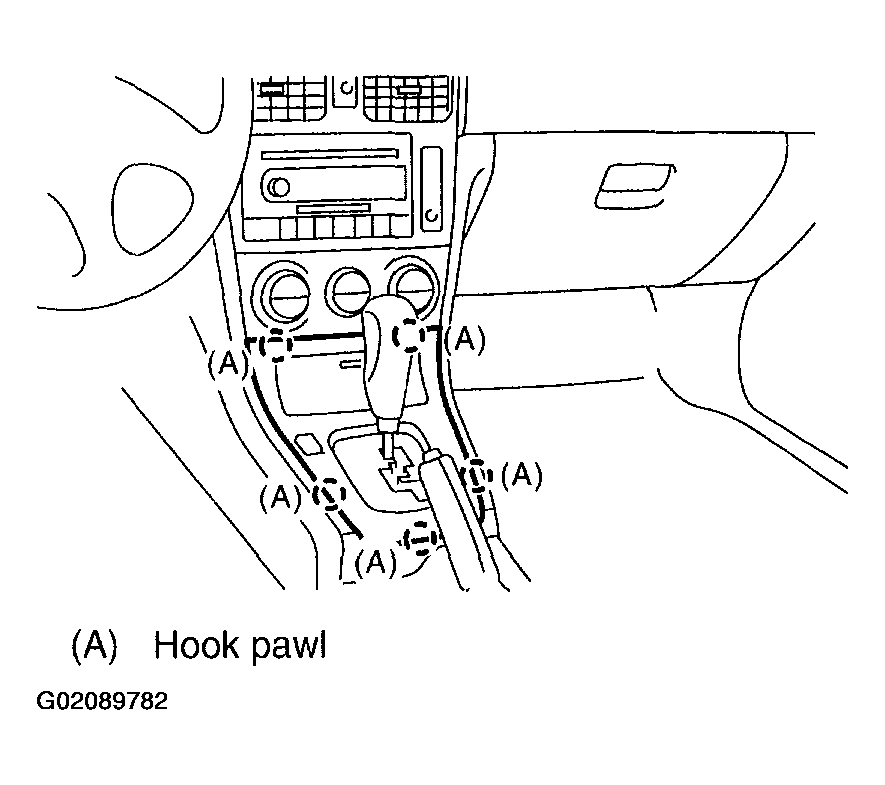

Fig 1: Identifying Console Front Cover Hook Pawl
Courtesy of SUBARU OF AMERICA, INC.
Remove the shift knob (MT model).
Loosen the screws to remove console cover.

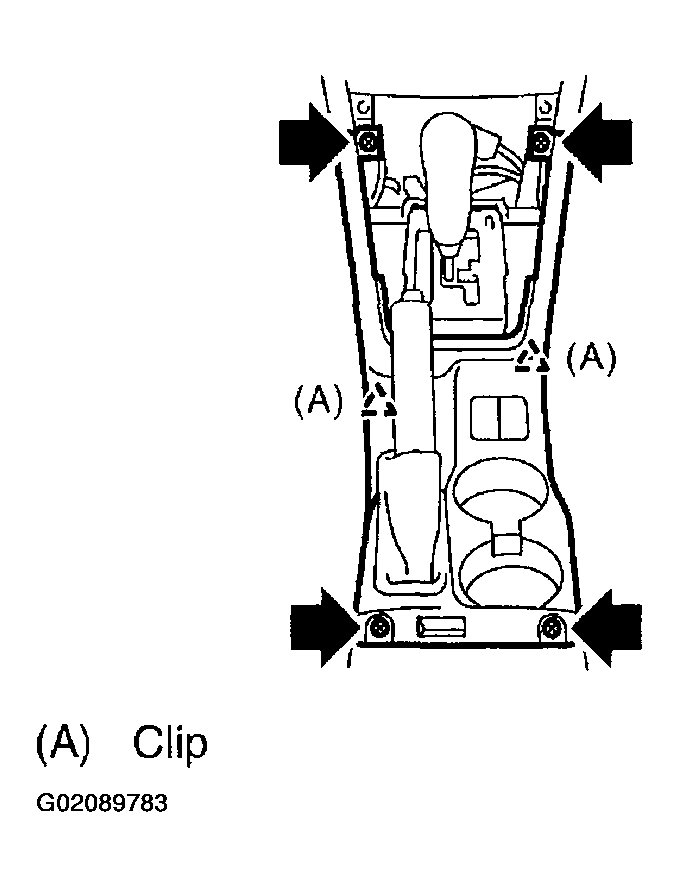

Fig 2: Removing Console Cover
Courtesy of SUBARU OF AMERICA, INC.
Loosen the screws.

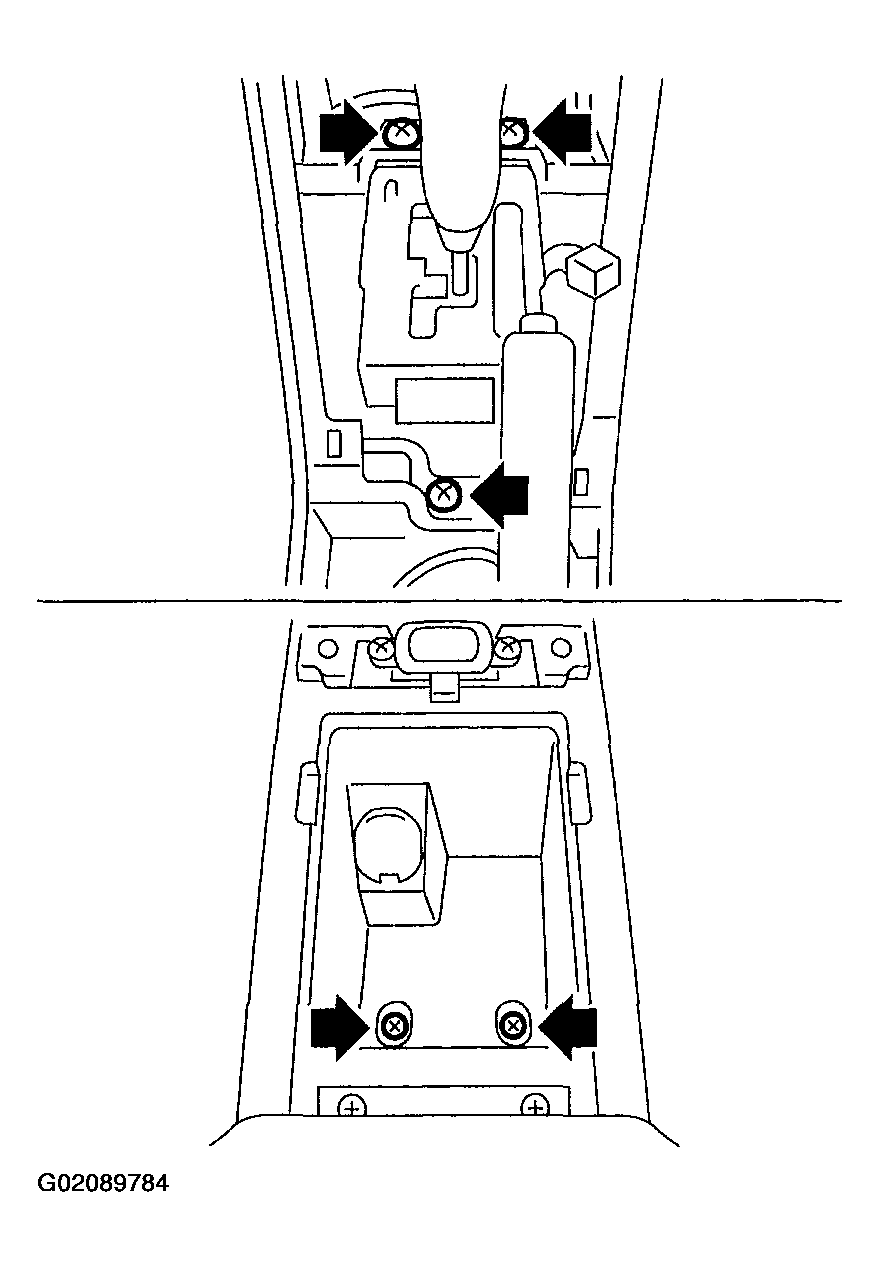

Fig 3: Loosening Screws
Courtesy of SUBARU OF AMERICA, INC.
Remove the hook pawl of console side panel to remove console box.

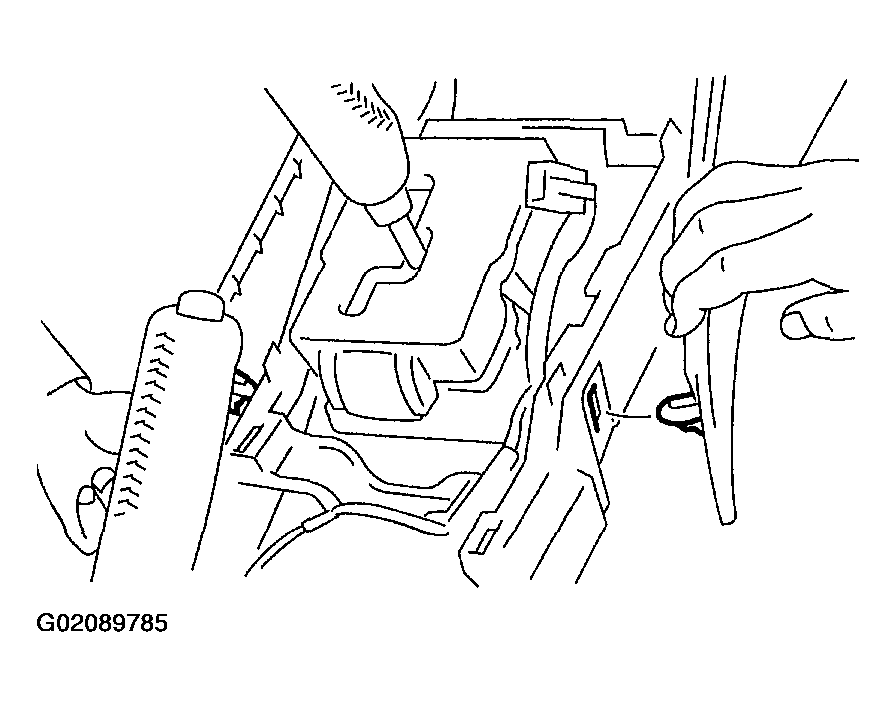

Fig 4: Removing Console Box
Courtesy of SUBARU OF AMERICA, INC.
