Security Horn: Inspection

WARNING: This page is about a different car, the 2003 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Connect the battery to the security horn terminal and case ground and make sure the horn sounds properly.

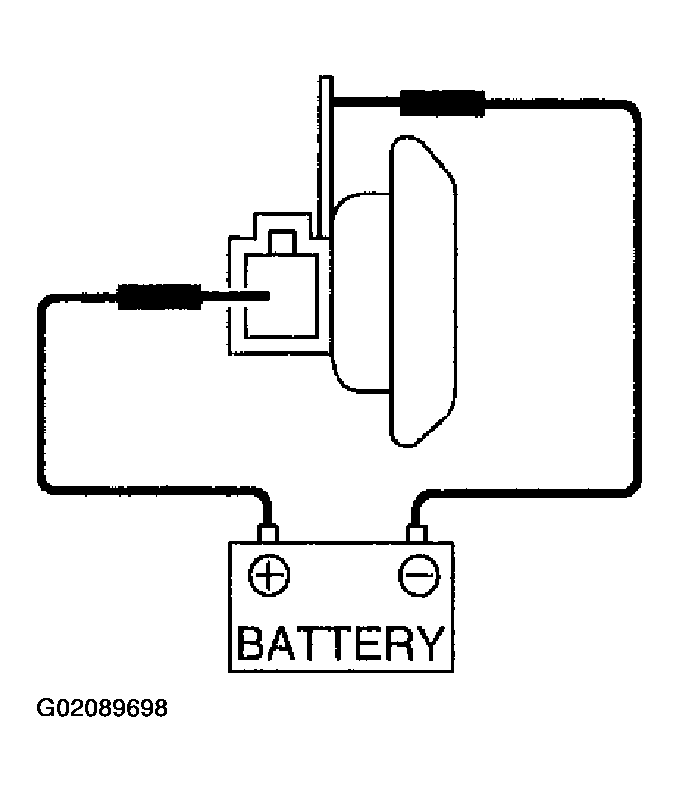

Fig 1: Inspecting Security Horn
G02089698Courtesy of SUBARU OF AMERICA, INC.

If NG, replace the security horn.
