Rear Inner Remote: Removal

WARNING: This page is about a different car, the 2003 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door trim. Refer to REMOVAL , Rear Door Trim.
  2. Remove the sealing cover. Refer to REMOVAL , Rear Sealing Cover.
  3. Remove a screw and two cables.
  4. Remove the inner remote.

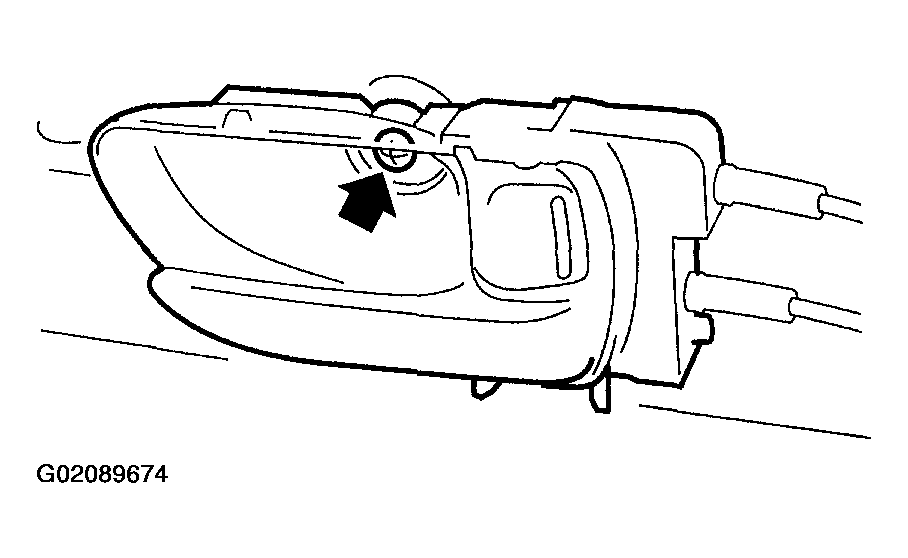

    Fig 1: Removing Rear Inner Remote
    G02089674Courtesy of SUBARU OF AMERICA, INC.
