Front Outer Handle: Removal

WARNING: This page is about a different car, the 2003 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim. Refer to REMOVAL , Front Door Trim.
    CAUTION: Do not use excessive force to remove the door panel. This will deform it.
  2. Remove the sealing cover. Refer to REMOVAL , Front Sealing Cover.
  3. Remove the front inner remote. Refer to REMOVAL , Front Inner Remote.
  4. Disconnect the cable from cable holder to make cable move freely.
  5. Remove two bolts and rod clamp, and then remove the front outer handle.
    NOTE: The rear bolt can be removed from service hole (A) of inner panel by adjusting the glass position.

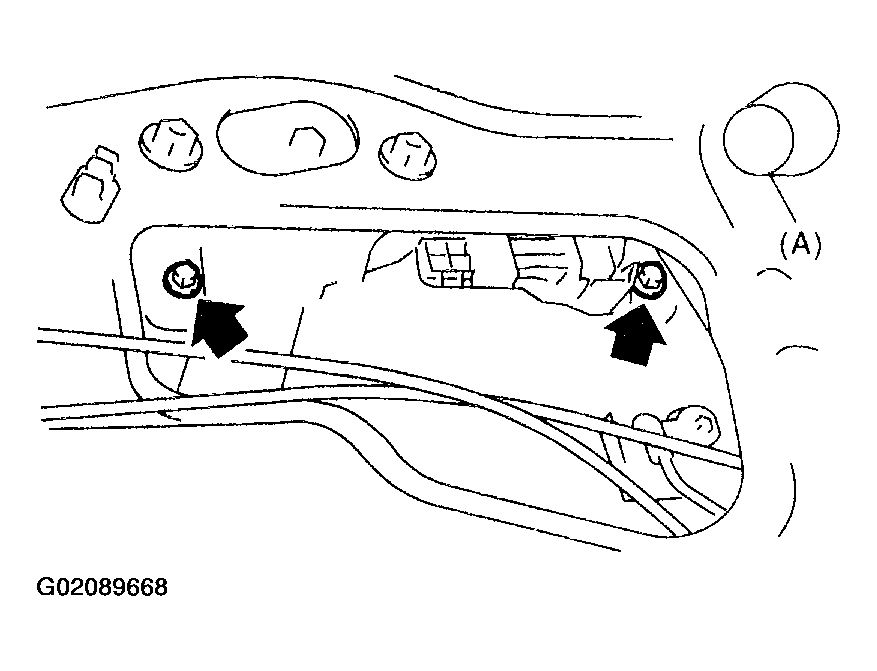

    Fig 1: Removing Service Hole Bolt
    G02089668Courtesy of SUBARU OF AMERICA, INC.
