Rear Regulator and Motor Assembly: Removal

Remove door trim. Refer to REMOVAL , Rear Door Trim.
Remove sealing cover. Refer to REMOVAL , Rear Sealing Cover.
Remove door glass. Refer to REMOVAL , Rear Door Glass.
Secure bolts using screwdriver to remove front sash adjusting nut.

Fig 1: Securing Bolts Using Screwdriver
Courtesy of SUBARU OF AMERICA, INC.
Remove front sash.
Disconnect electrical connector.
Loosen four bolts and two nuts to remove regulator assembly.

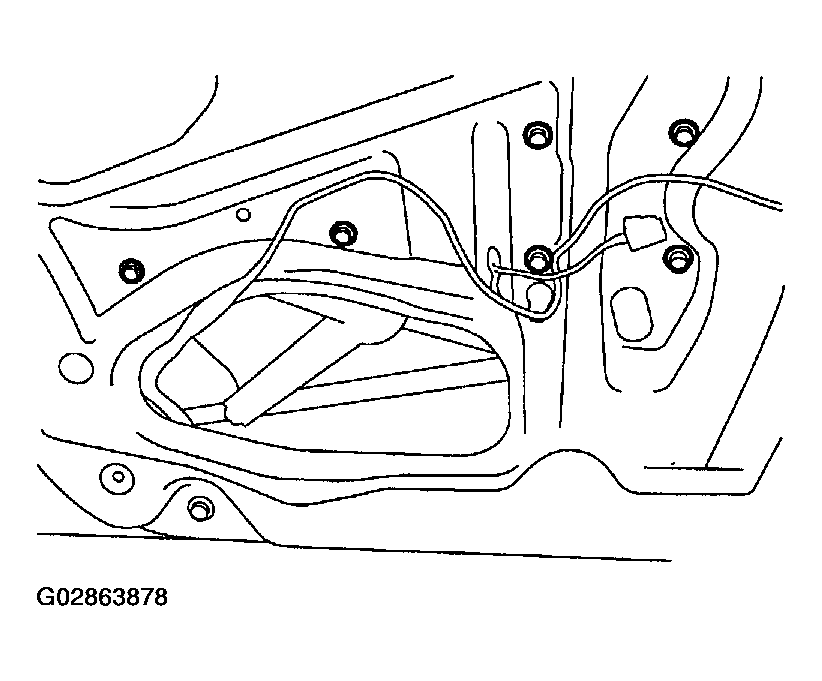

Fig 2: Loosening Bolts & Nuts To Remove Regulator Assembly
Courtesy of SUBARU OF AMERICA, INC.
Loosen screws to remove motor assembly.

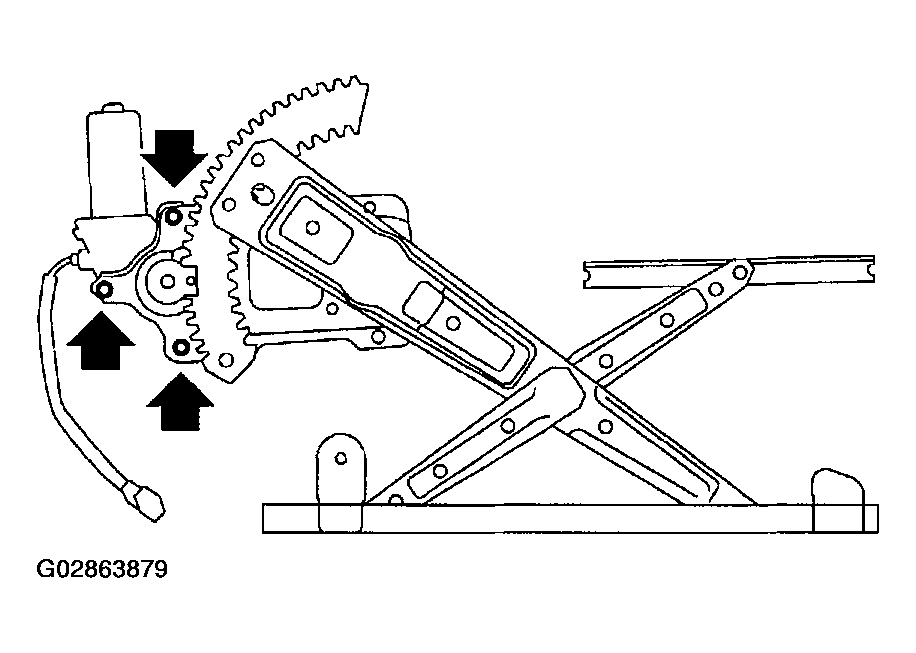

Fig 3: Loosening Screws To Remove Motor Assembly
Courtesy of SUBARU OF AMERICA, INC.
