Ambient Sensor

WARNING: This page is about a different car, the 2002 Subaru Outback and 2002 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect ground cable from battery. Disconnect ambient sensor connector. Remove ambient sensor from radiator lower panel. See Fig 1 . Reinstall in reverse order of removal procedure.

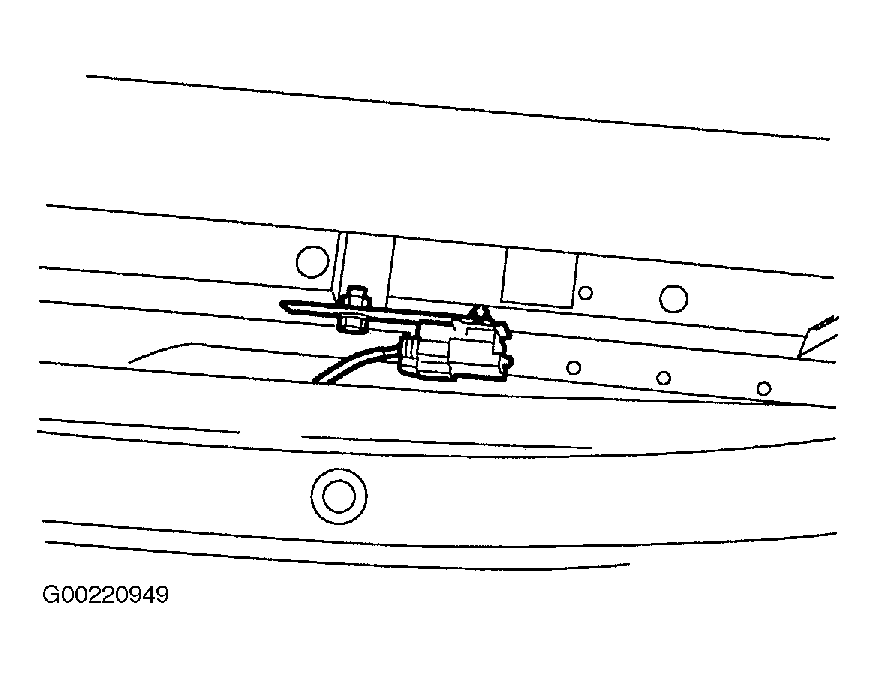

Fig 1: Identifying Ambient Sensor (Legacy & Outback 2002)
G00220949Courtesy of SUBARU OF AMERICA, INC.
